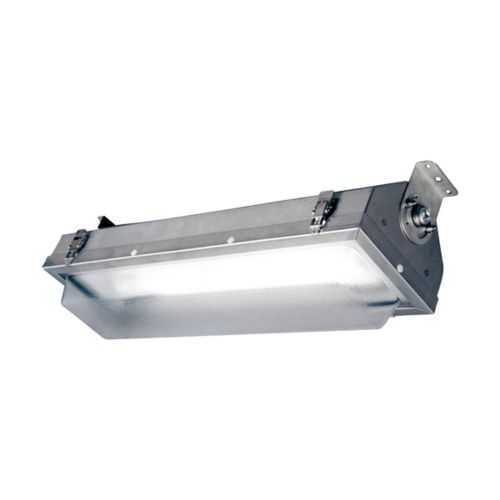

Eaton APSD42871EM1WT Linear Fluorescent Fixture - IP66

Part Number: APSD42871EM1WT
Manufacturer
Eaton
Part number
APSD42871EM1WT

Quick Summary

Eaton APSD42871EM1WT is a linear fluorescent fixture for hazardous locations. In demanding facilities, downtime and maintenance costs rise when lighting fails to meet harsh-environment standards. It carries NEC/CEC compliance, Hazardous/Classified Locations area classification, and protections like IP66 and NEMA 4X to withstand washdowns and corrosive atmospheres. Designed for surface wall/ceiling mounting with a 4 ft, 2-lamp configuration and 48W of power, it delivers reliable illumination while reducing total cost of ownership. The unit also features an emergency battery back-up ballast and a test switch, helping facilities maintain critical lighting during outages and improve safety and uptime in challenging environments.

Product Information

Extended Description

APSD42871EM1WT Eaton: Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluor,3/4" entry,4 ft,Drop,Acrylic lens,T12HO RDC,304 SS,2-lamp,battery,1 lamp,277V max,test switch,dual safety cable attachment,multi-point term block,Surface wall/ceiling,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture
Catalog Number
APSD42871EM1WT
UPC
662276496323
Product Length/Depth
55.5 in
Product Height
9 in
Product Width
9.75 in
Product Weight
34 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Drop
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Surface wall/ceiling
Entry size
3/4"
Wattage
48W
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, test switch, dual safety cable attachment points, multi-point terminal block
Feature: Hazardous area enclosure rated to IP66 and NEMA 4X. Business Impact: Delivers dependable protection against dust, moisture, and chemicals, extending fixture life in chemical plants and offshore facilities. Application: Ideal for washdown zones and rugged industrial spaces where downtime is costly. Feature: 4 ft, 2-lamp configuration at 48W. Business Impact: Provides strong, uniform illumination with lower energy use compared to older lighting, reducing operating costs in manufacturing lines. Application: Suitable for long runs along production bays and assembly lines with 120-277 V supply. Feature: Fluorescent T12HO RDC lamps. Business Impact: Maintains compatibility with legacy fluorescent systems while offering reliable performance in hazardous settings. Application: Retrofit projects in facilities that require certified fluorescent lighting without complete rewire. Feature: Surface wall/ceiling mounting with 3/4" entry and acrylic drop lens. Business Impact: Simplifies installation and maintenance, lowering labor costs and downtime. Application: Common in process areas, control rooms, and exterior-adjacent corridors. Feature: Emergency battery back-up ballast and test switch. Business Impact: Ensures illumination during power outages, supporting safety compliance and critical process continuity. Application: Essential for emergency egress lighting and mission-critical zones in hazardous environments. Feature: 304 stainless steel body and 304-grade materials. Business Impact: Excellent corrosion resistance for marine, petrochemical, and food-processing environments. Application: Washdown-ready fixtures in food & beverage plants and ports. Feature: 120-277 VAC, 50/60 Hz operation. Business Impact: Flexible electrical compatibility reduces stocking needs and speeds up deployment. Application: Universal utility in mixed-voltage facilities, minimizing electrical redesigns during installation.

Get a Quick Quote for a Eaton APSD42871EM1WT

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton APSD42871EM1WT? Enquire Now

FAQs

The APSD42871EM1WT is designed for surface wall or ceiling mounting, offering straightforward installation with a 3/4" entry and a drop acrylic lens for extended protection in harsh environments.
Yes. It is rated for Hazardous/Classified Locations with NEC/CEC compliance, Hazardous Area area classification, and protective features like IP66 and NEMA 4X, making it appropriate for industrial and chemical processing settings.
It uses a 4 ft, 2-lamp, 48W fluorescent setup (T12HO RDC) with a voltage range of 120-277 VAC and 50/60 Hz, suitable for standard industrial power distributions.
Key certifications include NEC/CEC compliance, IP66 ingress protection, NEMA 4X enclosure rating, and Hazardous/Classified Locations area classification, supporting safe operation in demanding environments.
Yes. The unit includes an emergency battery back-up ballast and a test switch, along with dual safety cable attachment points and a multi-point terminal block to streamline maintenance and reliability during outages.
