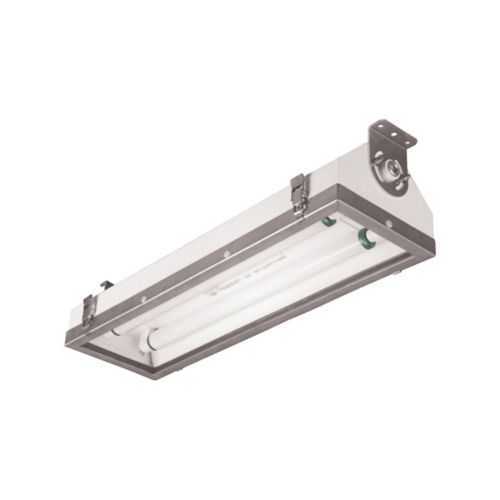

Eaton ARA42172L Light Fixture - IP66
Part Number: ARA42172L
Quick Summary
ARA42172L light fixture from Eaton delivers rugged linear fluorescent illumination for harsh industrial spaces, including plants, warehouses, and outdoor facilities. Rugged environments demand reliable fixtures to minimize maintenance downtime and exposure to dust, moisture, or impact. It meets IP66 ingress protection, NEMA 4 enclosure, and NEC/CEC compliance, ensuring safe operation in ordinary locations. Designed for easy maintenance and scalable installation, it supports 2-lamp, 4 ft configurations for predictable procurement and extended service life. Lamps are included, and the pendant entry enhances mounting flexibility for retrofit projects. This combination translates into lower total cost of ownership for industrial facilities and improved uptime.
Product Information
Extended Description
ARA42172L Eaton: Eaton’s Crouse-Hinds series Pauluhn AllPro ARA linear fluorescent light fixture,3/4" entry ,50/60 Hz,4 ft lamp,Fluorescent,Flat,Polycarbonate lens,T8 bi-pin,Aluminum,2-lamp,Lamps included,Pendant,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro ARA linear fluorescent light fixture
Catalog Number
ARA42172L
UPC
662276420663
Product Length/Depth
55.5 in
Product Height
6 in
Product Width
9.75 in
Product Weight
23 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Flat
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Entry size
3/4"
Wattage
32W
Material
Aluminum
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn AllPro Industrial Linear Fluorescent catalog page
IF LBL1518 - Pauluhn AllPro Linear Fluorescent - Flat Lens, Compact Fixture
IF LBL1518 - Pauluhn AllPro Linear Fluorescent - Flat Lens, Compact Fixture
Eaton Specification Sheet - ARA42172L
Two-lamp 4 ft fluorescent configuration with 32W lamps included delivers consistent, high-quality illumination while keeping energy use predictable. Business impact: standardized lighting reduces stocking complexity and accelerates maintenance planning, enabling faster line start-ups in manufacturing floors and warehouses. Application: ideal for retrofit projects or new installations in industrial plants where reliability and service life matter. IP66 ingress protection and a NEMA 4 enclosure shield the fixture from dust and water ingress, lowering corrosion risk and minimizing unplanned service calls in washdown zones and damp environments. This protection translates to longer intervals between maintenance cycles and lower life-cycle costs. Aluminum housing with a flat polycarbonate lens provides rugged durability and impact resistance, reducing replacement frequency in high-traffic areas and harsh conditions. Lamps included further shorten project lead times by avoiding separate procurement steps, while the 3/4 inch entry and pendant mounting offer installation flexibility for varying ceiling heights and mounting orientations. The fixture operates on 120–277 VAC at 50/60 Hz, supporting global or multi-site deployments with a single product family, simplifying electrical design and reducing spare part inventories. In practice, the AllPro ARA42172L delivers predictable performance in ordinary locations, with easy installation, reliable operation, and a clear path to lower operating costs for facility managers and procurement teams.
Get a Quick Quote for a Eaton ARA42172L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ARA42172L?
Enquire Now
FAQs
ARA42172L is designed for ordinary/non-hazardous industrial locations. With IP66 ingress protection and a NEMA 4 enclosure, it performs reliably in spaces exposed to dust, moisture, or incidental washdowns, such as warehouses, production areas, and general manufacturing environments.
The fixture uses two 4 ft fluorescent lamps (T8 bi-pin) with a total wattage of 32W. Lamps are included in the package, and the unit is rated for 120–277 VAC operation at 50/60 Hz, simplifying procurement and installation.
Yes. The ARA42172L is designed for pendant installation and features a 3/4 inch entry to support flexible wiring and installation layouts, making retrofit and new-install projects faster and more adaptable to ceiling configurations.
The fixture carries NEC/CEC compliance, a NEMA 4 enclosure rating, and IP66 ingress protection, ensuring safe operation and compliance in ordinary locations while enabling use in washdown or damp environments.
Lamps are included, reducing stocking needs and lead times. The rugged aluminum housing and polycarbonate lens minimize replacement cycles in harsh environments, while IP66 and NEMA 4 protection lower maintenance frequency, contributing to lower total cost of ownership and higher plant uptime.
