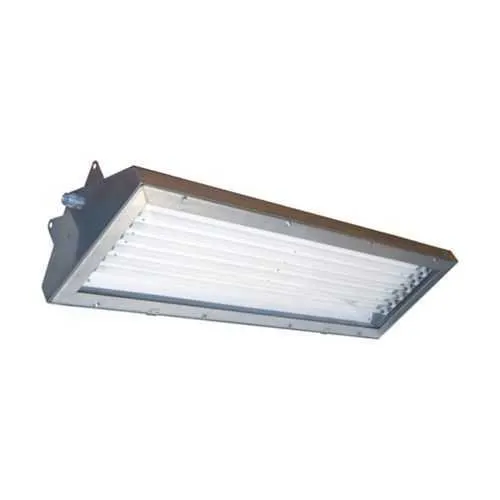

Eaton ASB43171 Linear Fluorescent Light Fixture - IP66
Part Number: ASB43171
Quick Summary
The Eaton ASB43171 linear fluorescent light fixture delivers durable, high-output illumination for industrial facilities. This robust solution helps reduce frequent maintenance downtimes by resisting corrosion and wash-down exposure. Built to NEC/CEC standards with NEMA 4X and IP66 ratings, it thrives in ordinary/non-hazardous locations while offering reliable protection against dust and water ingress. By combining a 304 stainless steel housing, acrylic lens, and a through-feed design with (2) NPT hubs, the ASB43171 supports easy installation and long service life, minimizing total cost of ownership for aftermarket retrofits or new builds. Suitable for 4 ft lamp configurations and 32W T8 lighting, it aligns with utility and compliance goals while delivering consistent performance.
Product Information
Extended Description
ASB43171 Eaton: Eaton Crouse-Hinds series Pauluhn Apex ASB linear fluorescent light fixture,1/2" (2) NPT hubs,50/60 Hz,4 ft lamp,Fluorescent,Acrylic lens,T8 bi-pin,304 stainless steel,3-lamp,Through feed,Bolted door,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Apex ASB linear fluorescent light fixture
Catalog Number
ASB43171
UPC
662276389311
Product Length/Depth
50.59 in
Product Height
6.53 in
Product Width
15.72 in
Product Weight
46 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Bolted door
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
3-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Entry size
1/2"
Entry type
(2) NPT hubs
Style
Through feed
Lens material
Acrylic
Wattage
32W
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Apex Industrial Linear Fluorescent catalog page
IF LBL1404 - Pauluhn Apex Linear Fluorescent
Eaton Specification Sheet - ASB43171
Feature: 304 stainless steel housing with IP66 and NEMA 4X protection → Business Impact: Offers wash-down resilience and corrosion resistance to extend fixture life in challenging environments → Application: Ideal for manufacturing floors, warehouses, and processing areas where regular cleaning is required. Long-tail terms: wash-down lighting, stainless steel enclosure, corrosion-resistant industrial lighting. Feature: Through-feed design with two 1/2 inch NPT hubs and a bolted door → Business Impact: Simplifies wiring and maintenance access, reducing installation time and service interruptions → Application: Overhead mounting in production lines and mezzanines. Long-tail terms: through-feed lighting, bolted-door fixture, easy installation. Feature: 4 ft lamp length with 3-lamp configuration using 32W fluorescent T8 bi-pin lamps → Business Impact: Delivers reliable, energy-efficient illumination with broad coverage and consistent color rendering → Application: General industrial lighting across work cells and assembly areas. Long-tail terms: 4 ft T8 lamp, 32W fluorescent, HID replacement alternative. Feature: Acrylic lens and 304 stainless steel construction → Business Impact: Maintains light quality under harsh wash-down cycles while resisting impact and chemical exposure → Application: Food & beverage zones, pharmaceutical processing, and clean manufacturing spaces. Long-tail terms: acrylic lens, impact-resistant cover, chemical-resistant lighting. Feature: NEC/CEC compliance with Ordinary/Non-Hazardous Locations rating and IP66/NEMA 4X → Business Impact: Ensures regulatory alignment and safety in compliant facilities, reducing audit risk → Application: Facilities requiring non-hazardous area compliance and rugged outdoor-adjacent spaces.
Get a Quick Quote for a Eaton ASB43171
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ASB43171?
Enquire Now
FAQs
The ASB43171 uses a 304 stainless steel housing with IP66 and NEMA 4X protection and a bolted door, enabling easy access for quick maintenance while resisting corrosion and wash-down chemicals. This combination reduces downtime and replacement frequency in production and processing areas.
Yes. The fixture is rated for 120–277 VAC at 50/60 Hz, designed for 4 ft T8 bi-pin lamps, and delivers 32 W of lighting power, making it compatible with common industrial electrical distributions.
The ASB43171 features a through-feed design with (2) 1/2" NPT hubs and a bolted door, enabling flexible wiring routes and straightforward, secure mounting in overhead or side-wall configurations for 4 ft lamp lengths.
It carries NEC/CEC compliance for ordinary locations, a NEMA 4X enclosure, and IP66 ingress protection, ensuring suitability for non-hazardous environments and demanding wash-down applications.
Durable stainless steel housing, simplified maintenance access, and robust protection against dust and water ingress reduce downtime and replacement costs, contributing to lower total cost of ownership over the fixture’s life in manufacturing and logistics spaces.
