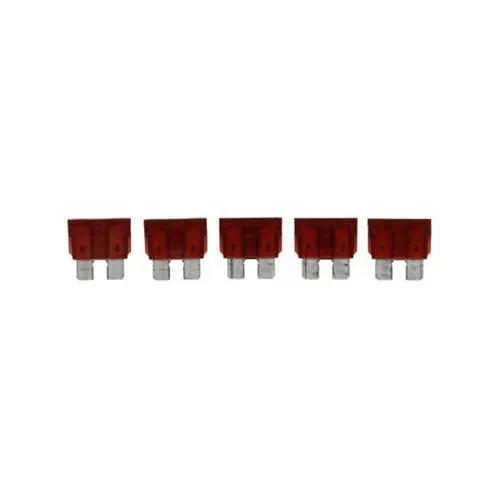

Eaton ATC-10 Blade Fuse - UL Listed, 32 Vdc Systems
Part Number: ATC-10
Quick Summary
Eaton ATC-10 Blade Fuse protects electrical circuits by interrupting fault currents in motor control and DC drive applications. Maintenance teams struggle with nuisance trips and downtime when selecting fuses that match system voltage and interrupt ratings. UL Listed and RoHS Compliant, this fuse aligns with safety and environmental requirements across industrial panels. Its compact red body and standard Bussmann form factor enable quick replacements in crowded control cabinets, reducing maintenance time. By choosing the ATC-10, engineers can streamline panel layouts, lower spare-part variety, and improve overall uptime and reliability in demanding manufacturing environments.
Product Information
Extended Description
ATC-10 Eaton: Motor fuse-link, medium voltage, 125 A, AC 3.6 kV, 76 x 359 mm, back-up, BS, with striker
Product Name
Eaton Bussmann series ATC blade fuse
Catalog Number
ATC-10
UPC
051712703246
Product Length/Depth
1.63 in
Product Height
0.38 in
Product Width
1.38 in
Product Weight
0.03 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
UL Listed
Amperage Rating
10 A
Interrupt rating
1 kAIC
Voltage rating
32 Vdc
Color
Red
Packaging type
Standard
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - ATC-10
High interrupt capability with 10 A rating and 1 kAIC means fast fault isolation, protecting downstream electronics and reducing arc energy exposure during faults. This is critical for motor controllers and DC drives, where reliable protection translates to less unplanned downtime and longer equipment life. UL Listed and RoHS Compliant design simplifies compliance reporting and reduces risk in regulated environments, enabling easier procurement and audit trails for industrial panels and process equipment. The compact footprint (1.63 in L x 1.38 in W x 0.38 in H) saves panel space and simplifies mounting in tight enclosures, while compatibility with standard ATC blade fuse holders allows rapid swaps during maintenance. The non-indicating fuse indicator reduces cost and avoids the need for extra status hardware, yet part-number clarity keeps replacement straightforward in deployed systems. Its red body and standard packaging support quick identification in pre-wired panels, accelerating installation and verification in busy production lines.
Get a Quick Quote for a Eaton ATC-10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ATC-10?
Enquire Now
FAQs
To install the ATC-10, power down the panel, locate a compatible ATC blade fuse holder, align the fuse terminals with the holder contacts, and press firmly until seated. Verify the circuit is within the 10 A and 32 Vdc specifications and replace only with UL Listed, RoHS compliant fuses to maintain protection integrity.
The ATC-10 is rated for 10 A with a 1 kAIC interrupt rating and a voltage rating of 32 Vdc. These specifications enable safe interruption of fault currents in DC control circuits and motor drive applications, helping protect upstream components and improve system reliability.
Yes. ATC-10 uses the standard Bussmann ATC blade fuse form factor, designed for quick replacement in compatible holders and control panels. This compatibility reduces downtime and simplifies spares management across multiple machines sharing ATC protection devices.
ATC-10 carries UL Listed certification and RoHS compliance. UL Listing confirms safety performance in electrical protection, while RoHS compliance ensures restricted use of hazardous substances, supporting regulatory and environmental requirements in industrial facilities.
ATC-10 is ideal for motor control circuits, DC drives, and control panels within manufacturing and process environments. Its 10 A, 32 Vdc rating, and compact form factor make it a reliable, space-efficient choice for protecting DC control circuitry and minimizing downtime during fuse replacement.
