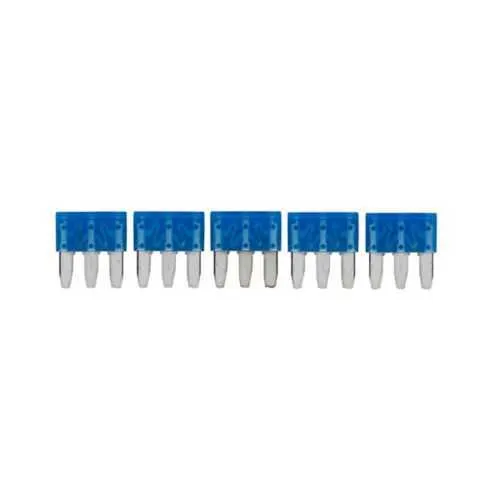

Eaton ATL-15 Blade Fuse - RoHS Compliant
Part Number: ATL-15
Quick Summary
The Eaton ATL-15 blade fuse is a compact protection device designed to provide fast, reliable overcurrent protection for control panels and industrial machines. Engineers often struggle with finding fuses that fit tight panel spaces without sacrificing selectivity or speed of disruption. This part is RoHS compliant and features a distinct blue color code for quick field identification, reducing mis-wiring during routine maintenance. The combination of its small footprint, defined 15 A rating, and Bussmann series heritage helps ensure easy stocking, faster replacements, and consistent protection across equipment fleets. By aligning with standard fuse holders and common panel layouts, the ATL-15 delivers predictable performance while minimizing downtime and inventory complexity.
Product Information
Extended Description
ATL-15 Eaton: Eaton Bussmann series ATL blade fuse, Color code blue, Blade fuse
Product Name
Eaton Bussmann series ATL blade fuse
Catalog Number
ATL-15
UPC
051712405096
Product Length/Depth
1.4 in
Product Height
1.6 in
Product Width
0.32 in
Product Weight
0.1 lb
Compliances
Contact factory RoHS Compliant
Quantity
5
Quantity
5
Special features
Color code blue
ATL-15~MICRO III BLADE FUSE - 3 Leg - 15 AMP
ATL-15~MICRO III BLADE FUSE - 3 Leg - 15 AMP
Bussmann series Fuseology
Eaton Specification Sheet - ATL-15
Compact footprint is a deliberate design feature: at 1.4 in long, 0.32 in wide, and 1.6 in high, it frees panel space and enables higher component density in control cabinets. This translates to lower enclosure size, easier heat management, and reduced installation costs in machine builds and OEM panels. The 15 A blade fuse rating provides clear overcurrent protection with fast response, helping protect motors, drives, and power distribution without nuisance trips during short surges. A blue color code improves field identification, reducing mis-wiring during maintenance and stock checks while supporting quick fault isolation in busy control rooms. RoHS compliance supports regulatory alignment across global supply chains, simplifying certification workflows and improving sustainability metrics for assemblies and OEMs. Pack quantity of five units per order enhances procurement efficiency and minimizes stockouts in manufacturing lines and service fleets. The blade fuse form factor is compatible with standard Bussmann ATL family holders, enabling straightforward replacement and consistent performance across equipment fleets. These attributes collectively support reduced downtime, lower maintenance costs, and improved uptime in industrial automation environments.
Get a Quick Quote for a Eaton ATL-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ATL-15?
Enquire Now
FAQs
The ATL-15 is designed for use with standard Bussmann blade fuse holders and panel protection circuits found in industrial automation. It carries a 15 A rating and aligns with the Eaton Bussmann ATL family for consistent sizing and interchangeability, enabling straightforward replacement during routine maintenance or after a fault event.
Power down the equipment, locate the fuse holder, and carefully remove the existing fuse. Insert a new ATL-15 blade fuse with a 15 A rating, ensuring the blue color code is visible for quick verification. Re-energize the circuit and confirm normal operation with the appropriate system checks to verify protection is restored.
Yes, the ATL-15 is RoHS compliant, meaning it adheres to restrictions on hazardous substances in electrical components. This helps simplify regulatory approvals, supports sustainability goals, and reduces risk in global deployments where RoHS requirements apply to assemblies and service parts.
Ideal for electrical protection in control panels, machine protection circuits, and power distribution blocks within automated systems. Its compact 1.4 in length and 0.32 in width make it suitable for space-constrained enclosures, while the 15 A rating provides reliable overcurrent protection for common automation loads and drives.
Using the ATL-15 supports faster maintenance with a small, easy-to-identify fuse due to its blue coding, reducing diagnostic time. The five-unit pack improves procurement efficiency and stock management, lowering downtime and spare-parts carrying costs across service fleets and OEM installations.
