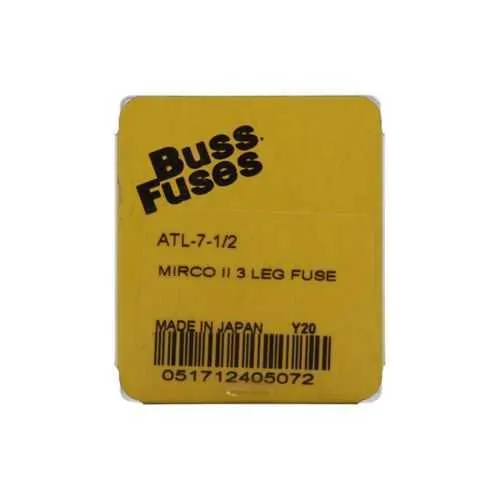

Eaton ATL-7-1/2 Blade Fuse - RoHS Compliant
Part Number: ATL-7-1/2
Quick Summary
The Eaton ATL-7-1/2 blade fuse provides overcurrent protection for low-voltage circuits in industrial control panels. Mismatched fuses and hard-to-identify components can lead to unexpected downtime and costly repairs, but standardization and easy replacement mitigate these risks. RoHS compliance and the brown color code enhance environmental responsibly and quick field identification, while the product’s catalog precision supports streamlined procurement. With a compact footprint and a predictable 5-pack quantity, this fuse helps maintain consistent stocking and faster maintenance workflows for electrical protection and circuit control applications.
Product Information
Extended Description
ATL-7-1/2 Eaton: Eaton Bussmann series ATL blade fuse, Color code brown, Blade fuse
Product Name
Eaton Bussmann series ATL blade fuse
Catalog Number
ATL-7-1/2
UPC
051712405072
Product Length/Depth
1.4 in
Product Height
1.6 in
Product Width
0.32 in
Product Weight
0.1 lb
Compliances
Contact factory RoHS Compliant
Quantity
5
Quantity
5
Special features
Color code brown
ATL-7-1/2~ATL-7-1-2~MICRO III BLADE FUSE - 3 Leg - 7.5 AMP
ATL-7-1/2~ATL-7-1-2~MICRO III BLADE FUSE - 3 Leg - 7.5 AMP
Bussmann series Fuseology
Eaton Specification Sheet - ATL-7-1/2
Feature: Compact form factor with dimensions of 1.4 in length, 1.6 in height, and 0.32 in width, plus a weight of 0.1 lb. Business Impact: Enables dense panel layouts and easier handling during installation, reducing enclosure size requirements and worker fatigue. Application: Ideal for space-constrained electrical protection in control cabinets and equipment housings. Feature: Brown color code for quick visual identification. Business Impact: Cuts maintenance time and minimizes error during replacements in busy production environments. Application: Useful in stock rooms and field service where rapid part recognition is critical. Feature: RoHS compliant construction. Business Impact: Supports regulatory compliance and sustainable sourcing across global deployments. Application: Fits automotive, industrial, and energy-management environments requiring restricted-material compliance. Feature: Catalog integrity with ATL-7-1/2 designation. Business Impact: Improves procurement accuracy and cross-referencing with Eaton Bussmann catalogs. Application: Streamlines ordering for large project teams and distributors. Feature: 5-unit quantity packaging. Business Impact: Predictable stocking levels reduce reorder cycles and simplify inventory planning. Application: Negotiated through standard kits for maintenance teams and OEMs. Feature: Dimensions and performance consistency referenced in the datasheet. Business Impact: Reduces design risk and ensures compatibility across product lines. Application: Easy specification verification during engineering reviews.
Get a Quick Quote for a Eaton ATL-7-1/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ATL-7-1/2?
Enquire Now
FAQs
To confirm compatibility, compare blade fuse dimensions to your holder’s specifications: 1.4 in long, 1.6 in high, and 0.32 in wide, with an approximate 0.1 lb weight. Use Eaton Bussmann series fuses for interchangeable mounting, and ensure the holder supports standard blade contacts of low‑voltage protection devices used in electrical protection and circuit control.
The ATL-7-1/2 is associated with a 7.5 amp class in the Micro III blade fuse family, designed for protecting low‑voltage circuits in control panels and distribution blocks. Always verify the exact rating on the official Eaton datasheet. This fuse is intended for reliable overcurrent protection in electrical protection and circuit control applications.
The brown color code provides rapid visual identification during maintenance and stocking, reducing the risk of installing the wrong amperage. In busy field environments, color coding accelerates part recognition, speeds replacements, and minimizes human error while supporting standardization across Eaton Bussmann blade fuse families.
Yes, the ATL-7-1/2 is RoHS compliant, meaning it adheres to restrictions on certain hazardous substances in electronic products. This supports regulatory compliance and safer, more sustainable deployments across automotive, industrial, and energy-management environments without sacrificing performance in electrical protection and circuit control.
Official documentation is available in Eaton’s downloads section for this model. Look for the Eaton Specification Sheet and the Bussmann catalogs referenced in the product data; assets include a full-line catalog PDF and a micro blade fuse spec sheet to verify fit, rating, and installation guidance.
