Eaton ATM-25 Blade Fuse - 25 A, 32 Vdc, 1 kAIC
Part Number: ATM-25
Quick Summary
The Eaton ATM-25 blade fuse protects DC circuits in industrial control and automotive applications. When panel space is tight and downtime is costly, you need a reliable, easy-to-replace solution. RoHS compliant; regional certifications such as CE or UL should be verified with the factory for your project. The blade fuse features a zinc fuse element, a colored plastic housing, and a clear color-code to simplify identification during maintenance. With a 25 A rating, 32 Vdc operation, and a 1 kAIC interrupt rating, this part supports fast diagnostics, reduces spare parts variety, and improves overall panel reliability.
Product Information
Extended Description

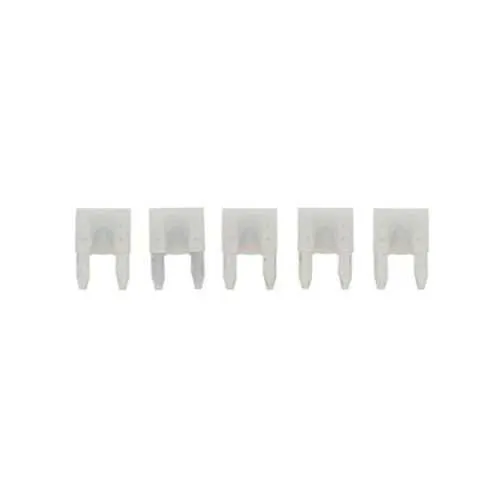

ATM-25 Eaton: Eaton Bussmann series ATM blade fuse 25 AMP (5 in TIN), 32 Vdc, Colored plastic housing, zinc fuse element,1 kAIC, Non Indicating.
Product Name
Eaton Bussmann series ATM blade fuse
Catalog Number
ATM-25
UPC
051712814669
Product Length/Depth
1.4 in
Product Height
1.58 in
Product Width
0.32 in
Product Weight
0.2 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
25 A
Interrupt rating
1 kAIC
Voltage rating
32 Vdc
Material
Zinc fuse element Colored plastic housing
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Color code clear
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - ATM-25
The ATM-25 blade fuse delivers a compact footprint that fits crowded electrical panels, enabling higher component density without compromising protection. This translates to faster instals and reduced cabinet wiring complexity, ultimately cutting installation time and labor costs. The 25 A rating at 32 Vdc covers typical DC power rails in industrial controllers, while the 1 kAIC interrupt rating provides robust short-circuit protection, minimizing equipment damage and downtime. The zinc fuse element combined with a colored plastic housing offers reliable fuse operation and easy visual verification, which speeds fault isolation and reduces maintenance errors. Clear, color-coded indicators support quick part identification on spare-bin rails, enhancing inventory control and service response. RoHS compliance and standard packaging ensure broad supplier compatibility and easier procurement for recurring projects.
Get a Quick Quote for a Eaton ATM-25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ATM-25?
Enquire Now
FAQs
To install the ATM-25, first de-energize the circuit and verify compatibility with a standard fuse holder. Insert the fuse into the holder ensuring full contact with the blades, then re-energize and test the circuit. The 32 Vdc rating should be observed, and the 1 kAIC interrupt rating provides protection against short circuits. Use the color code to confirm correct part identification during maintenance.
Key specs include a 25 A amperage rating, 32 Vdc voltage rating, and a 1 kAIC interrupt rating. The fuse uses a zinc element in a colored plastic housing, with a 1.4 in length, 1.58 in height, and 0.32 in width. It is RoHS compliant and non-indicating, designed for DC protection in industrial or automotive environments.
Yes. The ATM-25 is designed for DC protection in automotive and industrial control applications, particularly on DC power rails up to 32 V. Its compact size, clear color coding, and robust 1 kAIC interrupt rating support reliable protection in tightly packed panels. Always verify that the fuse holder and wiring are compatible with the ATM-25 catalog number ATM-25.
The ATM-25 is RoHS compliant, which helps meet environmental and regulatory expectations. Regional certifications such as CE or UL should be confirmed with Eaton based on your project location and requirements, as availability can vary by region. Always consult the latest Eaton datasheet or speak with a representative to verify current certifications.
Using the ATM-25 can reduce maintenance time due to its color-coded housing, enabling quick fault identification and replacement. The 25 A/32 Vdc rating with a 1 kAIC interrupt capacity provides reliable overcurrent protection, lowering the risk of equipment damage and unscheduled downtime. Standard packaging and RoHS compliance also streamline procurement and lifecycle management.
