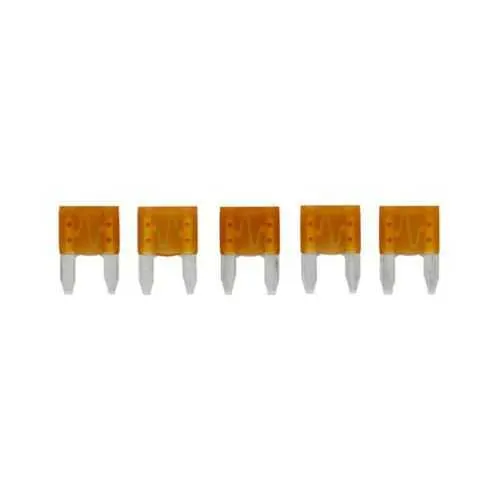

Eaton ATM-5 Blade Fuse - 32 Vdc, 5 A, 1 kAIC
Part Number: ATM-5
Quick Summary
ATM-5 blade fuse provides fast-acting overcurrent protection for 32 Vdc DC circuits in industrial control panels. When protection thresholds are misapplied or fuses fail to clear faults, downtime, and costly rewiring can grind productivity to a halt. RoHS compliant and rated for 1 kAIC, this fuse offers reliable DC protection while helping meet modern regulatory requirements and safety standards. Its tan color code and blade-end design simplify part selection, stocking, and field replacement, delivering lower maintenance costs and higher uptime for automation and electrical protection projects. Engineered for Eaton Bussmann series compatibility, it integrates with standard fuse holders for seamless panel-level protection.
Product Information
Extended Description
ATM-5 Eaton: Eaton Bussmann series ATM blade fuse, Color code tan, 32 Vdc, 5A, 1 kAIC, Non Indicating, Blade fuse, Blade end, Colored plastic housing, zinc fuse element
Product Name
Eaton Bussmann series ATM blade fuse
Catalog Number
ATM-5
UPC
051712814614
Product Length/Depth
1.38 in
Product Height
1.6 in
Product Width
0.44 in
Product Weight
0.3 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
5 A
Interrupt rating
1 kAIC
Voltage rating
32 Vdc
Material
Colored plastic housing Zinc fuse element
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Color code tan
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - ATM-5
With a 5 A amperage rating and 32 Vdc voltage rating, the ATM-5 delivers targeted overcurrent protection for DC circuits within industrial control panels. This capability reduces nuisance trips and guards critical drives, PLCs, and sensors from damage during startup transients. In real-world installations, precise amperage and voltage ratings translate to longer equipment life and fewer costly field repairs. The blade-end, standard form factor makes it instantly compatible with common fuse holders and wiring harnesses, enabling quick retrofits and lower spare-part inventory. Tan color code and colored housing aid rapid identification, reducing misselection during maintenance and service. RoHS compliance supports regulatory alignment across multiple regions, helping streamline procurement and compliance workflows. The compact yet robust design supports dense panel layouts without sacrificing reliability.
Get a Quick Quote for a Eaton ATM-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ATM-5?
Enquire Now
FAQs
The ATM-5 uses a standard blade-end format compatible with common fuse holders in DC control panels. Use a 32 Vdc supply rating and verify a 5 A protection level to match the load current. Ensure the fuse is properly seated in its holder to prevent intermittent contact and check the zinc fuse element for secure, full-depth insertion during installation.
ATM-5 provides 5 A operating amperage, 32 Vdc voltage rating, and a 1 kAIC interrupt rating. These specs define the fuse’s ability to interrupt overcurrent events without nuisance tripping under normal operation, supporting reliable protection for DC control circuitry, PLCs, and automation devices while minimizing voltage drop and heat in the circuit.
Yes, the ATM-5 uses a blade fuse form factor designed for standard blade holders, enabling fast swaps and straightforward stocking. Its blade-end design ensures broad compatibility with existing enclosures, reducing retrofit risk and enabling quick maintenance in space-constrained control panels.
The ATM-5 is RoHS compliant, aligning with regulations restricting hazardous substances in electrical components. While other certifications are not listed in the data, verify with Eaton for any regional compliance requirements (UL/CE) applicable to your facility and project scope to ensure full regulatory alignment.
By matching 5 A and 32 Vdc to typical DC loads, the ATM-5 reduces nuisance trips and protects critical equipment, lowering downtime. Its non-indicating design simplifies inventory and reduces false replacements, while its compatibility with existing holders minimizes labor during replacements, contributing to faster repairs and improved overall ROI in automation projects.
