Eaton ATR, 5/16X120 ZN All Threaded Rod - 400 lb
Part Number: ATR, 5/16X120 ZN
Quick Summary
Eaton ATR, 5/16X120 ZN all-threaded rod is the foundational support for electrical and mechanical installations. Engineers often struggle to secure long spans quickly without cross-threading, slippage, or corrosion concerns. Note: Certifications are listed as Not Applicable for this product, making material performance the primary differentiator. With a 120 in length, 0.32 in diameter, and a 400 lb load rating, this rod integrates seamlessly with B-Line strut channels and channel nuts to deliver dependable, cost-effective mounting solutions. Integrated with B-Line series channel nuts and strut hardware, it streamlines installations and reduces site labor. It supports safe, code-compliant mounting in industrial facilities, data centers, and manufacturing floors.
Product Information
Extended Description

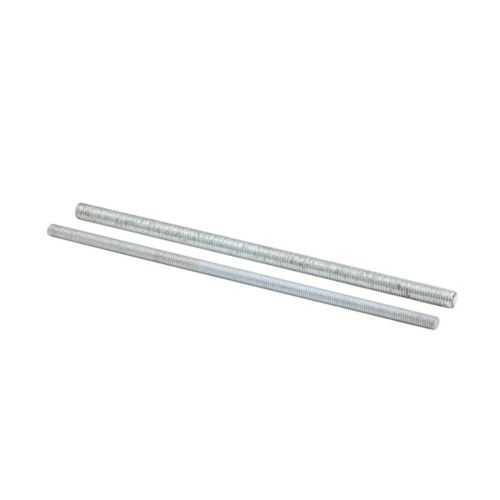

ATR, 5/16X120 ZN Eaton: Eaton B-Line series all threaded rod, 120" H x 0.32" D, Steel, 400 Lbs load cap, 18" thread length
Product Name
Eaton B-Line series all threaded rod
Catalog Number
ATR, 5/16X120 ZN
UPC
781011690250
Product Height
120 in
Product Diameter
0.32 in
Product Weight
8.9 lb
Certifications
Not Applicable
Thread length
18 in
Type
All threaded rod - 120" (3.05m) lengths
Load capacity
400 lb
Material
Steel
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - ATR, 5/16X120 ZN
Feature: 120-inch overall length with full-thread engagement provides flexible mounting options and straightforward field customization. Business Impact: this reduces labor time, minimizes misalignment risks, and lowers the need for onsite threading repairs, leading to faster project completion and fewer returns. Application: ideal for suspended channel systems in electrical rooms, data centers, manufacturing floors, and other spaces where long spans must be secured reliably. Feature: Zinc-plated steel finish (Zn) for durable corrosion resistance. Business Impact: extends service life, lowers maintenance cycles, and helps meet internal corrosion-control standards across typical indoor environments. Application: well-suited for interior installations with channel nuts and hardware in B-Line strut systems, racks, and support structures. Feature: 0.32-inch diameter and 8.9 lb weight provide rigidity with manageable handling. Business Impact: reduces shipping costs and simplifies on-site handling without compromising load distribution or structural integrity. Application: convenient for both vertical suspensions and horizontal runs in tight spaces or elevated ceilings. Feature: Load capacity of 400 lb demonstrates robust support for moderate equipment and hardware in channel-based mounts. Business Impact: enables safer installations with acceptable deflection margins, lowers risk of failure under typical loads, and improves maintenance predictability. Application: suitable for mounting luminaires, conduit, small machinery, and cross-members within Eaton's B-Line system. Feature: 18-inch thread length within the 120-inch rod provides extended engagement along mounting points. Business Impact: allows deeper engagement with channel nuts and more secure fastening in longer spans, reducing the need for additional hardware. Application: enhances performance in applications requiring longer thread contact, from ceiling-hung enclosures to overhead support frames. Feature: Compatibility with Eaton Channel Nuts and Hardware Catalog Section. Business Impact: streamlines procurement and reduces BOM complexity by aligning with existing Eaton catalogs and standard hardware families. Application: ideal for new-build or retrofit projects using the Channel Nuts and Hardware catalog infrastructure for consistent installation practices.
