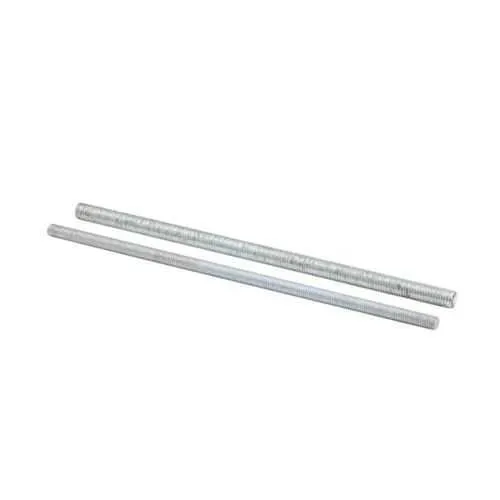

Eaton ATR, 5/8X120 HDG All Threaded Rod - 2160 lb
Part Number: ATR, 5/8X120 HDG
Quick Summary
Eaton ATR, 5/8X120 HDG all threaded rod is a robust steel fastener for suspending equipment in electrical and mechanical installations. In demanding environments, improper support can lead to misalignment, vibration, and downtime. Certification status is listed as Not Applicable, but consider system-level compliance with CE, SIL, and IP standards as applicable to your application. This rod integrates with Eaton B-Line strut systems to deliver dependable, scalable suspensions, while the 120 inch length, 0.625 inch diameter, and 2160 lb load rating support flexible, cost-efficient installations across data centers, manufacturing floors, and service spaces.
Product Information
Extended Description
ATR, 5/8X120 HDG Eaton: Eaton B-Line series all threaded rod, 120" H x 0.625" D, Steel, 2160 Lbs load, 11" thread length
Product Name
Eaton B-Line series all threaded rod
Catalog Number
ATR, 5/8X120 HDG
UPC
781011878900
Product Height
120 in
Product Diameter
0.625 in
Product Weight
8.9 lb
Certifications
Not Applicable
Special features
Used with (SC3228) hanger rod stiffener
Thread length
11 in
Type
All threaded rod - 120" (3.05m) lengths
Load capacity
2160 lb
Material
Steel
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - ATR, 5/8X120 HDG
Feature: 120 inch length and 0.625 inch diameter all-threaded rod provide long-span capability with full-thread engagement. Business Impact: Fewer joints, reduced installation time, and consistent nut seating improve reliability under vibration and dynamic loads. Application: Ideal for Eaton B-Line strut channel systems in electrical rooms, data centers, and mechanical spaces requiring neat, continuous runs. Feature: 2160 lb load rating and steel HDG finish. Business Impact: High load capacity supports heavy equipment and panel suspensions with corrosion resistance for damp environments. Application: Fits high-demand suspensions, such as lighting, conduit runs, and equipment racks. Feature: Material is steel with hot-dip galvanizing. Business Impact: The HDG coating delivers improved corrosion resistance and long service life in humid or industrial environments, reducing maintenance costs. Application: Suitable for challenging environments like manufacturing floors, outdoor installations, or spaces with cleaning chemicals. Feature: Compatibility with SC3228 hanger rod stiffener. Business Impact: Ensures stable, vibration-resistant installations with easy integration into existing SC-series hardware. Application: Use with Eaton channel nuts and hardware to streamline assembly. Feature: Availability of Eaton catalogs and specification sheets. Business Impact: Quick access to data ensures correct selection and compliant installations. Application: Refer to Channel Nuts and Hardware Catalog Section and the Eaton Specification Sheet for ATR, 5/8X120 HDG.
Get a Quick Quote for a Eaton ATR, 5/8X120 HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ATR, 5/8X120 HDG?
Enquire Now
FAQs
Yes. This rod is designed for use with Eaton B-Line strut channel systems and is compatible with SC3228 hanger rod stiffeners. It uses standard 5/8 inch hardware, with a 120 inch overall length and 11 inch thread engagement. For best results, pair with Eaton channel nuts, washers, and the appropriate nut types specified for your channel system.
The ATR 5/8X120 HDG rod carries a 2160 lb load rating. When planning suspensions, factor in dynamic loads, safety factors, and environmental conditions. Use proper hardware and attachment points, account for potential seismic or vibration loads, and verify that supporting structures and hardware are rated to exceed the expected load by your organization’s safety guidelines.
The rod is provided in a 120 in length with 11 in of threaded engagement. It can be trimmed on site to accommodate shorter runs; however, cutting reduces the available thread engagement. After trimming, use appropriate nuts and washers to maintain secure engagement, and ensure the remaining threaded portion remains adequate for safe suspension according to your installation standards.
The ATR rod is steel with a hot-dip galvanized finish. This provides enhanced corrosion resistance, extending service life in damp, humid, or industrial environments. Ideal for basements, data centers, and manufacturing floors where moisture and chemicals may be present, helping reduce maintenance costs and replacement frequency.
Documentation is available through Eaton’s online catalogs and specification sheets. Refer to the Channel Nuts and Hardware Catalog Section, the strut system catalog, and the Eaton Specification Sheet for ATR, 5/8X120 HDG for detailed dimensions, thread length, load ratings, and installation guidance. Download links are provided in the product data package.
