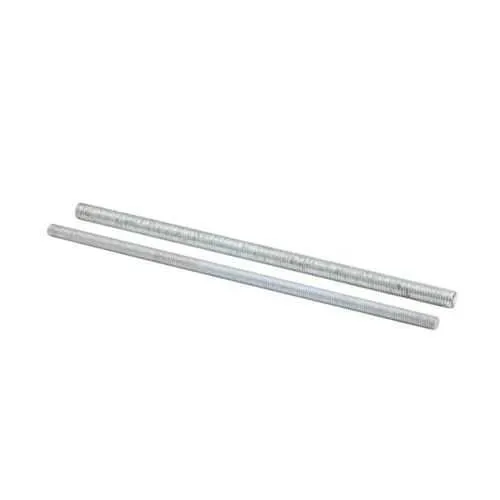

Eaton ATR 5/8X120 PLN All threaded rod - 2160 lb
Part Number: ATR, 5/8X120 PLN
Quick Summary
ATR 5/8X120 PLN all threaded rod from Eaton provides robust suspension for electrical and mechanical installations. A common project pain is mis-sizing or misalignment when setting long runs in tall or cramped spaces, delaying timelines. Certifications listed are Not Applicable for this item, so ensure NEC/UL compliance and project standards are met at the system level. Using the Eaton B-Line system with this rod delivers predictable performance and straightforward integration with SC3228 hanger hardware, streamlining installation. Its 120 inch length reduces field joints, while a 0.625 inch diameter supports substantial weight and sustains long-term vibration resistance. The 2160 lb load capacity helps design safer suspensions for heavy channel assemblies in industrial facilities.
Product Information
Extended Description
ATR, 5/8X120 PLN Eaton: Eaton B-Line series all threaded rod, 120" H x 0.625" D, Steel, 2160 Lbs load cap,11" thread length
Product Name
Eaton B-Line series all threaded rod
Catalog Number
ATR, 5/8X120 PLN
UPC
781011690540
Product Height
120 in
Product Diameter
0.625 in
Product Weight
8.9 lb
Certifications
Not Applicable
Special features
Used with (SC3228) hanger rod stiffener
Thread length
11 in
Type
All threaded rod - 120" (3.05m) lengths
Load capacity
2160 lb
Material
Steel
B-Line Safety Gratings Full Catalog
B-Line Safety Gratings Full Catalog
B-Line Safety Gratings Full Catalog
Eaton Specification Sheet - ATR, 5/8X120 PLN
Feature 0.625 inch diameter steel all-threaded rod → Business Impact Robust, high-strength support ready for long spans and heavy fixtures, reducing field assembly time and nonconformance risk → Application Ideal for suspending cable tray and mechanical systems in manufacturing facilities. Feature 120 inch length → Business Impact Fewer joints and faster runs in tall installations, improving erection speed and reliability → Application Tall ceilings and elevated equipment in process plants. Feature 11 inch thread length → Business Impact Enhanced engagement and field adjustability for precise leveling in strut systems → Application Fine-tuned suspensions with channel nuts and hardware. Feature 2160 lb load capacity → Business Impact Strong overhead support with ample safety margin, lowering intermediate supports and maintenance needs → Application Suspensions for heavy equipment or multiple service runs. Feature compatibility with SC3228 hanger rod stiffener → Business Impact Stabilized supports and reduced vibration, extending system life → Application B-Line channel systems requiring additional stiffness in overhead runs. Feature Material: Steel → Business Impact Durable, serviceable in standard industrial environments, supporting long service life → Application Indoor facilities with normal corrosion exposure. Feature 120 inch length for tall rack installations → Business Impact Simplified planning and fewer fabrication steps, accelerating project delivery → Application Large-scale electrical/mechanical installations.
Get a Quick Quote for a Eaton ATR, 5/8X120 PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ATR, 5/8X120 PLN?
Enquire Now
FAQs
To install ATR 5/8X120 PLN, align the rod within the B-Line strut channel, thread into the appropriate hardware, and position the SC3228 hanger rod stiffener as required. Use standard channel nuts and hardware to secure the rod at the desired height, then verify vertical alignment and load-bearing provisions. The 120 inch length minimizes joints and simplifies field assembly in tall or constrained spaces.
The ATR 5/8X120 PLN rod has a load capacity of 2160 pounds, providing strong overhead support for cable trays, lighting, and mechanical equipment. It is well-suited for suspending channel systems in manufacturing lines, data centers, and utility rooms where long spans and stable, adjustable suspensions are critical.
This catalog entry lists Certifications as Not Applicable. For regulatory requirements, ensure project-level compliance with NEC/UL guidelines and local standards, as applicable to your installation and environment. The rod’s performance specifications should be considered within the broader system design and safety plan.
Yes. The model ATR is designed to be used within Eaton B-Line systems and is compatible with the SC3228 hanger rod stiffener, which helps stabilize long runs and reduce vibration in overhead suspensions. This compatibility reduces field adjustments and improves overall system rigidity.
All-threaded rod provides continuous adjustment without the need for pre-cut sections or numerous couplings, enabling precise leveling and straightforward rework. For vertical suspensions, this translates into quicker installations, fewer joints that can loosen over time, and reliable maintenance during service life in industrial facilities.
