Eaton ATR, 5/8X120 YZN All Threaded Rod - 2160 lb
Part Number: ATR, 5/8X120 YZN
Quick Summary
ATR, 5/8X120 YZN is an all threaded rod for suspended support systems in industrial electrical installations. Designers often battle misalignment, inconsistent hardware, and insufficient load ratings on long-span runs. While this model lists Not Applicable for certifications, it leverages Eaton’s B-Line system compatibility to support fast, reliable installations when used with approved channel nuts, hangers, and stiffeners. This combination delivers strong performance with reduced installation complexity, helping projects stay on schedule and within budget. By emphasizing robust materials and standard B-Line components, it supports safe, scalable infrastructure growth while enabling quicker maintenance and future upgrades.
Product Information
Extended Description

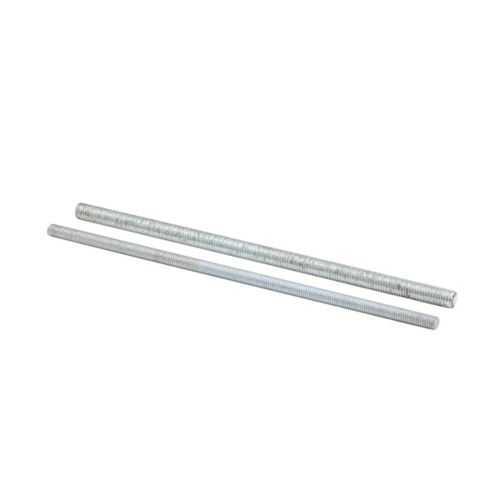

ATR, 5/8X120 YZN Eaton: Eaton B-Line series all threaded rod, 120" H x 0.625" D, Steel, 2160 Lb load cap, 11" thread length
Product Name
Eaton B-Line series all threaded rod
Catalog Number
ATR, 5/8X120 YZN
UPC
799038021964
Product Height
120 in
Product Diameter
0.625 in
Product Weight
8.9 lb
Certifications
Not Applicable
Special features
Used with (SC3228) hanger rod stiffener
Thread length
11 in
Type
All threaded rod - 120" (3.05m) lengths
Load capacity
2160 lb
Material
Steel
B-Line Series Strut Systems Catalog
B-Line Series Strut Systems Catalog
B-Line Series Strut Systems Catalog
Eaton Specification Sheet - ATR, 5/8X120 YZN
Feature: 120 inch overall length provides extended reach for high-ceiling installations. Business Impact: Reduces the number of hangers and splices needed, lowering installation time and total hardware cost. Application: Ideal for data centers, manufacturing floors, or large electrical rooms where long spans are required. Feature: 0.625 inch diameter all threaded rod strengthens load distribution along the run. Business Impact: Increases load-bearing capacity with fewer connection points, improving system reliability. Application: Suitable for heavy equipment supports and suspended ductwork in industrial plants. Feature: 11 inch thread length ensures deep engagement with nuts and couplings for secure assemblies. Business Impact: Enhances vibration resistance and reduces loosening under dynamic loads. Application: Critical in environments with HVAC and mechanical equipment movement. Feature: 2160 lb load capacity supports heavy-duty installations and code-compliant suspensions. Business Impact: Meets high‑demand requirements while enabling scalable future upgrades. Application: Used with SC3228 hanger rod stiffener and standard B-Line hardware for robust layouts. Feature: Steel material delivers durability and predictable performance in harsh environments. Business Impact: Delivers long service life with resistance to deformation under load. Application: Ideal for industrial settings requiring dependable, code-aligned support structures.
Get a Quick Quote for a Eaton ATR, 5/8X120 YZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ATR, 5/8X120 YZN?
Enquire Now
FAQs
ATR, 5/8X120 YZN is designed for use with Eaton B-Line strut channels, nuts, and fittings. It pairs with standard channel nuts and SC3228-compatible fixings to create secure, easily adjustable suspensions. Ensure correct hanger spacing and use approved hardware to maintain load ratings and code compliance.
The rod provides a 2160 lb load capacity. Verification should be performed within your project’s load calculations, considering dynamic factors, vibration, and the supported payload. Use proper mounting hardware, thread engagement (11 in), and inspection intervals to maintain this rating over time.
The specifications list Not Applicable for Certifications. For projects requiring CE, SIL, or IP certifications, confirm with your compliance team and consider supplementary components or assemblies that carry the necessary certifications. Always verify local codes and standards when designing critical suspensions.
Best for long-span suspension of heavy equipment, ductwork, and electrical conduits in data centers, manufacturing floors, and large electrical rooms. Its length and diameter support high load scenarios, and compatibility with SC3228 stiffeners improves rigidity for high-vibration environments.
Regular inspection of threaded engagement, nut tension, and hanger connections helps preserve load capacity. Using standard B-Line hardware reduces replacement cost and downtime. Over the life of a facility, reduced maintenance cycles and faster upgrades translate to lower total cost of ownership.
