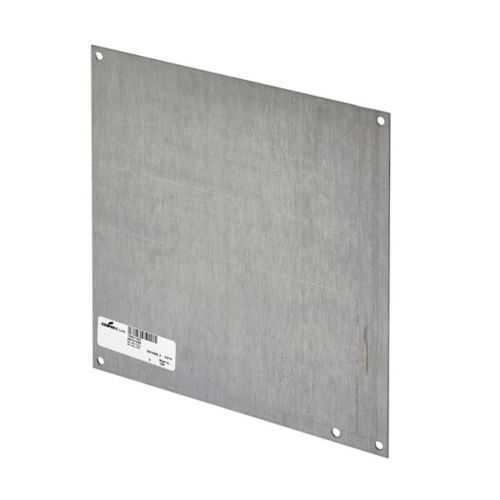

Eaton AW66AP Panel - 6x6 Enclosures, NEMA UL Listed
Part Number: AW66AP
Quick Summary
AW66AP Eaton panel accessories deliver durable, brushed aluminum panels for 6x6 enclosure applications. Design teams often struggle with compatibility, weight, and corrosion resistance in compact spaces. These parts carry NEMA and UL listings with CSA C22.2 compliance, supporting safe, regulatory-ready assemblies. By pairing with Eaton B-Line enclosures, you gain fast installation, predictable fit, and long-term cost efficiency for electrical infrastructure projects across manufacturing, data centers, and facilities maintenance. The aluminum construction reduces weight without compromising rigidity, and the brushed finish provides a professional, durable appearance in harsh environments. This product also complements a broad range of panel accessories for scalable, modular assemblies.
Product Information
Extended Description
AW66AP Eaton: Eaton B-Line series panels and panel accessories, Smooth brushed, Aluminum, Panels and panel accessories, Fits 6" X 6" enclosures, JIC and small panels
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW66AP
UPC
782051703627
Product Length/Depth
4.87 in
Product Height
4.87 in
Product Width
0.063 in
Product Weight
0.188 lb
Certifications
NEMA UL Listed CSA C22.2.
Material
Aluminum
Finish color
Brushed
Style
Panel
Special features
Fits 6" X 6" enclosures
Product Category
Panels & panel accessories
Type
Gray
Brushed aluminum construction reduces weight and improves corrosion resistance, enabling easier handling during installation and maintaining appearance in rugged environments. This translates to lower labor time and fewer replacements, particularly in high-traffic panel areas. The exact form factor supports fast, drop-in compatibility with Eaton B-Line enclosures, with a footprint of 4.87 in length and height and a slim 0.063 in width; at 0.188 lb, it minimizes weight in dense panel racks, reducing crane and crew load. Certifications including NEMA UL Listed CSA C22.2 provide regulatory assurance, simplifying procurement and audits for regulated facilities. As a panel accessory within the B-Line family, AW66AP enables modular, scalable configurations, aiding standardization across multi-line installations and reducing customization costs. The UPC 782051703627 and catalog AW66AP streamline sourcing, improving procurement cycle times and overall project ROI.
Get a Quick Quote for a Eaton AW66AP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW66AP?
Enquire Now
FAQs
AW66AP is specifically designed to fit 6x6 enclosures within the Eaton B-Line family. It uses a compact 4.87 in footprint with a slim 0.063 in width and a lightweight 0.188 lb weight, ensuring straightforward, drop-in compatibility for panel assemblies in space-constrained installations.
Key specs include Catalog Number AW66AP, Material Aluminum, Finish Brushed, Product Length/Depth 4.87 in, Product Height 4.87 in, Product Width 0.063 in, Product Weight 0.188 lb, and Certifications NEMA UL Listed CSA C22.2, with UPC 782051703627.
Yes. AW66AP carries NEMA and UL listings and CSA C22.2 compliance, which supports regulatory-ready panel assemblies and simplifies audits in regulated industries such as manufacturing, data centers, and facility automation.
Consider the 6x6 enclosure compatibility, the aluminum weight and dimensions for handling, and ensure alignment with Eaton B-Line panel accessories. The brushed finish provides durability and aesthetic consistency across modular panel configurations, reducing rework during upgrades or expansions.
AW66AP delivers faster installation, standardized panel aesthetics, and regulatory compliance, which collectively reduce project lead times, maintenance downtime, and total cost of ownership in multi-site automation deployments.
