Eaton AW66PP NEMA Flanged Panel Assemblies - UL Listed
Part Number: AW66PP
Quick Summary
AW66PP is Eaton’s NEMA flanged panel accessory that fits 6x6 enclosures for industrial electrical panels. It helps standardize interior layouts, streamline retrofits, and reduce field rework during panel assembly. The product is UL Listed, CSA C22.2 certified, and compatible with NEMA enclosure standards, ensuring safety and performance in rugged environments. Constructed from steel with a white powder coat, AW66PP delivers durability while enabling quick integration with Eaton B-Line panels and accessories. Its compact 4.875 in depth and 4.87 in height keep enclosure profiles slim and wiring routes clear, supporting efficient installation and lower lifecycle costs. This makes AW66PP a practical choice for panel builders and maintenance teams seeking repeatable outcomes.
Product Information
Extended Description

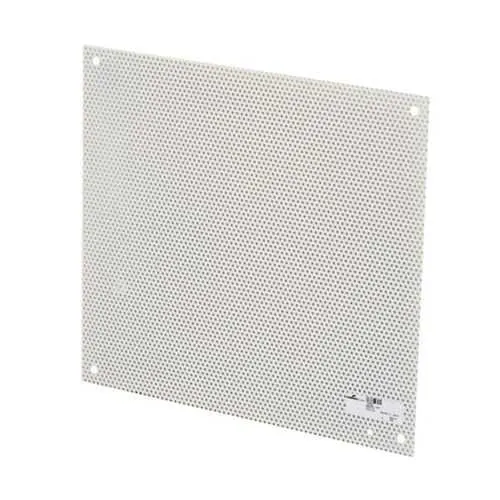

AW66PP Eaton: Eaton B-Line series panels and panel accessories, White powder coated, Steel, Panels and panel accessories, Fits 6" X 6" enclosures, JIC flat perforated panel
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW66PP
UPC
782051445855
Product Length/Depth
4.875 in
Product Height
4.87 in
Product Width
0.053 in
Product Weight
0.376 lb
Certifications
NEMA CSA C22.2. UL Listed
Material
Steel
Finish color
White powder coated
Special features
Fits 6" X 6" enclosures
Product Category
Panels & panel accessories
Type
NEMA flanged panels
Feature: Fits 6x6 enclosures with a NEMA flange design, delivering a consistent mounting plane. Business Impact: Standardized panel interiors simplify sourcing, reduce misfits, and speed assembly in manufacturing lines. Application: Ideal for new cabinet builds and panel retrofits in machine building, data centers, and industrial automation facilities. AW66PP’s steel construction with a white powder coat provides corrosion resistance and long-term durability, reducing maintenance cycles and replacement costs in harsh environments. This also supports easier cleaning and lower sealing failure risk in dusty or humid facilities. The UL Listed, CSA C22.2 certifications, and NEMA compatibility ensure compliance across regional standards, helping you pass audits with minimal documentation and traceability. Compatibility with Eaton B-Line series panels and the 6x6 enclosure ecosystem accelerates pre-wiring, diagnostics, and future add-ons, while preserving mounting patterns and tooling across maintenance projects. Dimensions are precisely controlled at 4.875 in depth, 4.87 in height, and 0.053 in width, with a weight of 0.376 lb, enabling compact integration without compromising access to wiring and components. In practice, installers benefit from repeatable mounting spacings and predictable clearances, which reduces installation time and operator fatigue in busy production lines. Industry insight shows that using standardized, rated panel accessories like AW66PP lowers lifecycle costs by reducing rework, warranty claims, and field service time, especially in high-mix, low-volume environments.
Get a Quick Quote for a Eaton AW66PP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW66PP?
Enquire Now
FAQs
AW66PP is designed to fit 6x6 enclosures with NEMA flanged panel mounting, aligning with standard Eaton B-Line panel configurations. This ensures consistent mounting pitches, reduces the need for adapters, and streamlines pre-wiring and retrofit work across multiple enclosure installations.
AW66PP carries UL Listed, CSA C22.2, and NEMA-related compatibility, providing conformity for electrical assemblies in North America. These certifications support safety, equipment integrity, and regulatory compliance during audits and in high-demand industrial environments.
Yes. AW66PP is part of the Eaton B-Line series and is designed to integrate with 6x6 enclosure systems, enabling consistent accessory kits and simplified installation alongside other B-Line components.
Product Length/Depth is 4.875 inches, Product Height is 4.87 inches, Product Width is 0.053 inches, and Product Weight is 0.376 pounds. These precise dimensions help with enclosure planning, wire routing, and minimizing space intrusion in crowded cabinets.
AW66PP standardizes panel interiors, reduces rework and field service time, and accelerates installation. Coupled with UL/NEMA/CSA certifications, this lowers lifecycle costs, improves audit readiness, and supports faster maintenance cycles in high-mix manufacturing environments.
