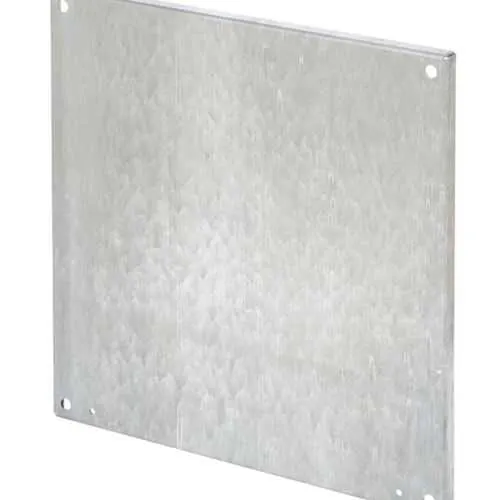

Eaton AW7236P Panels - Type 1 Medium Enclosure, UL Listed
Part Number: AW7236P
Quick Summary
The Eaton AW7236P panels provide sturdy mounting panels for 72x36 in enclosures used in industrial electrical infrastructure. When upgrading facilities, mismatched panel hardware and finishes can slow installs, increase downtime, and complicate compliance. These panels carry CSA C22.2, NEMA, and UL Listed certifications, supporting electrical safety, regional compliance, and equipment performance. As part of Eaton's B-Line series, they integrate with white powder-coated steel enclosures and a broad range of panel accessories, delivering faster installation and predictable service life. This translates to reduced maintenance costs and enhanced system reliability for data centers, manufacturing lines, and distribution facilities.
Product Information
Extended Description
AW7236P Eaton: Eaton B-Line series mounting panels, White powder paint, Steel, Used with 72" X 36" enclosures, Large NEMA flanged panels
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW7236P
UPC
782051794915
Product Length/Depth
32.875 in
Product Height
68.87 in
Product Width
0.75 in
Product Weight
66.748 lb
Certifications
CSA C22.2. NEMA UL Listed
Material
Steel
Finish color
White powder coated
Special features
Used with 72" X 36" enclosures
Type
Type 1 medium enclosure & NEMA flat panels
Feature: White powder-coated steel construction delivers corrosion resistance and durability in industrial environments. Business Impact: reduces repainting, extends service life, and lowers maintenance costs. Application: ideal for mounting panels in 72" x 36" enclosures across manufacturing floors and electrical rooms. Feature: Type 1 medium enclosure compatibility and NEMA flat panels simplify configuration within Eaton B-Line systems. Business Impact: minimizes additional adapters and avoids misfits that slow upgrades. Application: straightforward integration with 72" x 36" enclosure line in data centers and plant floors. Feature: Certifications CSA C22.2, NEMA, and UL Listed provide strong safety and compliance footing. Business Impact: reduces qualification time for audits and supports regulatory adherence. Application: suitable for critical infrastructure, process automation, and utility installations. Feature: Clear dimensional data—32.875 in depth, 68.87 in height, 0.75 in width—and weight of 66.748 lb—helps with space planning and load calculations. Business Impact: enables precise rack layout and reduces surprise fit issues. Application: enables efficient shop drawings for panel installation in constrained spaces. Feature: White powder finish and steel construction integrate seamlessly with other B-Line accessories. Business Impact: streamlines procurement and long-term maintenance. Application: installation across commercial, industrial, and data-controlled environments.
Get a Quick Quote for a Eaton AW7236P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW7236P?
Enquire Now
FAQs
AW7236P panels are designed to mount directly in 72x36 inch Eaton B-Line enclosures. Start by verifying enclosure compatibility, align the panel with flange openings, and secure with standard fasteners per the enclosure catalog. Use the Type 1 medium enclosure configuration to ensure proper fit and NEMA compatibility, minimizing gaps and ensuring safe panel operation.
AW7236P carries CSA C22.2, NEMA, and UL Listed certifications, providing a robust compliance basis for electrical safety and installation standards. These credentials simplify audits, support regional regulatory requirements, and help assure customers that the panel assembly meets recognized safety and performance benchmarks.
Yes. AW7236P is part of the Eaton B-Line series and is specifically designed for use with 72" x 36" enclosures, including compatibility with associated B-Line mounting panels and accessories. This integration reduces part counts, speeds up installations, and ensures consistent performance across the enclosure system.
Key specs include length/depth of 32.875 in, height of 68.87 in, width of 0.75 in, and weight of 66.748 lb. These measurements enable precise space planning, stacking, and load calculations in mechanical rooms or data centers, helping to avoid fit issues and ensuring compliant clearances around the enclosure system.
Official resources include the Eaton enclosure accessories catalog section and the Eaton AW7236P specification sheet. Access the catalog at Eaton’s site for enclosure accessories and download the AW7236P datasheet for detailed installation guidance, material specs, and compatibility notes.
