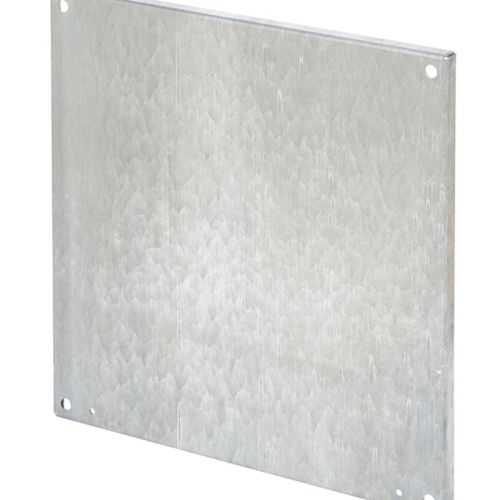

Eaton AW7260AP Panels - NEMA Aluminum Brushed UL Listed
Part Number: AW7260AP
Quick Summary
Eaton AW7260AP panels provide brushed aluminum mounting panels for 72x60 inch B-Line enclosures. Engineers often struggle with compatibility, weight, and corrosion when upgrading large enclosures, making installation time critical. UL Listed, CSA C22.2 certified, and NEMA-compliant construction ensure safe, compliant installations across industrial facilities. The brushed aluminum finish resists corrosion in harsh environments, while the 55.87 inch length and 68.87 inch height support full enclosure coverage. Designed to integrate with 72" x 60" enclosures, they enable faster assembly and easier accessory mounting, reducing total installed cost. For procurement teams, these panels align with B-Line accessories and ensure consistent supplier parts, simplifying sourcing and maintenance planning.
Product Information
Extended Description
AW7260AP Eaton: Eaton B-Line series mounting panels, Brushed finish, Aluminum, Used with 72" X 60" enclosures, Large NEMA flanged panels
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW7260AP
UPC
782051794861
Product Length/Depth
55.87 in
Product Height
68.87 in
Product Width
0.75 in
Product Weight
45.974 lb
Certifications
CSA C22.2. UL Listed NEMA
Material
Aluminum
Finish color
Brushed
Special features
Used with 72" X 60" enclosures
Type
Medium perforated panels
Feature: Aluminum construction with a brushed finish provides corrosion resistance and durability. Business Impact: Longer service life and lower replacement costs in harsh industrial environments, reducing total cost of ownership. Application: Ideal for large 72x60 inch B-Line enclosures used in manufacturing, material handling, and process control plants. Feature: Medium perforated panels designed for mounting and ventilation. Business Impact: Improved airflow and cable management, minimizing heat buildup and enabling efficient thermal design. Application: Suitable for power distribution and control panels within process automation and packaging lines. Feature: Exact dimensions—55.87 in long, 68.87 in tall, 0.75 in thick—and weight of 45.974 lb—ensuring consistent enclosure coverage and predictable load behavior. Business Impact: Easier handling, inventory planning, and installation planning. Application: Used where precise enclosure integration matters for large-scale installations. Feature: UL Listed, CSA C22.2 certified, and NEMA-compliant construction. Business Impact: Regulatory compliance and risk reduction for industrial installations. Application: Supports code-driven facilities and safety-critical environments. Feature: Integration with 72" x 60" enclosures and compatibility with other B-Line accessories. Business Impact: Faster, standardized installation with fewer part variants, improving project timelines and procurement efficiency. Application: Ideal for scalable infrastructure projects in data centers, manufacturing cells, and automation suites. Feature: Lightweight yet robust aluminum panels with compatibility across Eaton B-Line ecosystems. Business Impact: Reduced shipping costs and handling effort, plus easier field modifications. Application: Suitable for retrofit and expansion of existing B-Line enclosures in evolving automation environments.
Get a Quick Quote for a Eaton AW7260AP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW7260AP?
Enquire Now
FAQs
AW7260AP panels are designed for 72x60 inch B-Line enclosures, providing medium perforated mounting panels in a brushed aluminum finish. The panels integrate with the B-Line accessory ecosystem, enabling straightforward upgrades and consistent hardware selection. Their dimensions and perforation pattern are optimized for reliable mounting, ventilation, and cable management in large industrial enclosures.
AW7260AP carries UL Listed and CSA C22.2 certifications, along with NEMA compatibility. These certifications ensure compliance with electrical safety and environmental requirements for industrial installations. The combination supports safer commissioning, easier audits, and reduced risk in regulatory inspections across manufacturing and processing facilities.
Install AW7260AP panels as mounting panels within 72x60 inch Eaton B-Line enclosures. They provide a precise fit with 55.87 inch length, 68.87 inch height, and 0.75 inch thickness, with calculated weight around 45.974 lb for manageable handling. Use standard enclosure mounting hardware and align perforations with internal components to maximize airflow and serviceability.
Yes. AW7260AP is part of the Eaton B-Line accessory family and is designed to pair with other medium perforated panels and large NEMA flanged panels. The compatibility simplifies part selection, reduces duplication of components, and accelerates procurement and installation for multi-panel enclosures in industrial facilities.
Expectation includes improved protection against corrosion due to aluminum construction, enhanced thermal management from perforated design, and faster installation with standardized B-Line components. Over the life of the system, this translates to lower maintenance costs, predictable expansion pathways, and a reduced total cost of ownership for large control panels and electrical infrastructure projects.
