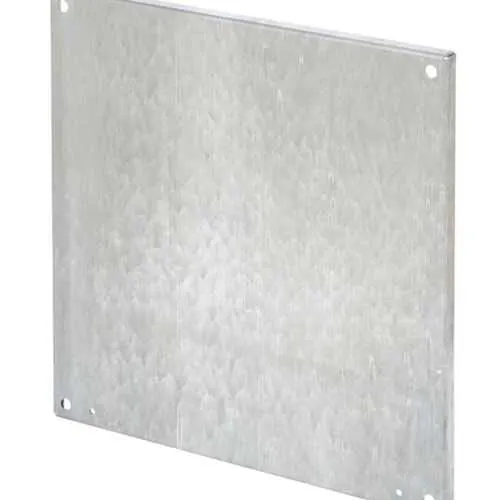

Eaton AW7260SP NEMA Flanged Panels - UL Listed
Part Number: AW7260SP
Quick Summary
AW7260SP NEMA flanged panels enable robust mounting in 72x60 enclosures for industrial control systems. Manufacturers often face slow installation, corrosion risks, and misalignment when integrating stainless steel panels. These AW7260SP panels deliver NEMA and UL Listed compliance with CSA C22.2, supporting safe, regulator-ready installations. Designed to work with Eaton B-Line enclosure systems and panel accessories, they reduce field rework and procurement friction. The result is faster commissioning, lower lifecycle costs, and a scalable foundation for industrial power and control infrastructure.
Product Information
Extended Description
AW7260SP Eaton: Eaton B-Line series mounting panels, Stainless steel, Used with 72" X 60" enclosures, Large NEMA flanged panels
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW7260SP
UPC
782051429145
Product Length/Depth
55.87 in
Product Height
68.87 in
Product Width
0.75 in
Product Weight
152.973 lb
Certifications
NEMA UL Listed CSA C22.2.
Material
Stainless steel
Special features
Used with 72" X 60" enclosures
Type
NEMA flanged panels
Feature: Stainless steel construction provides superior corrosion resistance and long-term durability in harsh environments. Business Impact: Reduces maintenance frequency and replacement costs while preserving panel integrity over the full lifecycle. Application: Ideal for stainless steel mounting panels in industrial facilities where moisture, dust, or chemicals are present. Feature: NEMA flanged panel design offers secure, rigid mounting within large enclosures. Business Impact: Minimizes panel flex and misalignment, improving measurement accuracy and equipment protection. Application: Supports reliable integration inside 72" x 60" enclosures used for power distribution and control wiring. Feature: Full Eaton B-Line compatibility with enclosure systems and panel accessories. Business Impact: Cuts procurement lead times and simplifies stocking, enabling faster project completion. Application: Streamlines installation on projects deploying B-Line series cabinets across multiple sites. Feature: Certifications including NEMA, UL Listed, and CSA C22.2. Business Impact: Delivers regulatory confidence, reducing risk during audits and commissioning. Application: Essential for installations requiring formal electrical safety compliance in North America. Feature: Precise dimensions and weight specification (Product Length/Depth 55.87 in, Height 68.87 in, Width 0.75 in, Weight 152.973 lb). Business Impact: Enables accurate planning for lift, transport, and fitment in constrained spaces; supports engineered drawings. Application: Useful for project teams designing layouts around large enclosure footprints. Industry Insight: In steel-based panel projects, manufacturers benefit from combining these panels with stainless steel enclosure components to achieve uniform corrosion resistance, predictable thermal performance, and simplified supply chains. Compatibility with 72" x 60" enclosures supports scalable expansion as control architectures evolve.
Get a Quick Quote for a Eaton AW7260SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW7260SP?
Enquire Now
FAQs
AW7260SP is designed for use with 72" x 60" enclosures and features a NEMA flanged panel design that provides rigid mounting. Installation benefits include fewer alignment issues and compatibility with Eaton B-Line accessories, which reduces field adjustments and speeds up commissioning. For best results, consult the enclosure manufacturer’s mounting guidelines and use proper lifting equipment due to the panel’s weight.
Key specs include a product length/depth of 55.87 in, height of 68.87 in, width of 0.75 in, and weight of 152.973 lb, with stainless steel construction. These dimensions inform enclosure fit, support load distribution, and handling during installation. The stainless steel material provides corrosion resistance, while the NEMA flanged design minimizes panel flex, improving reliability in demanding environments.
Yes. The AW7260SP uses stainless steel, which offers superior corrosion resistance compared with many alternative panel materials. When combined with the NEMA flanged configuration and UL/NEMA/CSA certifications, it provides a robust, long-lasting solution for corrosive or demanding industrial settings, reducing maintenance intervals and replacement costs over the life of the installation.
The AW7260SP carries NEMA and UL Listed certifications, plus CSA C22.2 compatibility. These certifications reassure electrical safety, compatibility with North American codes, and performance under defined environmental conditions. They are especially important for audits, facility approvals, and ensuring that panel assemblies meet standard regulatory requirements.
The stainless steel construction and certified design reduce corrosion-related downtime and maintenance costs, while faster installation lowers labor hours. Compatibility with Eaton B-Line accessories minimizes part variety and procurement complexity. Together, these factors contribute to a lower total cost of ownership and faster project realization in facilities with large enclosure footprints.
