Eaton AW7272AP Back Panel - NEMA C22.2 UL Listed
Part Number: AW7272AP
Quick Summary
Eaton AW7272AP back panel is a rugged aluminum component designed for Eaton B-Line series enclosures and 72x72 inch systems. When projects demand quick, reliable panel installation, a misfit back panel can slow progress and complicate serviceability. This product carries NEMA, CSA C22.2, and UL Listed certifications, signaling industry compliance and safety for electrical infrastructure. By pairing with 72x72 enclosures and other B-Line accessories, the AW7272AP delivers clean integration, reduced installation time, and long-term support for maintenance-friendly enclosure systems. Its brushed aluminum finish resists fingerprints and corrosion, helping sustain appearance in harsh industrial environments while preserving performance over the enclosure’s life cycle.
Product Information
Extended Description

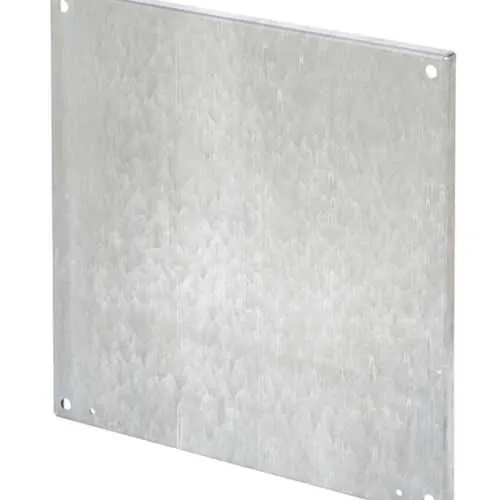

AW7272AP Eaton: Eaton B-Line series mounting panels, Brushed finish, Aluminum, Used with 72" X 72" enclosures, Large NEMA flanged panels
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW7272AP
UPC
782051703665
Product Length/Depth
67.87 in
Product Height
68.87 in
Product Width
0.75 in
Product Weight
55.627 lb
Certifications
NEMA CSA C22.2. UL Listed
Material
Aluminum
Finish color
Brushed
Special features
Used with 72" X 72" enclosures
Type
Back panel
Feature: Aluminum construction with a brushed finish and a weight around 55.627 lb. Business impact: The aluminum profile delivers corrosion resistance, lighter handling during installation, and easier transport on site. Application: Suitable for large 72 x 72 inch Eaton B-Line enclosures, reducing overall enclosure weight without sacrificing rigidity. Feature: Precise dimensions—67.87 in length, 68.87 in height, and 0.75 in thickness—engineered to align with 72x72 inch enclosures. Business impact: This exact fit minimizes gaps, simplifies gasket alignment, and speeds installation. Application: Fits Eaton B-Line series 72x72 enclosures, enabling straightforward mounting of internal components. Feature: Certifications include NEMA, CSA C22.2, and UL Listed markings. Business impact: Compliance reduces risk of project delays and simplifies regulatory approvals for industrial panels. Application: Essential for safety and conformity in electrical infrastructure installations. Feature: Material/finish and compatibility for 72x72 enclosures. Business impact: Brushed aluminum finish reduces fingerprinting and provides durable aesthetics while maintaining compatibility across the B-Line accessory ecosystem. Application: Ideal for modular panel builds that require consistent finish and reliable mechanical fit. Feature: Design intent and compatibility with Eaton B-Line series. Business impact: Streamlined procurement and reduced part-count when assembling large enclosure systems. Application: Best practice for systems integrators delivering enclosed control panels with standardized accessories. Business value summary: The AW7272AP back panel delivers a balanced combination of strength, light weight, and certified safety, enabling faster project delivery, easier maintenance, and long-term cost savings through durable, compliant enclosure design.
