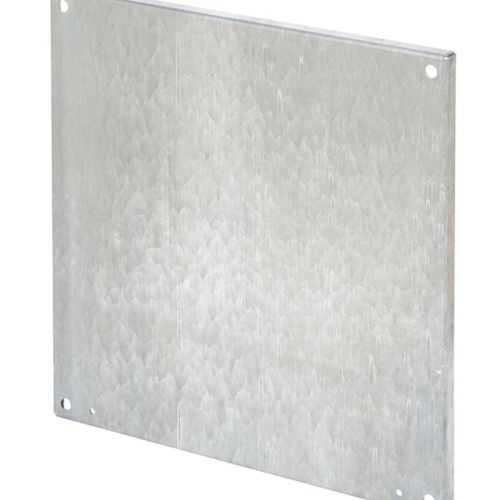

Eaton AW7272SP Panels - Type 1 NEMA Flat Panels (UL Listed)
Part Number: AW7272SP
Quick Summary
Eaton AW7272SP panels are stainless steel mounting panels designed for 72x72 inch enclosures in industrial facilities. Sizing and compatibility with large frames can slow projects and raise customization costs. They carry UL Listed, NEMA, and CSA C22.2 certifications to help ensure safety and regulatory compliance. Stainless construction and tight integration with the B-Line system shorten lead times, lower total cost of ownership, and support scalable enclosures. This combination of durability and seamless compatibility with the Eaton B-Line family helps engineers deliver robust, easy-to-source panel solutions with predictable maintenance budgets.
Product Information
Extended Description
AW7272SP Eaton: Eaton B-Line series mounting panels, Stainless steel, Used with 72" X 72" enclosures, Large NEMA flanged panels
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW7272SP
UPC
782051429169
Product Length/Depth
68.87 in
Product Height
68.87 in
Product Width
0.75 in
Product Weight
185.124 lb
Certifications
UL Listed NEMA CSA C22.2.
Material
Stainless steel
Special features
Used with 72" X 72" enclosures
Type
Type 1 medium enclosure & NEMA flat panels
Stainless steel construction delivers exceptional corrosion resistance and mechanical strength, reducing maintenance requirements and extending service life in demanding environments. This translates to fewer field replacements and lower lifecycle costs, particularly in wash-down or chemical exposure applications where enclosure integrity matters. The AW7272SP is designed to be used with 72" x 72" enclosures, enabling standardized mounting along large control panels and streamlining procurement through a single, compatible accessory line. By aligning with Type 1 medium enclosure and NEMA flat panel specifications, it simplifies regulatory compliance and audit readiness while supporting straightforward field installation with compatible B-Line accessories. The panels carry UL Listed, NEMA, and CSA C22.2 certifications, providing confidence in safety and conformity across regional codes and industrial standards. The stainless steel finish contributes to a rigid, load-bearing structure that distributes mounting loads effectively, improving overall enclosure performance and reducing vibration-related concerns in dense or dynamic installations. Coupled with Eaton’s B-Line ecosystem, the AW7272SP supports scalable configurations and future upgrades without the need for a full panel replacement, protecting capital investments and reducing downtime.
Get a Quick Quote for a Eaton AW7272SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW7272SP?
Enquire Now
FAQs
AW7272SP panels are designed to mount directly into 72x72 inch enclosures within Eaton's B-Line system. Begin by confirming enclosure compatibility, align mounting holes, and secure with appropriate fasteners. Check for proper clearances around doors and components, then attach with compatible B-Line accessories. Verify UL/NEMA/CSA compliance during commissioning and document the installation for future maintenance.
Key specifications include a length and height of 68.87 inches, a width of 0.75 inches, and a weight of 185.124 pounds. Made from stainless steel, the panels support Type 1 medium enclosures and NEMA flat panel configurations. Certifications include UL Listed, NEMA, and CSA C22.2, ensuring safety and regulatory alignment for industrial installations.
Yes. The stainless steel construction provides corrosion resistance and robust mechanical strength, making AW7272SP suitable for wash-down areas and other harsh industrial environments. Its compatibility with the full B-Line accessory ecosystem helps maintain enclosure integrity while meeting regulatory requirements and reducing the risk of component degradation over time.
AW7272SP carries UL Listed, NEMA, and CSA C22.2 certifications. These attest to electrical safety, enclosure integrity, and compliance with regional standards, which simplifies procurement, reduces compliance risk, and supports audit readiness in regulated industries.
The combination of durable stainless steel, regulatory certifications, and seamless integration with the B-Line accessories reduces field rework, maintenance calls, and part substitutions. Longevity in harsh environments translates to lower total cost of ownership, predictable budgeting, and a faster path to commissioning for large-scale enclosure projects.
