Eaton AW76AP Enclosures & Panel Accessories - UL Listed
Part Number: AW76AP
Quick Summary
Eaton AW76AP panels provide durable mounting surfaces for 7x6 enclosures in industrial control panels. Engineers often struggle with compatibility and corrosion resistance when assembling compact, high-density enclosures in harsh environments. This accessory carries NEMA, CSA C22.2 and UL Listed certifications, helping you meet safety and performance standards. The AW76AP is designed as a flat panel for fiberglass enclosures and supports 7-inch by 6-inch footprints, making retrofit and modular expansion straightforward. In practice, fabricators and maintenance teams value predictable fit, reduced tool time, and reliable electrical isolation. Aluminum construction with a brushed finish keeps weight down and resists corrosion, enabling scalable protection across plant floors.
Product Information
Extended Description

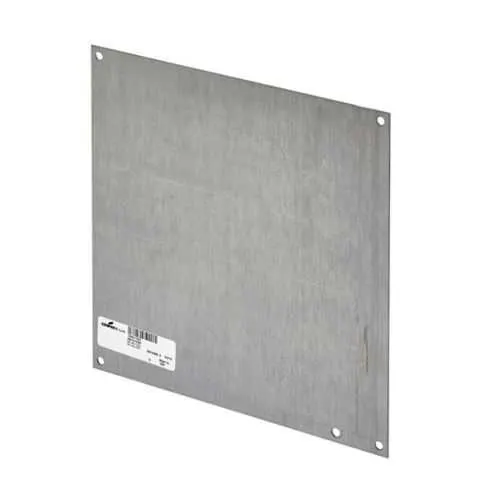

AW76AP Eaton: Eaton B-Line series mounting panels, Brushed finish, Aluminum, Used with 7" X 6" enclosures, Flat panel for fiberglass enclosures
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW76AP
UPC
782051534528
Product Length/Depth
4.87 in
Product Height
5.87 in
Product Width
0.063 in
Product Weight
0.239 lb
Certifications
NEMA CSA C22.2. UL Listed
Material
Aluminum
Finish color
Brushed
Special features
Used with 7" X 6" enclosures
Type
Medium perforated panels
Feature: Aluminum construction with a brushed finish provides corrosion resistance and lightweight handling. Business Impact: Lower maintenance costs and easier installation reduce downtime during panel upgrades. Application: Ideal for aerospace-grade control rooms and harsh manufacturing environments where longevity and ease of handling matter. Feature: Medium perforated panel design improves airflow and cable management while maintaining structural integrity. Business Impact: Enhanced cooling and organized wiring translates to higher reliability and reduced risk of thermal issues. Application: Suitable for data centers, food and beverage plants, and process lines with enclosed electrical gear. Feature: Compact dimensions—4.87 in L, 5.87 in H, 0.063 in W—and a weight of 0.239 lb. Business Impact: Streamlined installation and minimized support hardware, cutting labor time. Application: Quick retrofits in retrofit projects and modular expansions. Feature: Special feature uses with 7" x 6" enclosures. Business Impact: Eliminates need for adapters, ensuring consistent fit across Eaton B-Line components. Application: Fleet-wide upgrades in arrayed enclosures. Feature: Certifications include NEMA, CSA C22.2, and UL Listed. Business Impact: Regulatory compliance reduces audit risk and accelerates project sign-offs. Application: Production floors requiring certified enclosure accessories. Feature: Flat panel designed for fiberglass enclosures broadens material compatibility. Business Impact: Simplifies procurement and reduces stock variety. Application: Mixed-material enclosure environments.
Get a Quick Quote for a Eaton AW76AP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW76AP?
Enquire Now
FAQs
The AW76AP is designed specifically for 7x6 Eaton B-Line enclosures, providing a precise flat-panel fit that supports medium perforated panel configurations. Its aluminum construction and brushed finish ensure durable, lightweight mounting, while the integration with 7x6 footprints simplifies retrofit projects and future expansions across existing panels.
Key specifications include catalog number AW76AP, aluminum material, brushed finish, 4.87 in length, 5.87 in height, 0.063 in width, and a weight of 0.239 lb. The panel is a medium perforated type, designed for 7x6 enclosures and compatible with fiberglass enclosure applications, enabling quick, tool-efficient installation.
Yes. AW76AP is UL Listed and CSA C22.2 certified, aligning with NEMA requirements. These certifications ensure electrical safety, reliability, and regulatory compliance for use in industrial control panels and other critical environments.
Absolutely. As a medium perforated panel, AW76AP enhances airflow around mounted components while providing organized cable routing. This reduces hotspot risk, supports better cooling performance, and simplifies cable management during maintenance or future upgrades.
The panel’s lightweight aluminum construction lowers installation labor and handling risk, while corrosion resistance extends service intervals. Its compatibility with 7x6 enclosures reduces the need for adapters, decreases spare-part variety, and speeds up project timelines, contributing to lower total cost of ownership over the panel lifecycle.
