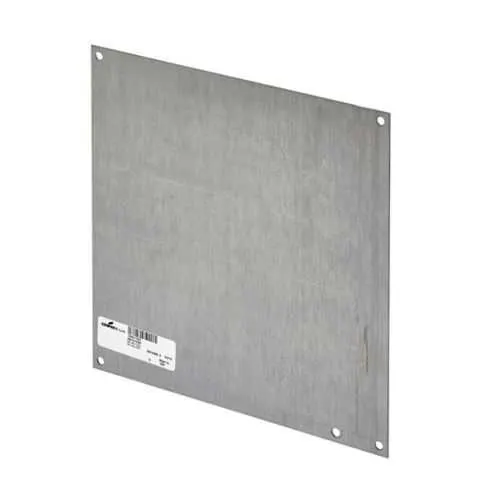

Eaton AW76SP Flat Panel - NEMA Flanged Panels
Part Number: AW76SP
Quick Summary
The Eaton AW76SP Flat Panel provides a durable mounting surface for 7" x 6" fiberglass enclosures. This solution reduces installation time and helps keep wiring tidy in challenging industrial environments. It offers strong corrosion resistance thanks to stainless steel construction and is compatible with NEMA flanged panel configurations. The panel carries UL-listed and CSA C22.2 certifications, ensuring compliance for critical electrical infrastructure. For engineers and maintenance teams, it delivers reliable performance, predictable fit, and long service life within enclosure ecosystems. By integrating with Eaton B-Line series accessories, it also supports scalable enclosure systems, enabling faster deployments and more consistent field results.
Product Information
Extended Description
AW76SP Eaton: Eaton B-Line series mounting panels, Stainless steel, Steel, Used with 7" X 6" enclosures, Flat panel for fiberglass enclosures
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW76SP
UPC
782051534535
Product Length/Depth
4.87 in
Product Height
5.87 in
Product Width
0.063 in
Product Weight
0.655 lb
Certifications
NEMA UL Listed CSA C22.2.
Material
Stainless steel
Style
Flat panel for fiberglass enclosures
Special features
Used with 7" X 6" enclosures
Type
NEMA flanged panels
Feature: Stainless steel construction. Business Impact: Delivers exceptional corrosion resistance, extending service life in moisture-prone or washdown environments and reducing ongoing maintenance costs. Application: Ideal for harsh industrial settings where enclosure components must withstand moisture and chemical exposure. Feature: Flat panel design with precise dimensions. Business Impact: Minimizes mounting protrusions and simplifies alignment within 7" x 6" fiberglass enclosures, speeding retrofits. Application: Retrofit projects and new builds in tight panel bays. Feature: NEMA flanged type with UL and CSA approvals. Business Impact: Ensures regulatory compliance, safer installations, and streamlined audits. Application: Critical control panels in automation and outdoor installations. Feature: Lightweight yet sturdy. Business Impact: Reduces handling effort and labor hours during installation and service. Application: Quick upgrades and field servicing using standard hardware. Feature: Part of Eaton B-Line series ecosystem. Business Impact: Enables scalable enclosure upgrades and consistent performance across accessories. Application: System builders and integrators planning phased enclosure expansions.
Get a Quick Quote for a Eaton AW76SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW76SP?
Enquire Now
FAQs
AW76SP is designed for 7" x 6" fiberglass enclosures and uses NEMA flanged panel style. It is a stainless steel flat panel that fits Eaton B-Line series mounting schemes and accepts standard enclosure hardware. The UL Listed and CSA C22.2 certified construction ensures safe, code‑compliant installations in industrial environments. This design helps reduce field rework and mismatch issues during panel upgrades.
AW76SP meets regulatory and safety requirements through UL-listed construction, CSA C22.2 compliance, and NEMA flanged panel design. This combination ensures electrical equipment is protected and tested to recognized standards for enclosure fittings. The stainless steel, corrosion-resistant material further supports reliability in harsh environments while maintaining safe, compliant access for inspections and maintenance.
Its flat panel design with precise dimensions minimizes mounting protrusions and simplifies alignment within 7x6 fiberglass enclosures. Lightweight at 0.655 lb, the panel reduces handling effort and speeds retrofits when used with standard Eaton B-Line accessories and mounting hardware. The NEMA flanged design also facilitates compliant gasketing and serviceability during enclosure upgrades.
Industrial automation projects that use fiberglass enclosures in wet, dusty, or washdown environments benefit from AW76SP. The stainless steel flat panel provides a robust mounting surface for electrical components, while NEMA flanged compatibility ensures secure panel installation. It is well-suited for control panels in process automation, water treatment, and outdoor equipment housings where reliability and easy maintenance matter.
By delivering corrosion resistance and long service life in fiberglass enclosures, AW76SP reduces downtime and maintenance costs over the system’s life. Its lightweight design speeds retrofit and installation, lowering labor hours. The UL and CSA certifications minimize risk during audits, while compatibility with Eaton B-Line accessories supports scalable enclosure upgrades without replacing surrounding hardware.
