Eaton AW86PP Panels & Accessories - UL Listed
Part Number: AW86PP
Quick Summary
Eaton AW86PP is a set of B-Line series panels and panel accessories designed to fit 8x6 inch enclosures for electrical infrastructure. Engineers often face space constraints and compatibility challenges when upgrading or expanding enclosures, risking wiring complexity and downtime. UL Listed along with NEMA and CSA C22.2 certifications, these components meet essential safety and performance standards in industrial environments. The white powder-coated steel construction delivers durability in harsh environments, while the compact form and JIC flat perforated panel design simplify mounting, airflow, and maintenance. With AW86PP, manufacturers and integrators gain reliable, scalable enclosure accessories that reduce field labor and simplify compliance across multiple panels and cabinets.
Product Information
Extended Description

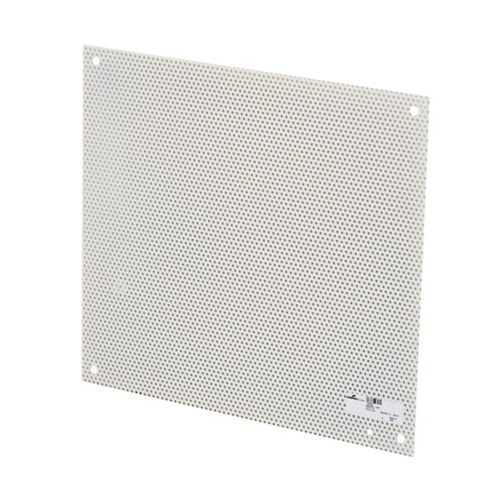

AW86PP Eaton: Eaton B-Line series panels and panel accessories, White powder coated, Steel, Panels and panel accessories, Fits 8" X 6" enclosures, JIC flat perforated panel
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW86PP
UPC
782051445862
Product Length/Depth
4.875 in
Product Height
6.87 in
Product Width
0.053 in
Product Weight
0.532 lb
Certifications
UL Listed NEMA CSA C22.2.
Material
Steel
Finish color
White powder coated
Special features
Fits 8" X 6" enclosures
Product Category
Panels & panel accessories
Type
Medium perforated panels
White powder-coated steel construction delivers excellent corrosion resistance and long-term durability, reducing maintenance cycles and repainting costs in harsh industrial settings. This translates to lower total cost of ownership and fewer field service interruptions in automation cabinets. The AW86PP is engineered to fit 8x6 inch enclosures, standardizing componentry across lines and speeding up retrofit projects, which shortens downtime and improves project timelines. Medium perforated panels with a JIC flat perforated panel option enhance airflow and cable management, improving thermal performance and device longevity in control panels. Exact dimensions are 4.875 inches deep, 6.87 inches high, and 0.053 inches thick, with a light 0.532 lb weight, making installation predictable and space planning straightforward. Certifications including UL Listed, NEMA, and CSA C22.2 deliver regulatory confidence for audits and compliance reporting. Catalog and datasheet availability streamlines procurement and ensures installers have the latest installation guidance and compatibility notes. Compatibility with Eaton B-Line series panels and accessories helps keep spare parts common and procurement straightforward, reducing stock complexity and lead times. Overall, AW86PP supports faster installs, better airflow, and more robust protection for electrical components in industrial cabinets, driving reliability and efficiency in automation projects.
Get a Quick Quote for a Eaton AW86PP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW86PP?
Enquire Now
FAQs
AW86PP is designed to fit 8x6 inch Eaton B-Line enclosure systems. For installation, align the panels with standard mounting points inside the enclosure, secure using the included hardware per the Eaton specification sheet, and verify clearance for any attached devices. The compact dimensions (4.875 in depth, 6.87 in height, 0.053 in thickness) simplify interior layout planning and allow straightforward retrofits with existing B-Line components.
Key specs include steel construction with a white powder-coated finish, dimensions of 4.875 in L (depth) by 6.87 in H by 0.053 in T, weight 0.532 lb, and the medium perforated panel type. These factors deliver durable enclosure components with good airflow management, predictable fit within 8x6 enclosures, and lightweight handling for quicker on-site installs without compromising mechanical protection.
Yes. The steel construction with a white powder coating provides corrosion resistance and durability suitable for harsh factory floors and environmental dust. UL Listed, NEMA, and CSA C22.2 certifications help ensure acceptable performance under standard industrial electrical codes, making AW86PP suitable for control panels and cabinet applications in automation and process environments.
AW86PP carries UL Listed, NEMA, and CSA C22.2 certifications. These certifications indicate compliance with widely recognized safety and performance standards, facilitating regulatory audits, purchase approvals, and risk management in safety-critical industrial installations.
Using AW86PP standardizes enclosure components, reducing custom part sourcing and inventory complexity. The durable finish, easy installation, and compatibility with existing B-Line series components shorten project timelines, minimize field labor, and lower maintenance costs over the system’s life, delivering measurable ROI in both capital and operational budgets.
