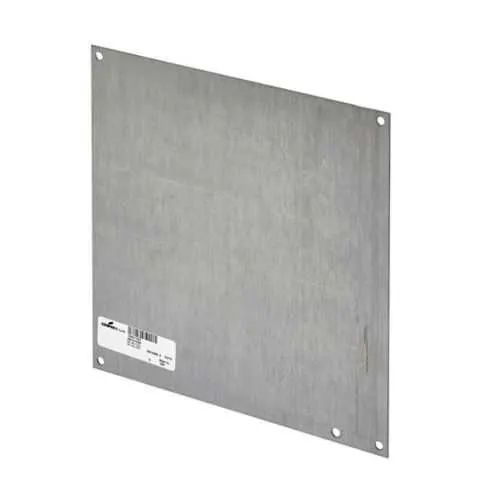

Eaton AW86SP Flat Panel - Fiberglass Enclosures UL Listed
Part Number: AW86SP
Quick Summary
AW86SP flat panel from Eaton provides a durable front-panel solution for fiberglass enclosures used in electrical distribution within control panels. Engineers often confront corrosion, ingress, and mounting challenges in compact 8x6 enclosures, and misfit accessories can drive field modifications while protecting against dust ingress. UL Listed, NEMA, and CSA C22.2 certifications underpin safety and code compliance for industrial installations across North America. This flat panel is built from stainless steel with a brushed finish and integrates seamlessly with the Eaton B-Line series. By aligning with fiberglass enclosure accessories, it supports faster assembly, reduced downtime, and long-term reliability in harsh environments worldwide.
Product Information
Extended Description
AW86SP Eaton: Eaton B-Line series fiberglass accessories, Smooth brushed, Stainless steel, Fiberglass accessories, Fits 8" X 6" enclosures, Back panel, 14 gauge
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW86SP
UPC
782051793215
Product Length/Depth
4.87 in
Product Height
6.87 in
Product Width
0.063 in
Product Weight
0.712 lb
Certifications
UL Listed NEMA CSA C22.2.
Material
Stainless steel
Finish color
Brushed
Special features
Fits 8" X 6" enclosures
Product Category
Fiberglass accessories
Type
Flat panel for fiberglass enclosures
Feature: Stainless steel construction with brushed finish. Benefit: Delivers corrosion resistance, durable aesthetics, and reduced maintenance in harsh environments. Application: Ideal for 8x6 fiberglass enclosure installs where longevity and clean appearance matter. Feature: Precise dimensions and thin profile (4.87 in L x 6.87 in H x 0.063 in W). Benefit: Easy drop-in replacement with minimal enclosure disruption, enabling quick retrofits in industrial control panels. Application: Retrofit projects and new builds requiring compact, lightweight front panels. Feature: Back panel included (14 gauge). Benefit: Simplifies mounting and reduces parts count, accelerating assembly and serviceability in field installations. Application: Panels with integrated back support for rigid enclosure assemblies. Feature: Certifications UL Listed, NEMA, CSA C22.2. Benefit: Confidence in safety, regulatory compliance, and acceptance across North American facilities. Application: Compliance-driven deployments in manufacturing and process environments. Feature: Compatibility with Eaton B-Line fiberglass accessories. Benefit: Streamlined procurement and installation, ensuring consistent enclosure ecosystems. Application: Projects deploying the B-Line family across multiple enclosures and accessory types. Feature: Lightweight yet sturdy design (0.712 lb). Benefit: Easier handling during installation and reduced support requirements. Application: Fastening and servicing in limited-access control panels.
Get a Quick Quote for a Eaton AW86SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW86SP?
Enquire Now
FAQs
Yes. AW86SP is designed as a flat panel for 8x6 fiberglass enclosures and ships with a back panel for straightforward mounting. Its dimensions are 4.87 in length, 6.87 in height, and 0.063 in thickness, providing a precise fit without requiring extensive modifications. Use standard enclosure screws to attach the panel to the frame, ensuring clearances are observed for door operation and internal components.
The AW86SP carries UL Listed, NEMA, and CSA C22.2 certifications. These marks indicate conformance to recognized safety and performance standards, facilitating code compliance for North American industrial installations. For projects governed by UL, CSA, or NEMA requirements, using this panel helps ensure safe operation, proper electrical protection, and acceptance by inspectors and manufacturers.
Yes. The panel uses stainless steel with a brushed finish, which offers superior corrosion resistance and durability in demanding environments. Combined with a back panel and the 14-gauge backing, the AW86SP maintains structural integrity and appearance over time while minimizing maintenance needs in control panels and process facilities.
Plan for a 4.87 inch long by 6.87 inch high front panel with a 0.063 inch thick stainless steel construction and an approximate weight of 0.712 lb. The panel is compatible with Eaton’s B-Line fiberglass accessory ecosystem, enabling a cohesive enclosure solution. Confirm enclosure interior clearance and door alignment to ensure seamless operation after installation.
Official resources include the Accessories section of the Enclosure Catalog and the Eaton specification sheet for AW86SP. Access the catalogs at Eaton’s enclosure assets page and the dedicated AW86SP datasheet for installation guidelines, compatibility notes, and warranty details to support procurement and engineering approval processes.
