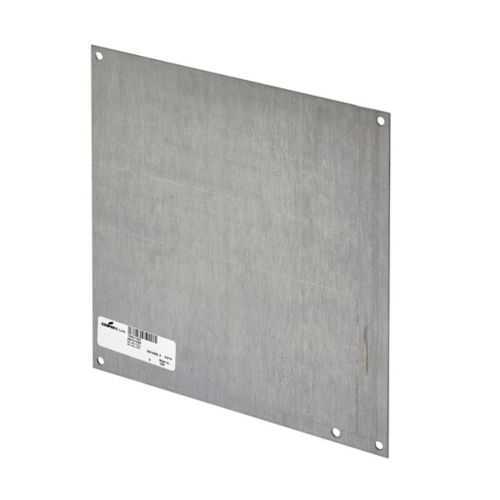

Eaton AW96AP Flat Panel for Fiberglass - NEMA 4X UL Listed
Part Number: AW96AP
Quick Summary
Eaton AW96AP Flat Panel for Fiberglass Enclosures is a durable back panel accessory that simplifies customization of B-Line fiberglass enclosures for control and automation installations. The lightweight aluminum panel provides a secure mounting surface without adding unnecessary weight, helping maintain compact enclosure footprints. Many facilities struggle with corrosion, washdown exposure, and installation delays; AW96AP addresses these pain points with a NEMA 4X-rated design that withstands harsh environments. It carries UL Listed and CSA C22.2 certifications, delivering regulatory assurance across North America. With standardized dimensions and compatibility with existing enclosure frames, it enables fast, error-free installs and easier field maintenance. The result is improved reliability, lower downtime, and a reduced spare-part burden for growing industrial facilities.
Product Information
Extended Description
AW96AP Eaton: Eaton B-Line series fiberglass accessories, NEMA 4X, Gray, Aluminum, Back panel, Fiberglass accessories, Aluminum panel, 14 gauge
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
AW96AP
UPC
782051534559
Product Length/Depth
4.875 in
Product Height
7.87 in
Product Width
0.063 in
Product Weight
0.329 lb
Certifications
CSA C22.2. NEMA UL Listed
Material
Aluminum
Finish color
Gray
Style
Back panel
Product Category
Fiberglass accessories
Type
Flat panel for fiberglass enclosures
Feature: Aluminum construction with gray finish. Benefit: Combines corrosion resistance with lightweight handling, reducing installation fatigue and supporting safer, quicker service calls. Application: Suitable for rugged B-Line fiberglass enclosures in manufacturing and process environments where frequent access panels are needed without extra bulk. Feature: NEMA 4X rated back panel. Benefit: Ensures water and dust ingress protection in washdown and outdoor conditions, preserving control integrity and extending equipment life. Application: Ideal for food & beverage, chemical processing, and outdoor switchgear installations where environmental protection is critical. Feature: Flat panel design for fiberglass enclosures. Benefit: Simplifies retrofit projects and enables clean, clear interior layouts with minimal modification. Application: Retrofit programs in legacy facilities and new builds using Eaton B-Line fiberglass systems. Feature: UL Listed and CSA C22.2 certified. Benefit: Regulatory compliance minimizes risk and accelerates inspection acceptance, reducing project delays. Application: Critical for North American electrical installations and safety audits. Feature: Compact dimensions and precise tolerances (4.875 in L, 7.87 in H, 0.063 in W). Benefit: Predictable fit with standard frames, reduced field rework, and easier inventory planning. Application: Design engineers and procurement teams benefit from consistent part sizing across projects. Feature: Catalog AW96AP and UPC 782051534559. Benefit: Clear identification and traceability streamline parts management and documentation. Application: Maintenance contractors and distributors can quickly verify part compatibility during spares stocking.
Get a Quick Quote for a Eaton AW96AP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AW96AP?
Enquire Now
FAQs
AW96AP is a flat panel back panel accessory designed for Eaton B-Line fiberglass enclosures. It uses standard mounting interfaces found on B-Line frames, enabling fast retrofit or new-install setups. The aluminum construction and precise dimensions ensure a secure fit, while the gray finish provides durable, corrosion-resistant appearances in demanding environments. This panel is ideal for projects requiring a lightweight, robust solution with straightforward field installation.
AW96AP specifications include a catalog number AW96AP, UPC 782051534559, product length/depth of 4.875 in, height of 7.87 in, width of 0.063 in, and weight of 0.329 lb. Material is Aluminum with a Gray finish, designed as a Back panel for fiberglass enclosures, and it carries NEMA 4X, UL Listed, and CSA C22.2 certifications for North American compliance.
Yes. AW96AP features a NEMA 4X rated back panel with aluminum construction and a Gray finish, providing resistance to corrosion, dust, and washdowns. It is UL Listed and CSA C22.2 certified, ensuring conformity with widely recognized safety and performance standards for industrial installations in North America.
The AW96AP reduces installation time and part variety by offering a standardized, compatible back panel for Eaton B-Line fiberglass enclosures. Its lightweight aluminum construction lowers handling effort, while NEMA 4X protection minimizes unplanned maintenance due to environmental exposure. Together, these factors improve uptime, simplify spares management, and support scalable enclosure configurations.
Official documents include the Accessories section of the Enclosure Catalog and the Eaton Specification Sheet for AW96AP. Both are available as downloads from Eaton’s product pages, providing detailed dimensions, installation guidance, and compatibility notes to support procurement and field engineers during projects.
