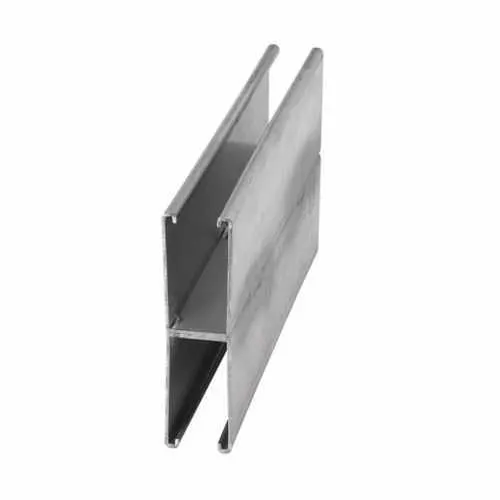

Eaton B11SHA-120GLV B-Line Strut Channel - Galvanized
Part Number: B11SHA-120GLV
Quick Summary
The Eaton B11SHA-120GLV B-Line strut channel provides back-to-back support for modular framing in industrial installations. Users face corrosion risk, slow installation, and tedious accessory compatibility across brands. Note that this listing marks Certifications and Compliances as Not Applicable; consult Eaton datasheets for CE, IP, or SIL verification. With galvanized finish, long length options, and a broad accessory lineup, it accelerates installation while improving lifecycle cost. In mechanical and electrical installations, reliable channel framing reduces rework and simplifies future changes. This product's 120 inches length supports long spans without joints, while its 5.94 lb weight eases handling during rack builds. Rely on Eaton's B-Line engineering resources for line cards and datasheets to ensure compliant installations.
Product Information
Extended Description
B11SHA-120GLV Eaton: B-Line series strut back-to-back slotted hole channel, B11SHA series in galvanized finish, 120 inches long
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B11SHA-120GLV
UPC
799038828020
Product Weight
5.94 lb
Compliances
Not Applicable
Certifications
Not Applicable
Special features
Full line of accessories Material and product identification Structural-quality steel productFull line of finishes including Dura-Green and Dura-Copper
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
B-Line engineering services line card
B-Line series slotted channel specification
Feature → Business Impact → Application: Back-to-back welded channel design provides high torsional rigidity and even load distribution. Business Impact → Reduces deflection, misalignment, and rework, shortening installation time. Application → Ideal for data-center rack framing, electrical rooms, and machine enclosures requiring stable long-span support. Feature → Galvanized finish delivers corrosion resistance. Business Impact → Extends lifecycle in damp or washdown environments, lowering maintenance costs. Application → Outdoor installations, utility rooms, and chemical processing areas where moisture protection matters. Feature → 120 inch length enables long spans without joints. Business Impact → Fewer joints mean fewer fasteners and faster field assembly. Application → Large equipment runs, cable management pathways, and uninterrupted framing sections. Feature → Full line of accessories compatibility and structural-quality steel. Business Impact → Simplifies configuration, reduces part variety, boosts configurability and quick changes. Application → Modular framing setups with mounting brackets, channels, and accessories across industries. Feature → Manageable 5.94 lb weight facilitates handling. Business Impact → Improves on-site maneuverability, reduces installation fatigue, and supports safer lifts. Application → On-site rack installation, retrofit projects, and multi-run channel deployments. Industry insight → The B-Line series is widely adopted for electrical, mechanical, and data-center infrastructures, delivering faster project timelines with code-compliant framing.
Get a Quick Quote for a Eaton B11SHA-120GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B11SHA-120GLV?
Enquire Now
FAQs
To install the B11SHA-120GLV, align the channel with compatible connectors and fittings designed for back-to-back configurations. Secure with the appropriate bolts, use gaskets or pads as needed, and route hardware through the slotted holes. The 120 inch length reduces joints, speeding assembly while maintaining structural integrity.
Key specs include catalog number B11SHA-120GLV, UPC 799038828020, product weight 5.94 lb, and length 120 inches. The finish is galvanized, and the product is part of the B-Line back-to-back welded channel family.
The galvanized finish provides corrosion resistance suitable for many environments, but verify site-specific conditions against Eaton datasheets. For extreme or washdown environments, consider additional protective finishes or enclosure strategies and consult the Channel and Combinations Catalog Section for compatible finishes.
The B-Line system supports a full line of accessories and slotted channel options. Use the B-Line channel specification and catalog resources to identify compatible brackets, fasteners, and mounting hardware to achieve a configured framing solution with reduced part proliferation.
Official Eaton datasheets and engineering resources are available in the downloads section: Channel and Combinations Catalog Section, Strut System Catalog 2018, and B-Line series slotted channel specification. These PDFs provide detailed dimensions, finishes, and installation guidelines for B11SHA-120GLV.
