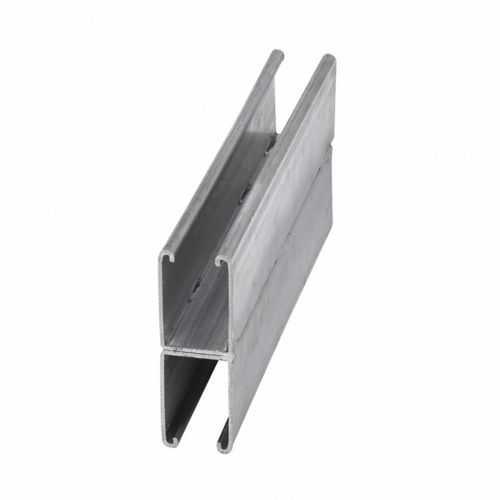

Eaton B12A-240PLN B-Line Strut Channel - 12 in
Part Number: B12A-240PLN
Quick Summary
Eaton B12A-240PLN is a back-to-back welded strut channel for modular, robust support frames in industrial enclosures. Installers often struggle with alignment and retrofit timing when upgrading mechanical and electrical mounting systems. No formal certifications are listed for this item in the spec, though it uses structural-quality steel with durable finishes such as Dura-Green and Dura-Copper. Designed for compatibility with the B-Line accessories catalog, this solution helps reduce procurement complexity and supports scalable framing. With the 12 inch length and standard bolt patterns, field installation remains straightforward for both new builds and retrofits. Planning teams benefit from predictable dimensions and compatible finishes that align with common electrical and mechanical hardware.
Product Information
Extended Description
B12A-240PLN Eaton: B-Line series strut back-to-back channel, B12A series in plan finish, 240 inches long
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B12A-240PLN
UPC
781011839963
Product Length/Depth
12 in
Product Height
4.875 in
Product Width
1.625 in
Product Weight
4.94 lb
Compliances
Not Applicable
Certifications
Not Applicable
Special features
Full line of accessories Material and product identification Structural-quality steel productFull line of finishes including Dura-Green and Dura-Copper
B-Line Series Strut Systems Catalog
B-Line Series Strut Systems Catalog
B-Line Series Strut Systems Catalog
B-Line engineering services line card
Eaton Specification Sheet - B12A-240PLN
Eaton Specification Sheet - B12A-240PLN
Back-to-back welded channel geometry provides stable continuous rails, reducing on-site welding and alignment errors. This directly improves installation reliability and allows faster assembly of modular frames in electrical rooms and data centers. The 12 inch length, 1.625 inch width, and 4.875 inch height deliver a predictable fit for standard enclosures and mounting profiles, while a 4.94 lb weight aids handling and shipping efficiency. Finish options such as plan finish with Dura-Green and Dura-Copper extend corrosion resistance, reducing lifecycle costs in harsh environments. Compatibility with the full line of B-Line accessories simplifies system design, installation, and future expansion; refer to Eaton catalogs for compatible brackets, fittings, and channels. While the spec lists Not Applicable for certifications, the structural-quality steel and durable finishes provide a reliable foundation for modular framing in industrial settings.
Get a Quick Quote for a Eaton B12A-240PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B12A-240PLN?
Enquire Now
FAQs
B12A-240PLN is designed to work with Eaton’s full line of B-Line Series strut accessories, including brackets, fittings, and channel combinations. Use the B-Line catalogs for confirmed compatibility and bolt patterns to ensure a clean mounting solution.
Product length is 12 in; height is 4.875 in; width is 1.625 in; and the weight is 4.94 lb. Catalog number is B12A-240PLN; UPC is 781011839963.
The part uses plan finish with optional finishes such as Dura-Green and Dura-Copper, providing enhanced corrosion resistance and lifecycle cost benefits in harsh environments.
The spec lists Compliances and Certifications as Not Applicable. For regulated environments, verify applicable CE, IP, or SIL requirements with Eaton datasheets or project specifications.
Ideal for modular mounting frames in electrical rooms, data centers, and general industrial installations, where reliable back-to-back strut channels support hardware and cable management.
