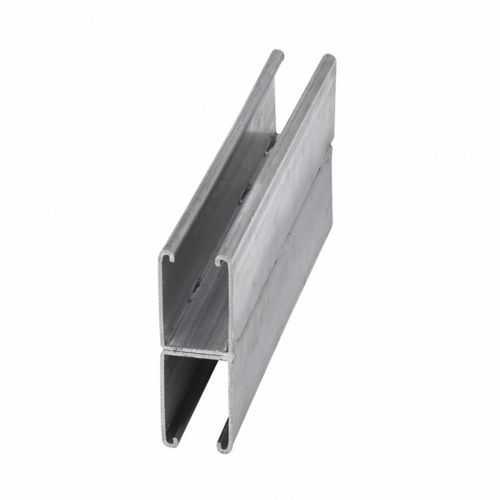

Eaton B12SHA-120GLV Strut Channel - Galvanized Finish
Part Number: B12SHA-120GLV
Quick Summary
Eaton B12SHA-120GLV strut channel provides back-to-back welded channel support for mechanical and electrical installations in industrial facilities. In tight racks and crowded equipment bays, installers often struggle with misalignment and mounting complexity, leading to rework and slower project schedules. Not applicable certifications and compliances are listed for this model, while the galvanized finish and structural-quality steel design deliver durability alongside compatibility with a full line of B-Line accessories. Leveraging this channel accelerates procurement, standardizes mounting practices, and supports scalable, long-span installations across panel and rack systems.
Product Information
Extended Description
B12SHA-120GLV Eaton: B-Line series strut back-to-back slotted hole channel, B12SHA series in galvanized finish, 120 inches long
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B12SHA-120GLV
UPC
781011840020
Product Weight
4.78 lb
Compliances
Not Applicable
Certifications
Not Applicable
Special features
Full line of accessories Material and product identification Structural-quality steel productFull line of finishes including Dura-Green and Dura-Copper
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
B-Line engineering services line card
Eaton Specification Sheet - B12SHA-120GLV
Eaton Specification Sheet - B12SHA-120GLV
Back-to-back welded channel design provides superior rigidity and consistent alignment, improving mounting accuracy and reducing rework in dense electrical and mechanical layouts. This translates to faster installation times and improved system reliability when attaching equipment, cables, and supports to ceilings, walls, or racks. The galvanized finish offers corrosion resistance suitable for industrial environments, extending service life and lowering replacement costs in damp or harsh settings. At 120 inches long, a single length covers longer spans, minimizing joint counts and simplifying field fabrications for large enclosures or utility rooms. With a weight of 4.78 lb, the channel remains manageable for overhead mounting or single-operator installations, boosting site productivity. The product integrates with Eaton’s full B-Line accessories catalog, enabling quick customization and reducing procurement complexity for projects requiring channel nuts, brackets, and fittings. Compatibility with standard fittings helps address common objections about stocking diversity and installation downtime, delivering tangible cost savings and predictable scheduling in electrical and mechanical builds. Industry practitioners will appreciate the balance of strength, versatility, and ease of installation provided by this galvanized strut channel, especially in projects that demand durable structural framing with minimal maintenance.
Get a Quick Quote for a Eaton B12SHA-120GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B12SHA-120GLV?
Enquire Now
FAQs
To install, verify compatibility with the B-Line slotted back-to-back channel system and select appropriate channel nuts, bolts, and brackets from Eaton’s accessory line. Use the B12SHA-120GLV as the backbone for long spans (120 in) and attach compatible elbows, tees, and mounting brackets to create a secure rack or enclosure framework. Ensure proper alignment before tightening to maintain system rigidity.
The provided data does not list explicit load ratings for this model. For precise performance figures, refer to Eaton’s Channel and Combinations Catalog and the B12SHA-120GLV specification sheet. In practice, design loads should be derived from the overall B-Line system guidance, considering channel length, fastener type, and supported equipment to avoid overloading the channel.
Yes. The B12SHA-120GLV is designed as a durable back-to-back welded strut channel with a galvanized finish, making it well-suited for industrial electrical installations. Its 120 in length supports long-span mounting, while compatibility with the full B-Line accessory lineup enables flexible distribution, cable management, and equipment mounting in racks, panels, and enclosures commonly found in factories and data centers.
According to the provided data, Certifications and Compliances are listed as Not Applicable for this model. Users should review the Eaton specification sheets and the latest product catalogs for any applicable standards or regional compliance information relevant to their project requirements.
The 120 inch length reduces the number of field joints, cutting labor time and material overhead during installation. Galvanized finish enhances durability, lowering maintenance and replacement costs in harsh environments. Compatibility with the full B-Line accessory family streamlines procurement and reduces stocking complexity, delivering a measurable return on investment through faster project completion and longer service life.
