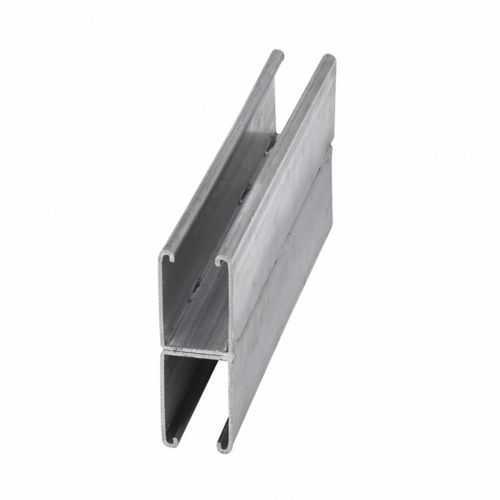

Eaton B12SHA-120HDG Strut Channel - HDG Finish
Part Number: B12SHA-120HDG
Quick Summary
The Eaton B12SHA-120HDG is a back-to-back welded strut channel for industrial support systems. It enables secure, scalable mounting of electrical and mechanical equipment in manufacturing and facilities environments. This data lists Not Applicable for Compliances and Certifications, so projects with regulated environments should verify SIL, CE, or IP ratings per site requirements. The hot-dipped galvanized finish delivers corrosion resistance, while compatibility with a full line of B-Line accessories simplifies design and installation. By standardizing on a common channel and fittings, maintenance and future expansions become faster and more cost-efficient. For procurement teams, sourcing a widely supported chassis reduces part variety and obsolescence risk.
Product Information
Extended Description
B12SHA-120HDG Eaton: B-Line series strut back-to-back slotted hole channel, B12SHA series in hot dipped galvanized finish, 120 inches long
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B12SHA-120HDG
UPC
799038828075
Product Weight
4.78 lb
Compliances
Not Applicable
Certifications
Not Applicable
Special features
Full line of accessories Material and product identification Structural-quality steel productFull line of finishes including Dura-Green and Dura-Copper
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
B-Line engineering services line card
Eaton Specification Sheet - B12SHA-120HDG
Eaton Specification Sheet - B12SHA-120HDG
Back-to-back welded channel design delivers superior rigidity and even load distribution, reducing deflection under heavy equipment. This translates to safer mounts and longer service life, especially in high-vibration environments. Application: electrical racks, motor control centers, and heavy-duty support frames across manufacturing floors. The 120 inch length minimizes field joints, streamlining installations and reducing labor time. This supports faster buildouts for data centers and industrial facilities. Hot-dipped galvanized finish provides outstanding corrosion resistance in damp or outdoor environments, lowering maintenance costs and extending service life. Broad compatibility with the full Eaton B-Line accessory line enables quick customization and modular upgrades, shortening project timelines. Structural-quality steel and available finishes like Dura-Green and Dura-Copper enhance durability and visibility in harsh environments. These features translate to lower total cost of ownership and higher system reliability over the life of the installation.
Get a Quick Quote for a Eaton B12SHA-120HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B12SHA-120HDG?
Enquire Now
FAQs
Begin by planning the layout to minimize joints and ensure alignment with slotted holes. Verify accessory compatibility for cable trays, brackets, and clamps, then mount the back-to-back channel using standard fasteners. Route cables or pipes before final fastening, and tighten to recommended torque values. This approach reduces retrofit time and ensures a secure, compliant install.
The B12SHA-120HDG weighs 4.78 pounds per length and comes in a 120 inch length. The long, continuous channel reduces the number of connections needed on large-scale installations, improving rigidity and simplifying alignment during assembly. Ideal for creating uninterrupted support runs in machinery bays and electrical rooms.
Yes. It is designed as a back-to-back welded strut channel suitable for mounting electrical gear, cable trays, and mechanical equipment. Its 120 inch footprint supports extensive layouts, and its hot-dipped galvanized finish provides corrosion resistance in harsh environments. For critical electrical installations, verify project-specific standards and ensure compatibility with intended B-Line accessories.
The provided data lists Compliances and Certifications as Not Applicable. For projects requiring SIL, CE, IP, or other regulatory certifications, consult Eaton or the project engineer to confirm that the specific installation meets site requirements and any applicable industry standards before procurement.
Its modular design and compatibility with a broad line of B-Line accessories reduce the need for custom fabrication. The 120 inch length minimizes joints, lowering labor costs during installation. Corrosion resistance from hot-dipped galvanizing lowers maintenance needs, while standardized components simplify future upgrades and spare-part availability, delivering predictable total cost of ownership.
