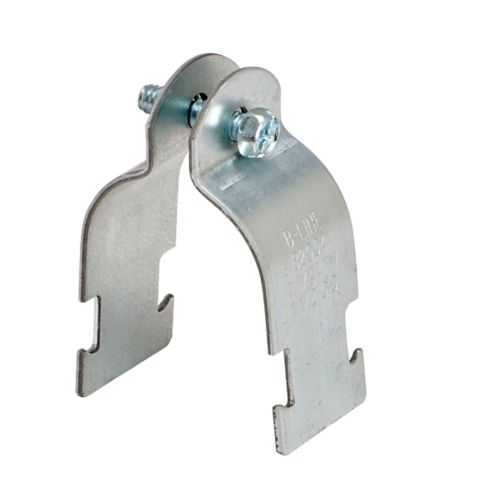

Eaton B2009HDG O.D. Pipe Clamp - 600 lb Load Capacity
Part Number: B2009HDG
Quick Summary
Eaton B2009HDG O.D. pipe and conduit clamp secures round tubing in electrical and data-center conduit runs. Installers often contend with vibration, misalignment, and corrosion when mounting pipe and conduit along ceilings and racks. This clamp lists Not Applicable for Certifications, but it aligns with industry expectations for durable, steel hardware and is designed to withstand typical industrial environments; for regulated deployments, always verify project specifications and the applicable standards in your datasheet. With its compact profile and robust load rating, it delivers reliable performance in commercial and industrial installations while integrating smoothly with existing B-Line strut systems and conduit assemblies.
Product Information
Extended Description
B2009HDG Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.0677" H x 2.6080" L x 1.25" W, Steel, 600 Lbs load cap
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2009HDG
UPC
781011601102
Product Length/Depth
2.608 in
Product Height
0.0677 in
Product Width
1.25 in
Product Weight
0.15 lb
Certifications
Not Applicable
Special features
Include combination recess hex head machine screw
Load capacity
600 lbs
Material
Steel
Feature → Business Impact → Application: The Eaton B2009HDG O.D. pipe and conduit clamp uses a compact 0.0677 inch high, 2.608 inch long, 1.25 inch wide steel body to minimize obstruction in tight installations, improving mounting density and reducing foil or chain clutter in cable trays. This geometry translates into faster installation and fewer components per run, boosting overall project efficiency in data centers, manufacturing floors, and utility rooms. Feature → Business Impact → Application: Load capacity rated at 600 pounds provides solid support for heavier conduit runs and secondary supports, reducing the need for multiple clamps and lowering labor costs during installation while maintaining system rigidity and vibration resistance in harsh environments. Feature → Business Impact → Application: The steel construction offers durable performance and, when paired with HDG finishes, improved corrosion resistance for long service life in exposed or humid environments; this supports maintenance-free operation in outdoor or shop-floor applications. Feature → Business Impact → Application: The included combination recess hex head machine screw simplifies fasten-off and eliminates the need for separate hardware, speeding up installation, ensuring consistent torque, and improving field reliability on industrial racks and mounting rails. Feature → Business Impact → Application: Compatibility with Eaton B-Line strut systems ensures quick integration with existing channel infrastructure, enabling modular upgrades, streamlined replacements, and scalable support for evolving electrical and mechanical installations across facilities. In practice, these attributes translate to measurable ROI through reduced install time, fewer call-backs for misalignment, and extended service life compared with generic clamps in similar applications.
Get a Quick Quote for a Eaton B2009HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2009HDG?
Enquire Now
FAQs
To install the B2009HDG clamp, align the clamp over the outer diameter of the pipe or conduit, insert the included combination recess hex head machine screw, and tighten to the recommended torque specified in the Eaton installation guide. The compact 0.0677 inch height minimizes clearance issues, while the 2.608 inch length and 1.25 inch width ensure a secure grip on standard O.D. tubing used in strut-mounted runs. Verify alignment with adjacent supports and ensure the screw seats fully against the mounting surface before final tightening.
This clamp is constructed from steel and is rated for a load capacity of 600 lbs, making it suitable for securing heavier conduit runs and pipe in both overhead and rack-mounted configurations. Its compact geometry supports dense installations, and the design includes a combination recess hex head screw for reliable installation. Material selection and the clamp’s geometry contribute to long-term mechanical stability in challenging environments.
Yes, the B2009HDG clamp is designed for compatibility with Eaton B-Line strut system components. Its dimensions and mounting features align with common B-Line channel profiles, enabling quick integration into existing installs and straightforward expansion or retrofit of conduit support as requirements evolve. This compatibility helps reduce project lead times and simplifies future upgrades.
The product record lists Certifications as Not Applicable for this item. For projects requiring CE, IP ratings, or SIL compliance, consult the official Eaton datasheet or contact the distributor to confirm suitable alternatives or additional protective hardware. Always verify your project’s regulatory requirements against the latest catalog guidance before deployment.
The B2009HDG clamp reduces maintenance by delivering durable steel construction, corrosion resistance (HDG option where specified), and a robust 600 lb load rating that minimizes the need for frequent replacements. Quick installation with included screws lowers labor costs, while reliable clamping reduces vibration-related wear. Over time, these factors translate into lower total cost of ownership and faster project commissioning.
