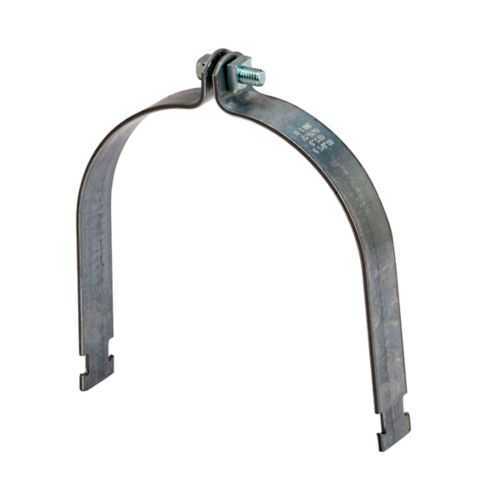

Eaton B2016HDG O.D. pipe and conduit clamp - 1000 lb rating
Part Number: B2016HDG
Quick Summary
The Eaton B2016HDG pipe and conduit clamp secures O.D. piping and conduits in industrial enclosures, delivering reliable support for demanding installations. Engineers often battle vibration, misalignment, and space constraints when mounting hardware in crowded racks, leading to maintenance downtime. With a robust steel design and a 1000 lb rating, this clamp minimizes rework and extends service life across HVAC, electrical, and data-center applications. Notably, the catalog lists certifications as Not Applicable, yet the product integrates seamlessly with Eaton B-Line systems for fast, compliant installation. In practice, installers gain predictable performance, reduced risk of conduit shift, and clear compatibility with standard strut and hangers used in modern electrical rooms.
Product Information
Extended Description
B2016HDG Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.0966" H x 6.1410" L x 1.25" W, Steel, 1000 Lbs load cap
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2016HDG
UPC
781011601775
Product Length/Depth
6.141 in
Product Height
0.0966 in
Product Width
1.25 in
Product Weight
0.61 lb
Certifications
Not Applicable
Special features
Includes combination recess hex head machine screw
Type
Pipe or conduit clamps
Load capacity
1000 lbs
Material
Steel
Feature: Heavy-duty steel construction and a 1000 lb load rating deliver substantial safety margins, reducing the risk of conduit failure and unscheduled downtime. Business Impact: Longer service life and fewer field replacements translate to lower maintenance costs and improved system reliability. Application: Ideal for electrical rooms, manufacturing floors, and data centers where heavy pipe and conduit runs demand durable support. Feature: O.D. pipe and conduit clamp design provides versatile mounting on rounded standards and supports networked installations. Business Impact: Simplifies installation across multiple racking configurations, improving project throughput. Application: Use with Eaton B-Line series for consistent fit and fast retrofits. Feature: Includes combination recess hex head machine screw for flush mounting. Business Impact: Snag-free installation and reduced tool-time in tight spaces. Application: Critical in crowded panels and ceiling runs. Feature: Compact dimensions of 6.141 in L, 1.25 in W, and 0.0966 in H offer a small footprint. Business Impact: Maximizes enclosure density and minimizes obstruction. Application: Suitable for space-constrained electrical closets. Feature: Steel construction ensures durability in industrial environments. Business Impact: Resists impact and wear in harsh plants, increasing uptime. Application: General purpose clamp across plant floors and service entrances.
Get a Quick Quote for a Eaton B2016HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2016HDG?
Enquire Now
FAQs
Yes. The B2016HDG is designed as a O.D. pipe and conduit clamp within Eaton’s B-Line series, providing a secure fit for round pipes and conduits used in typical electrical, data-center, and industrial enclosures.
The clamp is rated for up to 1000 lbs, offering a substantial margin for heavy pipe and conduit runs in equipment rooms and along wall-mounted racks.
The clamp includes a combination recess hex head machine screw, enabling flush mounting and reduced snagging in tight spaces.
The clamp measures 6.141 inches in length, 1.25 inches in width, and 0.0966 inches in height, constructed from steel for durability in demanding environments.
Certifications are listed as Not Applicable in the catalog; however, the part uses standard steel construction and is designed for installation within Eaton B-Line system configurations.
