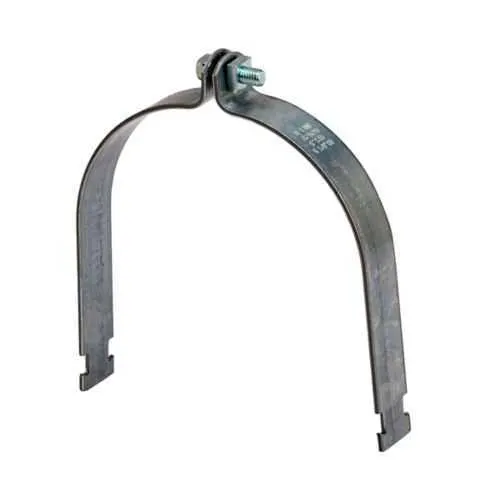

Eaton B2018ZN O.D. Pipe & Conduit Clamp - 1000 lbs Load Capacity
Part Number: B2018ZN
Quick Summary
The Eaton B2018ZN O.D. pipe and conduit clamp is a robust solution for securing pipes and conduits in industrial electrical installations. It delivers reliable support in constrained spaces where precise alignment and quick mounting matter most. Despite tight tolerances, the clamp accommodates standard mounting hardware with a combination recess hex head screw, simplifying field assembly. Certifications are Not Applicable for this part, but the steel construction and controlled dimensions deliver predictable performance in typical facility environments. This clamp integrates with Eaton's B-Line series and standard pipe and conduit systems, offering a familiar, scalable solution for growing infrastructure. By optimizing clamping force and minimizing installation time, it contributes to safer, more efficient electrical distribution and maintenance workflows.
Product Information
Extended Description
B2018ZN Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.12" H x 7.2970" L x 1.25" W, Steel, 1000 Lbs load cap
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2018ZN
UPC
781011611132
Product Length/Depth
7.297 in
Product Height
0.12 in
Product Width
1.25 in
Product Weight
0.7 lb
Certifications
Not Applicable
Special features
Includes combination recess hex head machine screw
Type
Pipe or conduit clamps
Load capacity
1000 lbs
Material
Steel
The Eaton B2018ZN is a pipe or conduit clamp in the B-Line series designed to secure O.D. pipes and conduits to support systems. Business impact: A compact, standard-size clamp minimizes field inventory and speeds installation in crowded electrical racks. Application: Commonly used in electrical rooms, data centers, and manufacturing floors where reliable routing and load stability are essential. Key dimensions and weight ensure predictable planning and installation ease: 7.297 in long, 0.12 in high, and 1.25 in wide, with a 0.7 lb weight and a 1000 lb load rating. Business impact: Slim profile enables mounting in tight spaces and reduces dead weight in overhead or ceiling runs. Application: Suitable for high-density installations where space is at a premium. Material and hardware: Steel construction with a combination recess hex head machine screw included. Business impact: Durable steel delivers long service life and consistent clamping force, minimizing maintenance and rework. Application: Works with standard fastening practices and Eaton accessories. Compatibility and installation advantages: Designed to align with B-Line series components and standard pipe/conduit diameters, reducing custom fabrication. Business impact: Faster, repeatable installations with fewer alignment errors. Application: Ideal for retrofit and new-build projects in facilities and data centers. Certifications and reliability: Certifications are Not Applicable; however, the clamp leverages Eaton’s quality processes and precise manufacturing. Business impact: Predictable performance reduces risk of clamp failure and supports compliant maintenance schedules. Application: Indoor electrical environments where steel clamps are appropriate.
Get a Quick Quote for a Eaton B2018ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2018ZN?
Enquire Now
FAQs
The B2018ZN is specifically designed as a pipe or conduit clamp within Eaton's B-Line series and uses standard mounting hardware. It fits O.D. pipe and conduits mounted to typical strut channels and ships with a combination recess hex head screw, enabling straightforward integration with existing support systems and minimal field modification.
Key specifications include a length of 7.297 inches, height of 0.12 inches, width of 1.25 inches, and a weight of 0.7 pounds. The clamp provides a load capacity of 1000 pounds and is made from steel. The UPC is 781011611132 and the catalog number is B2018ZN, which aids in precise ordering and maintenance records.
The product data lists Certifications as Not Applicable and does not specify an IP or CE rating. Therefore, it is best used in indoor or controlled environments where steel clamps are appropriate. For outdoor or harsh environments, consider additional protective enclosures or coatings and confirm environmental requirements with the system integrator.
The clamp includes a combination recess hex head machine screw as part of the hardware. No additional components are listed, so verify with Eaton’s catalog or datasheet if you require extra fasteners or accessories for a specific installation scenario.
With a 1000 lb load capacity and durable steel construction, the clamp offers long service life and resistance to routine field loads, reducing replacement frequency. Its compatibility with standard B-Line components and included fastener shortens installation time, lowering Labor costs and downtime, which contributes to a favorable total cost of ownership in data centers and manufacturing facilities.
