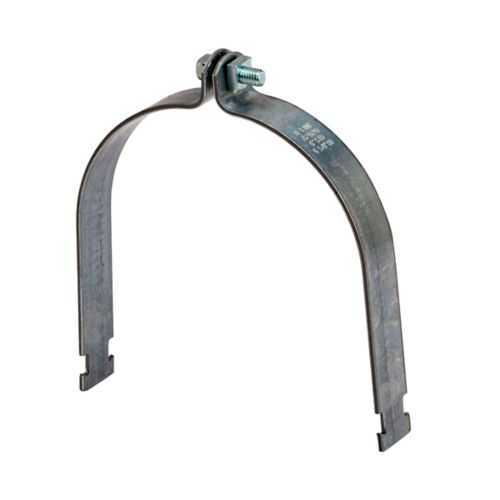

Eaton B2019SS4 O.D. pipe and conduit clamp - 1000 lbs
Part Number: B2019SS4
Quick Summary
Eaton B2019SS4 O.D. pipe clamp is a steel clamp designed to secure outer-diameter pipes and conduits in electrical installations. In tight spaces or vibration-prone environments, improper clamping can lead to misalignment, safety concerns, and costly downtime. This model lists certifications as Not Applicable, so verify regional requirements such as CE, IP ratings, or SIL standards as needed for your project. The clamp integrates with the B-Line series ecosystem to deliver installation-ready reliability, while its 7.969" length and 1.25" width support predictable layouts. For procurement, its compatibility with standard accessories helps streamline purchasing and field assembly, reducing project risk and total cost of ownership.
Product Information
Extended Description
B2019SS4 Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.1040" H x 7.9690" L x 1.25" W, Steel, 1000 Lbs load cap
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2019SS4
UPC
781011602086
Product Length/Depth
7.969 in
Product Height
0.104 in
Product Width
1.25 in
Product Weight
0.77 lb
Certifications
Not Applicable
Special features
Includes combination recess hex head machine screw
Type
Pipe or conduit clamps
Load capacity
1000 lbs
Material
Steel
Feature: Steel construction provides exceptional strength and durability. Business Impact: With robust steel, the clamp resists deformation under load and vibration, reducing maintenance cycles and replacement costs. Application: Ideal for long-lasting pipe and conduit support in manufacturing floors and electrical rooms, where reliability is critical. Feature: 1000 lbs load capacity. Business Impact: Supports heavy conduit and piping runs, improving installation integrity and lowering the likelihood of rework. Application: Suitable for industrial power distribution and machinery connections in harsh environments. Feature: Includes combination recess hex head machine screw. Business Impact: Speeds on-site installation with secure, tamper-resistant fasteners, cutting installation time and labor costs. Application: Quick mounting to strut channels and support systems during construct or retrofit projects. Feature: Precise dimensions (7.969 in L, 0.104 in H, 1.25 in W). Business Impact: Delivers predictable spacing and a clean, professional appearance in engineered layouts. Application: Fits standard B-Line clamping schemes and aligns with adjacent components for consistent installations. Feature: Part of Eaton B-Line series. Business Impact: Ensures broad compatibility with a wide range of clamps, hangers, and accessories, reducing procurement complexity. Application: Streamlines sourcing across electrical and automation projects in facilities and data environments. Feature: Steel material with notations for ease of engineering. Business Impact: Provides robust performance under industrial conditions while aligning with common fabrication tolerances. Application: Useful across installation environments from indoor plant floors to service corridors.
Get a Quick Quote for a Eaton B2019SS4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2019SS4?
Enquire Now
FAQs
Install the B2019SS4 by aligning the clamp with the O.D. pipe or conduit and securing it with the included combination recess hex head machine screw. The 7.969 in length and 1.25 in width fit standard B-Line layouts, while the 0.104 in height keeps profiles low. Use compatible strut channels to maintain alignment, and ensure the load does not exceed 1000 lbs. Regularly check tightness after commissioning and during periodic maintenance.
Yes. The clamp is designed for use with Eaton’s B-Line series and standard pipe/clamp ecosystems, enabling straightforward integration with common strut channels and hangers. Its metal finish and dimensions are chosen to align with typical layouts, improving interchangeability across projects and reducing procurement complexity.
This clamp supports pipe and conduit runs in electrical distribution, facility automation, and data-center cabling, where secure, vibration-resistant support is essential. Its 1000 lb load rating accommodates typical supply conduits and cables, while its hex-head screw design speeds installation and maintenance in retrofit and new-build projects.
The product data lists Certifications as Not Applicable. If your project requires CE, IP ratings, or SIL standards, verify regional regulatory requirements and consider alternative or additional components that carry the necessary certifications for your specific environment.
The 1000 lb load capacity and steel construction reduce the risk of conduit movement and rework, lowering maintenance and replacement costs over the lifecycle. The included hex head screws speed installation, decreasing labor hours during commissioning and future service, and compatibility with the B-Line ecosystem simplifies parts management and procurement.
