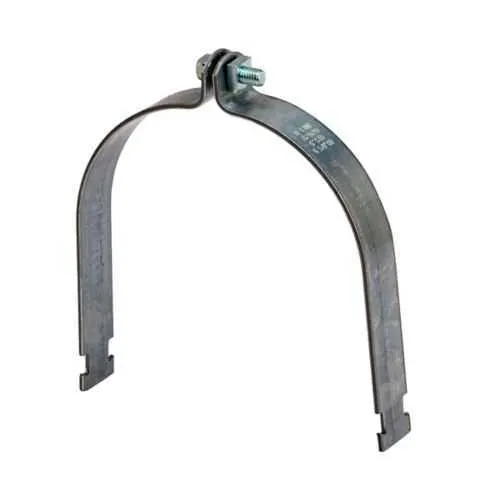

Eaton B2019ZN Pipe Clamp - 1000 lbs Load Capacity
Part Number: B2019ZN
Quick Summary
Eaton B2019ZN Pipe Clamp securely mounts O.D. pipes and conduits in electrical installations. Engineers often face vibration, misalignment, and space constraints that slow maintenance and upgrades. Certifications: Not Applicable; nevertheless, its steel construction and a 1000 lb load rating meet common industry expectations for durable conduit support. The included combination recess hex head machine screw speeds installation, while the compact form supports dense layouts in control rooms and industrial facilities.
Product Information
Extended Description
B2019ZN Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.12" H x 7.9690" L x 1.25" W, Steel, 1000 Lbs load cap
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2019ZN
UPC
781011611231
Product Length/Depth
7.969 in
Product Height
0.12 in
Product Width
1.25 in
Product Weight
0.77 lb
Certifications
Not Applicable
Special features
Includes combination recess hex head machine screw
Type
Pipe or conduit clamps
Load capacity
1000 lbs
Material
Steel
The B2019ZN is a steel O.D. pipe and conduit clamp from Eaton's B-Line series. It delivers a secure, vibration-resistant anchor that reduces conduit movement and failure risk on crowded runs. Use in electrical rooms, switchgear housings, and industrial automation installs where precise routing is needed. Compact profile provides a space-saving solution that enables denser installations and cleaner cable trays. The clamp carries a 1000 lb load capacity, supporting heavy conduits and minimizing sag across long runs or overhead supports. This model uses a combination recess hex head machine screw, speeding installation and reducing field adjustments. Its compatibility with the B-Line system simplifies retrofits and standardization across facilities, helping maintenance teams lower total cost of ownership. Durability and straightforward installation translate to reduced downtime during upgrades and more predictable project schedules.
Get a Quick Quote for a Eaton B2019ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2019ZN?
Enquire Now
FAQs
The B2019ZN is part of Eaton’s B-Line pipe and conduit clamp family and is compatible with O.D. pipes and conduits in standard B-Line installations. It uses a combination recess hex head machine screw for fast, tool-assisted mounting and aligns with common hanger systems to simplify retrofits. No special adapters required.
Key specs include a 0.12 in height, 7.969 in length, 1.25 in width, 0.77 lb weight, and a 1000 lb load capacity. Made from steel, catalog number B2019ZN, UPC 781011611231. These figures guide load routing, spacing, and tray layout in industrial installations.
Steel construction provides rigidity to resist movement, and proper fastening minimizes vibration-induced wear. For best results, mount clamps at defined intervals per layout drawings and use the included screws to ensure consistent clamping force across runs. Consider additional supports in highly dynamic installations.
Certifications field indicates Not Applicable for this model. For regulated applications, verify compatibility with your plant's standards and consult Eaton for project-specific approvals if required.
Using the B2019ZN can reduce maintenance downtime through faster installation with the hex head screw, fewer adjustments, and standardized components across the install. Its 1000 lb rating reduces the need for frequent replacements, supporting longer service life in demanding environments.
