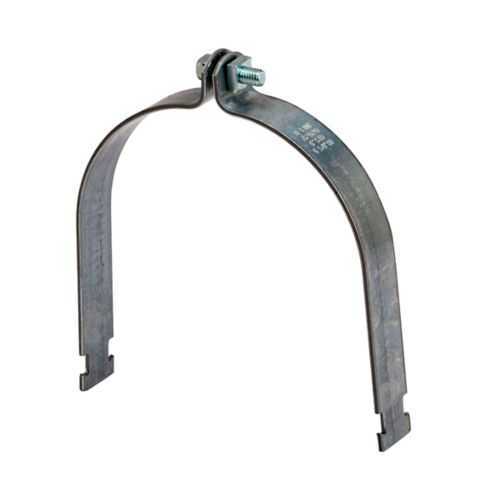

Eaton B2020AL O.D. pipe and conduit clamp - 1000 lbs
Part Number: B2020AL
Quick Summary
Eaton B2020AL is an O.D. pipe and conduit clamp used to secure aluminum conduit in electrical installations. Installers often struggle with loose fits and time-consuming mounting when clamps require extra tools or fail to align with standard conduit sizes. Note that the data lists Certifications as Not Applicable, but in practice engineers consider robust materials, fit, and load capacity as primary compliance indicators. The B2020AL also benefits from the included combination recess hex head machine screw, enabling faster, tool-friendly installation. This combination supports faster project timelines, reduced maintenance cycles, and scalable mounting across facilities.
Product Information
Extended Description
B2020AL Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.1280" H x 9.8750" L x 1.25" W, Aluminum, 1000 Lbs load cap
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2020AL
UPC
781011602147
Product Length/Depth
9.875 in
Product Height
0.128 in
Product Width
1.25 in
Product Weight
1 lb
Certifications
Not Applicable
Special features
Include combination recess hex head machine screw
Type
Conduit pipe clamp
Load capacity
1000 lbs
Material
Aluminum
Feature aluminum construction provides corrosion resistance and light weight. Business impact reduces maintenance costs and extends service life in harsh environments. Application ideal for outdoor or damp electrical installations where long-term performance matters. Feature 9.875 inch length supports standard conduit runs with minimal gap exposure. Business impact improves installation speed and alignment while minimizing rework. Application mount along beams or channel systems in data centers or industrial facilities. Feature low profile 0.128 inch height and 1.25 inch width enables fit in tight spaces. Business impact allows more attachment points in constrained panels, increasing routing options. Application enclosures with limited mounting depth. Feature 1000 lb load capacity confirms strong support for heavy conduits. Business impact ensures safety compliance and reduces need for secondary supports. Application heavy electrical feeds in manufacturing lines. Feature includes combination recess hex head machine screw for fast mounting. Business impact lowers tool-time and labor costs by simplifying installation. Application quick deployments in tight schedules across plant upgrades. Feature material and finish align with B-Line series compatibility. Business impact seamless integration minimizes stock diversity and procurement complexity. Application modular installations in commercial electrical rooms and industrial spaces.
Get a Quick Quote for a Eaton B2020AL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2020AL?
Enquire Now
FAQs
Yes, the B2020AL is designed for O.D. pipe and conduit in Eaton's B-Line series. It uses a combination recess hex head machine screw to simplify mounting, and can be fastened to standard supports and channel systems. Ensure the conduit is aligned before tightening to achieve the specified 1000 lb load capacity and prevent slippage.
This clamp measures 9.875 inches in length, 0.128 inches in height, and 1.25 inches in width, with a weight of 1 pound. It is constructed from aluminum for strength and corrosion resistance, and supports a 1000 lb load capacity.
Certification data lists Not Applicable for this item. For regulatory compliance in a given project, consult Eaton’s datasheets and local electrical codes to determine additional requirements.
Ideal for electrical rooms, data centers, and industrial facilities where secure O.D. pipe and conduit support is required. Its aluminum construction and 1000 lb rating support heavy conduit runs while maintaining a low profile in restricted spaces.
The combination recess hex head screw enables faster mounting, reducing labor time during installation and maintenance. Its light weight, corrosion resistance, and robust load capacity translate to lower torque-related wear and fewer call-backs for rework.
