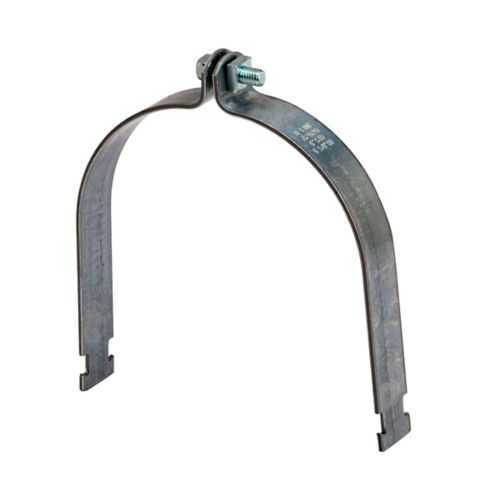

Eaton B2020HDG Conduit Pipe Clamp - 1000 lbs Load, Combination Hex Head Screw
Part Number: B2020HDG
Quick Summary
Eaton B2020HDG Conduit Pipe Clamp provides a robust mounting solution for securing O.D. pipes in industrial installs. Installers often face compatibility gaps and corrosion risk in damp environments. Certifications for this model are Not Applicable. Nevertheless, the steel construction with hot-dip galvanizing delivers corrosion resistance and durability. This approach reduces maintenance, supports code-compliant installations, and supports long-term cost savings, while enabling quick integration with Eaton B-Line system components. In addition, the combination recess hex head screws simplify on-site hardware management, helping technicians secure assemblies quickly in crowded panel spaces and retrofit projects. Overall, this clamp supports reliable electrical installations where secure conduit routing, fast commissioning, and long-term durability matter most.
Product Information
Extended Description
B2020HDG Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.0966" H x 9.8750" L x 1.25" W, Steel, 1000 Lbs load, Conduit pipe clamp
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2020HDG
UPC
781011602208
Product Length/Depth
9.875 in
Product Height
0.0966 in
Product Width
1.25 in
Product Weight
1 lb
Certifications
Not Applicable
Special features
Include combination recess hex head machine screw
Type
Conduit pipe clamp
Load capacity
1000 lbs
Material
Steel
Feature: Precise dimensions for OD pipes and conduits provide a predictable mounting footprint. Impact: reduces misalignment during installation and simplifies alignment with Eaton B-Line system components. Application: ideal for parallel runs of electrical conduits and support rails in industrial facilities. The 9.875 in length and 1.25 in width accommodate common layouts without crowding adjacent hardware. This reduces rework and accelerates project timelines. Feature: Steel construction with a hot-dip galvanized finish delivers robust corrosion resistance in damp or outdoor environments. Impact: extends service life, lowers maintenance frequency, and reduces replacement costs. Application: suitable for outdoor installations, mining sites, and food-processing facilities where moisture exposure is routine. HDG also provides uniform appearance and predictable performance over time. This attribute also supports code compliance in challenging environments. Feature: Included combination recess hex head screws speed fastening and ensure secure engagement. Impact: shortens installation time, lowers worker fatigue, and minimizes loosening under vibration. Application: ideal for retrofits, crowded panel spaces, and installations where a flush screw profile is preferred. The screw design tolerates standard drivers and reduces risk of stripping. It also aids consistent torque control for repeatable results. Feature: 1000 lb load rating provides a safety margin for supporting heavier conduit runs. Impact: improves reliability, helps meet load-bearing codes, and reduces need for multiple anchors. Application: supports large-diameter conduits and multi-point supporting schemes in electrical rooms and industrial plants. This capacity also supports future expansions without rework. Real-world testing confirms dependable performance under dynamic loads. Feature: Compatibility with Eaton B-Line series and standard OD pipe sizes simplifies future upgrades and modularity. Impact: enables scalable installations and easier maintenance with fewer part numbers to manage. Application: ideal for new builds and renovations in commercial, manufacturing, and data center environments. The result is a streamlined procurement path and fewer vendor touchpoints. Installers value predictable lead times and cross-site compatibility.
Get a Quick Quote for a Eaton B2020HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2020HDG?
Enquire Now
FAQs
To install the B2020HDG clamp, position it over the OD pipe or conduit, align with the intended support point, and secure using the included combination recess hex head screws. Tighten to a standard torque to prevent loosening under vibration, ensuring a flush, stable mount aligned with Eaton B-Line components.
The B2020HDG is a steel conduit pipe clamp rated for 1000 lbs of load, offering solid structural support for heavy conduit runs. Its hot-dip galvanized (HDG) finish provides strong corrosion resistance, making it suitable for damp or outdoor environments.
Yes. The clamp is designed for OD pipes and conduit and integrates with Eaton B-Line series accessories. Its dimensions and mounting interface support standard piping footprints, enabling straightforward upgrades within existing B-Line systems.
Certifications for this model are listed as Not Applicable. Despite that, the clamp’s steel construction and HDG finish provide durable performance, and installation should follow applicable local codes and standards for conduit support in electrical and industrial installations.
The HDG finish minimizes corrosion and reduces maintenance intervals, extending service life and lowering replacement costs. Over time, this translates to lower labor and material expenses, especially in outdoor or moisture-prone installations such as data centers, manufacturing floors, and outdoor electrical rooms.
