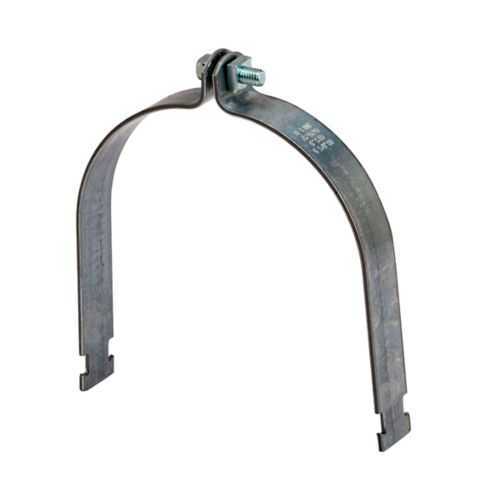

Eaton B2020YZN Conduit Pipe Clamp - 1000 lb Capacity
Part Number: B2020YZN
Quick Summary
The Eaton B2020YZN conduit pipe clamp securely attaches O.D. pipes and conduits in electrical installations. Engineers often contend with vibration, misalignment, and heavy loads that loosen clamps and drive maintenance downtime. Notably, this model carries a safety factor of 5 to help ensure reliability, while its 9.875 in length, 0.0966 in height, and 1.25 in width support stable, repeatable mounting. Certifications are not listed for this specific part, but the design emphasizes robust performance within Eaton’s B-Line family. For procurement teams, steel construction and precise dimensions translate to predictable installation, reduced rework, and a cleaner bill of materials when standardizing components for lighting and emergency systems.
Product Information
Extended Description
B2020YZN Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.0966" H x 9.8750" L x 1.25" W, Steel, 1000 Lbs load cap, Conduit pipe clamp
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2020YZN
UPC
781011869199
Product Length/Depth
9.875 in
Product Height
0.0966 in
Product Width
1.25 in
Product Weight
1 lb
Certifications
Not Applicable
Special features
Safety factor of 5 Include combination recess
Type
Conduit pipe clamp
Load capacity
1000 lbs
Material
Steel
Feature: O.D. pipe and conduit compatibility with a defined footprint (9.875 in L x 0.0966 in H x 1.25 in W). Business Impact: Minimizes movement and misalignment, improving installation accuracy and reducing maintenance calls. Application: Ideal for securing conduit runs in electrical rooms and industrial enclosures where space is tight and alignment is critical. Feature: 1000 lbs load capacity. Business Impact: Supports heavy feeder conduits and multiple cables, lowering the need for additional clamps and tightening cycles. Application: Main distribution trunks and high-capacity installations common in manufacturing facilities. Feature: Steel construction. Business Impact: Delivers high strength and durability in demanding environments, extending service life and reducing replacement costs. Application: Plant floors, switchgear areas, and outdoor-rated enclosures where mechanical robustness matters. Feature: Special features including a safety factor of 5 and a combination recess. Business Impact: Provides design margin for tolerance stacks and simplifies installation with recessed elements. Application: Fast, secure mounting within standardized B-Line layouts. Feature: Compatibility with Eaton B-Line series. Business Impact: Enables quick integration with existing supports, vendors, and accessories, reducing engineering time. Application: Retrofit projects and new builds that leverage a unified component ecosystem.
Get a Quick Quote for a Eaton B2020YZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2020YZN?
Enquire Now
FAQs
The B2020YZN is a conduit pipe clamp designed to secure O.D. pipes and conduit within Eaton’s B-Line system. It is ideal for lighting and emergency systems installations where secure, vibration-resistant mounting is essential and the 9.875 in length provides predictable support along runs.
This clamp is designed for O.D. pipe and conduit that fits the B-Line family. Its recessed features assist alignment, and its 9.875 in length with 1.25 in width ensures a consistent fit when paired with standard B-Line accessories.
Key performance specs include a load capacity of 1000 lbs, steel construction, and compact dimensions: 9.875 in length, 0.0966 in height, and 1.25 in width. The design also incorporates a safety factor of 5 for added margin.
Certifications are listed as Not Applicable in the provided spec. The product emphasizes a safety factor of 5 and robust steel construction, with compatibility primarily within Eaton’s B-Line system.
By providing a secure, high-capacity mounting solution, the clamp reduces the need for additional clamps, minimizes vibration-induced wear, and speeds commissioning. Its standardized dimensions support quicker installs and longer service life, contributing to lower lifecycle costs in industrial automation environments.
