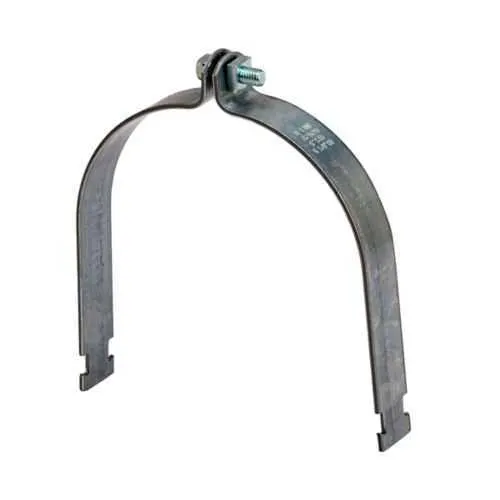

Eaton B2020ZN Conduit Pipe Clamp - 1000 lbs load cap
Part Number: B2020ZN
Quick Summary
Eaton B2020ZN conduit pipe clamp secures O.D. pipe runs in electrical installations. Industrial facilities face vibration, corrosion, and misalignment that drive maintenance costs and downtime. Certifications: Not Applicable; the clamp uses stainless steel for durability and is designed for standard electrical applications. This combination supports reliable mounting with a 1000 lb load capacity, while leveraging the B-Line compatibility to streamline procurement. This approach helps reduce field adjustments and procurement complexity, delivering predictable performance for data centers, manufacturing floors, and switchgear rooms.
Product Information
Extended Description
B2020ZN Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.12" H x 9.8750" L x 1.25" W, Stainless steel, 1000 Lbs load cap
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2020ZN
UPC
781011611330
Product Length/Depth
9.875 in
Product Height
0.12 in
Product Width
1.25 in
Product Weight
1 lb
Certifications
Not Applicable
Special features
Include combination recess hex head machine screw
Type
Conduit pipe clamp
Load capacity
1000 lbs
Material
Stainless steel
Feature: Stainless steel construction provides inherent corrosion resistance and extended service life. Business Impact: Reduces maintenance frequency and replacement costs in harsh environments, improving up-time. Application: Ideal for manufacturing floors, switchgear rooms, and outdoor installations where exposure to moisture is common. Feature: Compact, precise dimensions (9.875 in length, 0.12 in height, 1.25 in width) with a 1 lb weight. Business Impact: Easy handling and installation in tight spaces without compromising load performance. Application: Serves standard O.D. pipe and conduit runs within confined electrical setups. Feature: High load capacity of 1000 lbs. Business Impact: Provides confident support for vertical and horizontal conduit runs, reducing sag and movement. Application: Suitable for heavy conduit banks and high-vibration environments. Feature: Includes combination recess hex head machine screw. Business Impact: Accelerates installation and simplifies field retrofits with common tooling. Application: Streamlines fastener installation in new builds and refurbishments. Feature: Part of the B-Line series with broad compatibility. Business Impact: Simplifies material planning, reduces SKU proliferation, and improves design flexibility. Application: Integrates with standard strut channel systems for quick, scalable installations.
Get a Quick Quote for a Eaton B2020ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2020ZN?
Enquire Now
FAQs
The B2020ZN uses a combination recess hex head machine screw for secure fastening. Align the clamp with the O.D. conduit or pipe, slide into the chosen B-Line/strut arrangement, and tighten to the recommended torque. Its 9.875 in length provides ample clearance for typical conduit runs while preserving channel compatibility.
The clamp is made from stainless steel and rated for a 1000 lb load capacity, providing robust support for heavy conduit runs. Its stainless construction also offers corrosion resistance for longer service life in demanding environments.
Stainless steel construction delivers enhanced corrosion resistance, making it suitable for many indoor and some outdoor/damp settings. For extreme outdoor exposure or high-salt environments, confirm site-specific requirements and consider additional protective measures as needed.
Per the datasheet, certifications are listed as Not Applicable for this model. The clamp is designed for general electrical installations with stainless steel construction and a strong load rating, suitable for standard compliance in typical facilities.
With a combination recess hex head screw and compatibility with the B-Line system, installs are faster and more repeatable, reducing field labor. The stainless steel construction and 1000 lb rating lower maintenance and replacement needs, delivering long-term savings in uptime and lifecycle costs.
