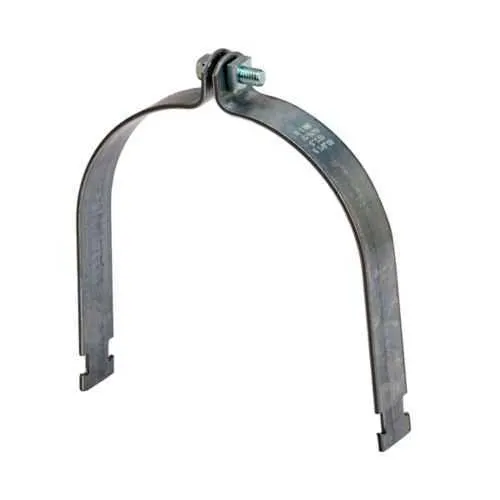

Eaton B2022HDG O.D. Pipe & Conduit Clamp - 1000 lbs
Part Number: B2022HDG
Quick Summary
Eaton B2022HDG O.D. pipe and conduit clamp provides secure support for overhead piping and conduit runs. It addresses the common challenge of securing robust supports in tight spaces without sacrificing installation speed or compliance with code requirements. While certifications are listed as Not Applicable, the steel construction and hot-dip galvanized finish deliver reliable corrosion resistance in harsh industrial environments. The clamp’s durable build supports long service life in lighting and emergency system installations, while its compatibility with Eaton B-Line series components helps standardize hardware across projects, driving procurement efficiency and predictable maintenance costs. Overall, it combines strength, durability, and ease of installation—key values for engineers and procurement teams managing complex electrical infrastructures.
Product Information
Extended Description
B2022HDG Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.0966" H x 12.3750" L x 1.25" W, Steel, 1000 Lbs load cap
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2022HDG
UPC
781011611552
Product Length/Depth
12.375 in
Product Height
0.0966 in
Product Width
1.25 in
Product Weight
1.28 lb
Certifications
Not Applicable
Special features
Include combination recess hex head machine screw
Type
Conduit pipe clamp
Load capacity
1000 lbs
Material
Steel
Feature: 1000 lbs load capacity and HDG finish translate to robust support for heavy conduit runs. Business Impact: Improves system reliability by reducing risk of deflection or failure under load, while the hot-dip galvanized finish extends service life in challenging environments. Application: Suitable for ceiling and beam-mounted piping in industrial lighting and emergency system installations. Feature: 12.375 in length provides a longer track for routing pipes and conduits along structural members. Business Impact: Enables fewer clamps per run, accelerating installation and reducing material counts. Application: Ideal for long-span supports in manufacturing facilities and data centers. Feature: 0.0966 in height and 1.25 in width offer a compact profile for tight clearance areas. Business Impact: Minimizes obstruction in crowded electrical rooms and behind equipment. Application: Fits constrained installations without compromising strength. Feature: Steel construction with HDG finish ensures durable, corrosion-resistant hardware. Business Impact: Lowers maintenance costs and replacement frequency over the life of the installation. Application: Preferred in harsh environments where exposure to moisture or chemicals is a concern. Feature: Includes combination recess hex head machine screw for fast installation. Business Impact: Speeds assembly and reduces tool-switching, improving on-site productivity. Application: Streamlines retrofits and new builds within the B-Line series ecosystem. Feature: Compatibility with Eaton B-Line series supports standardization across projects. Business Impact: Simplifies procurement, improves compatibility, and reduces training needs. Application: Works seamlessly with Eaton’s pipe clamps, hangers, and supports catalog for consistent hardware kits.
Get a Quick Quote for a Eaton B2022HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B2022HDG?
Enquire Now
FAQs
Yes. The B2022HDG is designed as an O.D. pipe and conduit clamp that integrates with Eaton B-Line series components. It includes a combination recess hex head machine screw for fast, tool-driven installation. For best results, pair it with standard B-Line strut channels and accessories specified in Eaton’s pipe clamps and hangers catalog.
The clamp is a steel construction rated for up to 1000 lbs of load capacity. It features a hot-dip galvanized finish (HDG) to provide corrosion resistance in challenging environments, making it suitable for overhead pipes and conduit runs in lighting and emergency systems installations.
Yes. The hot-dip galvanized HDG finish provides enhanced corrosion resistance, making it appropriate for outdoor or humid environments often found in industrial facilities. Its steel construction adds durability for long-term reliability in electrical installations requiring robust clamps and hangers.
Yes. The clamp includes a combination recess hex head machine screw as part of the fastener hardware. This supports quick installation without sourcing separate screws, which can reduce project lead times and improve installation efficiency on-site.
Official specifications are available from Eaton. You can access the Eaton Specification Sheet for B2022HDG and the Pipe clamps and hangers catalog section via Eaton’s website links provided in the product downloads section for precise measurements, installation guidance, and compatibility notes.
