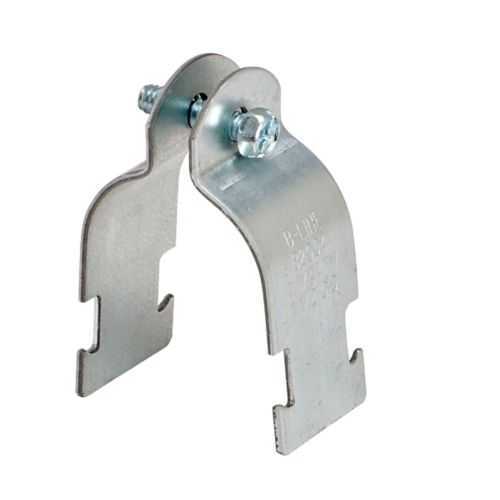

Eaton B2023ZN O.D. Pipe Clamp – 1/4-20 Bolt
Part Number: B2023ZN
Quick Summary
Eaton B2023ZN O.D. pipe clamp secures round conduits and pipes in industrial wiring and mounting applications. In tight spaces, misalignment and vibration can slow installs and increase maintenance costs. While this clamp lists Not Applicable for certifications, CE, IP, and SIL ratings are not specified in the datasheet, so confirm local compliance as needed. The steel construction and 1/4-20 bolt provide durable, reliable support within B-Line systems, delivering fast, repeatable mounting and long service life while reducing downtime and installation risk.
Product Information
Extended Description
B2023ZN Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.0625" H x 1.6170" L x 1.25" W, Steel, 1/4"-20 bolt/pin size
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2023ZN
UPC
781011613037
Product Length/Depth
1.617 in
Product Height
0.0625 in
Product Width
1.25 in
Product Weight
0.08 lb
Certifications
Not Applicable
Bolt/pin size
1/4"-20
Special features
Include combination recess hex head machine screw
Type
O.D pipe conduit clamp
Material
Steel
Feature: Steel construction delivers robust durability in demanding environments. Benefit: Reduces replacement frequency and maintenance costs, improving total cost of ownership for conduit support. Application: Ideal for long-term installations in lighting and emergency systems that require dependable O.D. pipe clamps. Feature: 1/4-20 bolt size with a combination recess hex head machine screw. Benefit: Enables quick, tool-ready installation with common hand tools, minimizing on-site torque time and rework. Application: Suitable for fast clamping in crowded electrical racks and channel systems where space is at a premium. Feature: Defined dimensions—1.617 in length, 0.0625 in height, 1.25 in width. Benefit: Predictable fit within strut and B-Line channel networks, reducing the need for additional spacers or adapters. Application: Compatible with standard O.D. conduit runs in commercial electrical rooms and industrial facilities. Feature: Material/finish—Steel. Benefit: High strength-to-weight ratio supports rugged service life against impact and vibration. Application: Used in lighting and emergency systems installations where硬-wearing hardware is mandatory. Feature: Special features include the combination recess hex head screw. Benefit: Improves security and reduces tool variety required on site. Application: Streamlines installation workflows for contractors and maintenance teams.
