Eaton B2055HDG O.D. Pipe Clamp - 1000 lb Capacity
Part Number: B2055HDG
Quick Summary
Eaton B2055HDG O.D. pipe clamp secures pipe and conduit runs in electrical and mechanical installations. Engineers often struggle with vibration, misalignment, and variable loads in crowded racks and panels. No formal certifications are listed for this model, but its steel construction and 1000 lb load rating support durable, code-compliant installs. Designed for fast, reliable mounting with a 5/16-18 bolt and intuitive fit into B-Line hardware ecosystems, it helps reduce downtime and maintenance. The design includes a safety factor of 5 with a combination recess for secure, compliant mounting. This makes it a practical choice for data centers, manufacturing floors, and serviceable remote sites.
Product Information
Extended Description

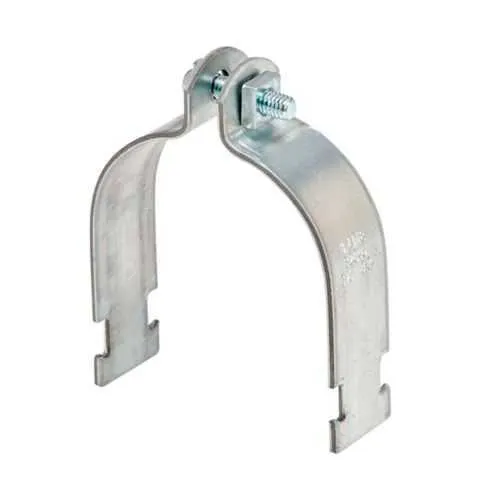

B2055HDG Eaton: Eaton B-Line series O.D. pipe and conduit clamp, 0.0966" H x 6.4220" L x 1.25" W, Steel, 1000 Lbs load cap, 5/16"-18 bolt/pin size
Product Name
Eaton B-Line series O.D. pipe and conduit clamp
Catalog Number
B2055HDG
UPC
781011870355
Product Length/Depth
6.422 in
Product Height
0.0966 in
Product Width
1.25 in
Product Weight
0.62 lb
Certifications
Not Applicable
Bolt/pin size
5/16"-18
Special features
Safety factor of 5 Include combination recess
Type
O.D pipe conduit clamp
Load capacity
1000 lbs
Material
Steel
Feature: The Eaton B2055HDG O.D. pipe and conduit clamp is sized at 6.422 in long with a 1.25 in width and 0.0966 in height, and uses a 5/16-18 bolt for secure mounting. Business Impact: This precise geometry ensures predictable load distribution, minimizes bending moments on the support structure, and reduces misalignment in crowded installations where space is at a premium. Application: Ideal for overhead runs and support in electrical rooms, data centers, manufacturing floors, and serviceable industrial spaces where reliable conduit management is essential. Feature: Steel construction delivers high strength-to-weight performance while resisting deformation under heavy loads and long-term cycling. Business Impact: The clamp supports up to 1000 lbs, providing a robust safety margin and reducing the need for supplementary supports or aftermarket bracing. Application: Suitable for both vertical and horizontal conduits within standard B-Line strut-based systems, helping maintain code-compliant, long-life installations in harsh industrial environments. Feature: Safety factor of 5 combined with a deliberate combination recess adds extra margin against dynamic loads, vibration, and inadvertent loosening. Business Impact: This design lowers maintenance costs and downtime by reducing retightening intervals and component fatigue. Application: Critical for seismic zones, vibration-rich automation lines, and high-cycle electrical infrastructure where secure clamping directly affects system reliability. Feature: Compatibility with standard B-Line components enables fast integration into existing pipe-hanging systems, improving project velocity and reducing inventory variety. Business Impact: Simplifies retrofits and upgrades, supports modularity, and minimizes downtime during changes, while preserving compatibility with common 5/16-18 hardware and accessories. Application: Best for facility upgrades, retrofit projects in data centers, and new-builds that rely on a consistent B-Line ecosystem. Feature: Documentation and support data include a dedicated pipe clamps and hangers catalog section and the Eaton specification sheet for B2055HDG, plus access to catalogs online. Business Impact: Ready access to installation guidance, torque ranges, and mounting recommendations helps procurement and technicians verify compatibility and compliance before ordering, reducing risk of misfit parts. Application: Use during project scoping, training, and ongoing maintenance programs to streamline operations.
