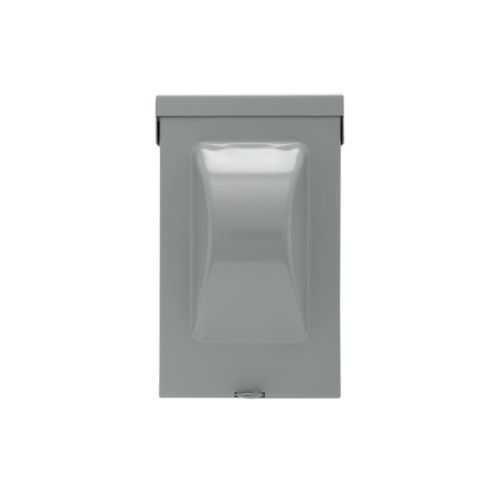

Eaton B222-60NFNA Air Conditioning Disconnect - 60A MCCS
Part Number: B222-60NFNA
Quick Summary
Eaton air conditioning disconnect provides a safe, reliable isolation point for HVAC equipment in commercial and industrial settings. Many projects struggle with nuisance trips and incomplete isolation that disrupt service and drive up maintenance costs. Certifications: Contact Manufacturer for official listings; when available, CE marking or UL recognition may apply depending on market. This solution supports robust protection, compatible with Eaton’s broader protection portfolio, while delivering dependable performance for HVAC controls and field retrofit projects. Cost-effective, space-conscious, and designed to integrate with standard electrical protection schemes, it helps engineers deliver safer installations and faster commissioning.
Product Information
Extended Description
B222-60NFNA Eaton: Eaton air conditioning disconnect, 60A/2P Air Conditioning Disconnect (Molded Case Switch)
Product Name
Eaton air conditioning disconnect
Catalog Number
B222-60NFNA
UPC
782114621714
Product Length/Depth
20 in
Product Height
9.5 in
Product Width
11.4 in
Product Weight
33.1 lb
Certifications
Contact Manufacturer
Type
Air conditioning disconnect
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - B222-60NFNA
Bussmann series Fused and non-fused HVAC disconnects data sheet no. 1143
Bussmann series Fused and non-fused HVAC disconnects data sheet no. 1143
Feature: 60A/2P air conditioning disconnect delivers robust, code-ready isolation for HVAC equipment. Business Impact: Minimizes nuisance trips and enhances personnel safety, reducing downtime and service calls. Application: Suitable for commercial and industrial HVAC installations where reliable isolation is mandatory for service and safety protocols. Feature: Molded case switch design provides rugged durability and predictable performance under start-up transients. Business Impact: Extends equipment life and lowers maintenance costs by resisting arcing and electrical wear. Application: Outdoor condenser units and indoor air handling equipment in challenging environments. Feature: Precise dimensions—20 in L x 11.4 in W x 9.5 in H—with a weight of 33.1 lb. Business Impact: Simplifies enclosure planning and panel integration, enabling quicker field assembly and fewer fitment issues. Application: Retrofit projects and new builds where space constraints are a key constraint. Feature: Clear cataloging and documentation with Eaton data sheets and spec sheets. Business Impact: Streamlines procurement, engineering approvals, and commissioning with accurate, accessible specifications. Application: Design verification and parts replacement in HVAC control panels. Feature: Catalog presence and part continuity (B222-60NFNA) supports long-term spares strategy. Business Impact: Reduces downtime risk and inventory complexity by standardizing on a stable HVAC disconnect platform. Application: Maintenance planning and asset management for facilities teams.
Get a Quick Quote for a Eaton B222-60NFNA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B222-60NFNA?
Enquire Now
FAQs
The B222-60NFNA is a 60A/2P air conditioning disconnect with molded case switch design, designed to fit standard install configurations used with HVAC disconnects. Verify enclosure cutouts and mounting hardware in your panel schedule, and use compatible lugs and bus connections per Eaton installation instructions to ensure proper alignment and safe operation.
Key specifications include a 60A current rating and 2-pole configuration. The unit is designed as an air conditioning disconnect with a molded case switch topology, suitable for HVAC circuits. For precise electrical characteristics, consult the Eaton specification sheet (B222-60NFNA) and ensure conductor size, short-circuit protection, and enclosure ratings meet your project’s requirements.
The product is listed for residential and light commercial HVAC disconnect use. It provides reliable isolation for HVAC equipment in these settings, supporting safe service access and compliance with typical HVAC protection practices. Always verify local codes and project specifications to confirm suitability for your application.
Certification details are provided by Eaton and may vary by market. For official listings, contact the manufacturer. In general, HVAC disconnects like this can be supported by CE marking or UL recognition where applicable, depending on the region and regulatory requirements. Request the latest certification documentation from Eaton to ensure compliance.
The B222-60NFNA supports safer, code-compliant isolation, which reduces field incidents and unplanned downtime. Its standard dimensions and documentation streamline procurement and commissioning, contributing to faster project timelines and lower maintenance costs over the equipment’s life. A consistent, robust disconnect also lowers risk during service and improves asset uptime.
