Eaton B22A-240PLN Strut Channel - Welded Back-to-Back
Part Number: B22A-240PLN
Quick Summary
The Eaton B22A-240PLN Strut Channel provides robust mounting rails for electrical and mechanical installations in industrial facilities. Installers often battle gaps, misalignment, and wasted time when adapting rails for complex layouts; this back-to-back welded channel helps eliminate those pain points with a continuous run. Certifications listed are Not Applicable in this catalog entry; consult Eaton datasheets for region-specific CE, SIL or IP requirements if needed. Designed to work with standard B-Line accessories and 12 gauge steel construction, it delivers reliable support with quick assembly, reducing downtime and total cost of ownership in harsh industrial environments. This makes it a dependable choice for streamlined installations and long-term reliability.
Product Information
Extended Description

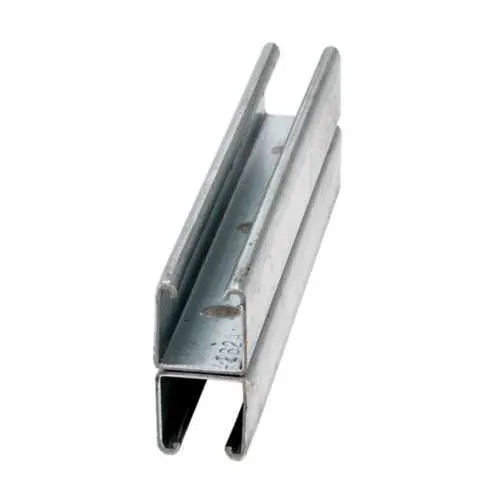

B22A-240PLN Eaton: Eaton B-Line series strut back-to-back welded channel, 1.62" H x 240" L x 1.62" W, Steel, Plain, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B22A-240PLN
UPC
781011217150
Product Length/Depth
12 in
Product Height
3.25 in
Product Width
1.625 in
Product Weight
3.584 lb
Certifications
Not Applicable
Channel type
B22
Finish
Plain
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B22A-240PLN
Dura-Green finish overview
Feature: Back-to-back welded channel design creates a continuous mounting plane. Benefit: Improves alignment accuracy and reduces installation time, enabling faster project completion. Application: Overhead electrical supports and mechanical runs in manufacturing and data centers. Feature: 12 Gauge steel with a plain finish. Benefit: Provides robust load capacity with a durable, simple surface for mounting hardware. Application: Heavy-duty support structures for conduit, cable trays, and equipment racks. Feature: Dimensions and weight (1.625 in width, 3.25 in height, 12 in length, 3.584 lb). Benefit: Predictable fit with standard fittings and easy handling on-site. Application: Tight-space installations where precise rail sizing matters. Feature: Compatibility with Eaton Channel and Combinations Catalog and standard fittings. Benefit: Quick accessory integration, reducing procurement complexity and inventory costs. Application: Industrial plants needing modular, scalable mounting systems. Feature: Plain finish and steel construction with clear spec data. Benefit: Straightforward inspection and maintenance planning, with clear replacement parts and service guidance. Application: OEM and retrofit projects emphasizing uptime and straightforward maintenance. Insight: In many facilities, using a back-to-back welded B-Line strut channel minimizes joint gaps and improves safety by providing continuous support for heavy loads and long spans, especially when used with compatible channel nuts and bracing accessories.
