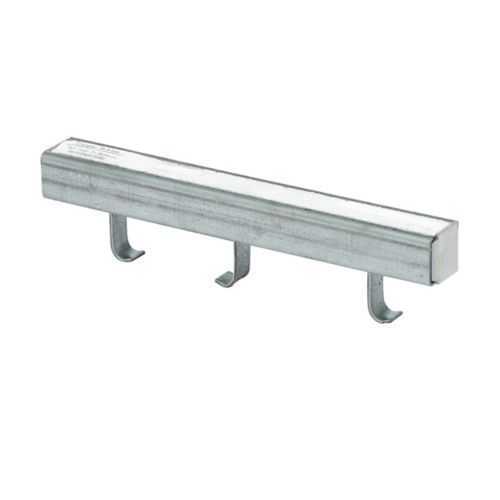

Eaton B22I-60SS6 Continuous Concrete Insert - cUL Listed
Part Number: B22I-60SS6
Quick Summary
Eaton B22I-60SS6 continuous concrete insert is designed to anchor loads in B22 channel for concrete floor applications. Engineers and installers often wrestle with securing floor inserts that resist impact, corrosion, and misalignment. This unit carries cUL Listed certification and is fabricated from stainless steel type 316 in 12 gauge, delivering durable, code-compliant performance. With a 60 in length, 3.1 in height, and 1.6 in width, plus a 3000 lb load rating, it provides reliable, long-term support for industrial facilities. As part of Eaton's B-Line series, it integrates smoothly with existing channel systems, reducing field modifications and maintenance costs.
Product Information
Extended Description
B22I-60SS6 Eaton: Eaton B-Line series continuous concrete insert for B22 channel, 3.1" H x 60" L x 1.6" W, 3000 load cap, Stainless steel type 316, 12 gauge
Product Name
Eaton B-Line series continuous concrete insert for B22 channel
Catalog Number
B22I-60SS6
UPC
782051690835
Product Length/Depth
60 in
Product Height
3.1 in
Product Width
1.6 in
Product Weight
1018 lb
Certifications
cUL Listed
Finish
Stainless steel type 316
Material
Steel
Material gauge
12 gauge
Model
B22
Load capacity
3000 lbs
Continuous concrete inserts catalog section
Continuous concrete inserts catalog section
Eaton Specification Sheet - B22I-60SS6
Feature: 60 in length provides a continuous load path across long floor spans. Business Impact: Reduces joint-related stress points and installation time, improving overall structural reliability. Application: Ideal for large-area concrete floor installations in manufacturing or warehousing with B22 channel runs. Feature: 3.1 in product height minimizes required clearance while maintaining strength. Business Impact: Enables tighter installation envelopes in constrained spaces without sacrificing support. Application: Suitable for retrofit projects where vertical clearance is limited yet high-load support is needed. Feature: 1.6 in width ensures compatibility with standard B22 channels. Business Impact: Simplifies sourcing and integration with existing infrastructure, cutting through-comparison time. Application: Works with Eaton B-Line channel systems for rapid deployment. Feature: Stainless steel type 316 and 12 gauge construction. Business Impact: Delivers excellent corrosion resistance and durability in harsh environments, extending service life. Application: Industrial facilities with moisture, chemicals, or wash-down areas benefit from this material choice. Feature: 3000 lb load capacity. Business Impact: Supports heavy railings, equipment mounts, and seismic-resistant configurations without deformation. Application: Critical in factories, distribution centers, and seismic-prone regions. Feature: cUL Listed certification. Business Impact: Provides third-party safety validation aligning with electrical and mechanical installation codes. Application: Essential for compliant installations in North American facilities and joint-use spaces.
Get a Quick Quote for a Eaton B22I-60SS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B22I-60SS6?
Enquire Now
FAQs
Yes. The B22I-60SS6 is designed specifically for B-Line B22 channel systems and comes in a standard 60 inch length. Its 3.1 inch height and 1.6 inch width align with the channel dimensions, enabling straightforward integration with existing components and accessories used in concrete floor installations.
The insert provides a 3000 lb load capacity and is made from stainless steel type 316 with a 12 gauge thickness. This combination offers robust strength and excellent corrosion resistance, suitable for demanding industrial environments and long service life.
Stainless steel 316 is recommended for harsh environments, including moisture-prone, chemical exposure, and wash-down facilities. The material’s corrosion resistance helps maintain structural integrity for floor insert applications in manufacturing, warehousing, and seismic-resisting installations.
The B22I-60SS6 is cUL Listed, providing recognized safety certification for electrical/mechanical installations in North America. This certification supports compliance with relevant safety standards when integrating with B-Line channel systems in concrete floor constructions.
By using 316 stainless steel and delivering a high load rating, the insert minimizes corrosion-related maintenance and reduces field modifications. Its durability translates to longer service life, lower replacement frequency, and predictable performance across industrial facilities, contributing to lower total cost of ownership.
