Eaton B22I-96HDG Concrete Insert - cUL Listed
Part Number: B22I-96HDG
Quick Summary
The Eaton B22I-96HDG concrete insert anchors equipment in B22 channel, delivering secure, durable concrete support. Installers often battle corrosion, misalignment, and lengthy lead times when integrating channel inserts into poured concrete. This model carries a cUL Listed certification for safety compliance and uses hot-dipped galvanized steel for corrosion resistance. Designed for reliable, long-life performance in industrial facilities, it complements B-Line solutions and reduces installation risk. With 96 in length, 3.1 in height, and 1.6 in width, it provides precise fit within B22 channels, streamlining field assembly. Its 12-gauge steel and hot-dipped finish offer robust load performance up to 3000 lb and dependable service in harsh environments.
Product Information
Extended Description

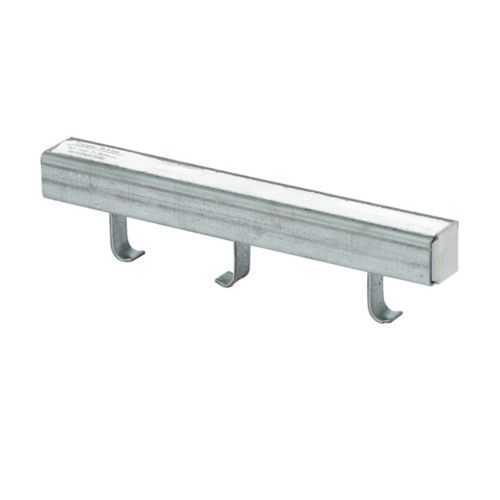

B22I-96HDG Eaton: Eaton B-Line series continuous concrete insert for B22 channel, 3.1"H x 96"L x 1.6"W, Steel, 3000 load cap, Hot-dipped galvanized, 12 gauge
Product Name
Eaton B-Line series continuous concrete insert for B22 channel
Catalog Number
B22I-96HDG
UPC
781011299866
Product Length/Depth
96 in
Product Height
3.1 in
Product Width
1.6 in
Product Weight
1616 lb
Certifications
cUL Listed
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
12 gauge
Model
B22
Load capacity
3000 lbs
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Seismic bracing for mechanical, electrical, and plumbing systems catalog
B-Line engineering services line card
Eaton Specification Sheet - B22I-96HDG
Long-format insertion provides continuous anchoring along the B22 channel, reducing joints and field welding for faster installation and lower labor costs in large deployments such as data centers and manufacturing floors. The hot-dipped galvanized steel construction delivers corrosion resistance in concrete pours and damp environments, extending service life in outdoor or wash-down areas, which translates to lower maintenance and fewer replacements. A 3000 lb load capacity supports heavy equipment and seismic bracing joints, enabling engineers to optimize anchor locations with confidence and reduce rework due to unexpected deflections. Certified cUL Listed, the insert aligns with electrical and safety codes, accelerating procurement approvals and project timelines. Designed for Eaton’s B-Line series compatibility, it simplifies stocking and future upgrades, while the 96 in length and 3.1 in by 1.6 in footprint ensure a precise, repeatable fit along B22 channel runs. Overall, this concrete insert delivers durable performance, predictable installation outcomes, and a clear path to compliant, scalable infrastructure.
Get a Quick Quote for a Eaton B22I-96HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B22I-96HDG?
Enquire Now
FAQs
Begin by confirming the B22 channel alignment and the concrete pour requirements. Install the 96 inch insert flush along the channel, ensuring full contact with the poured substrate. Secure with compatible hardware, verify the 3.1 inch height and 1.6 inch width fit, and inspect for straight, uninterrupted alignment. Follow site-specific safety and code standards throughout the process.
The B22I-96HDG is rated for up to 3000 lbs of load capacity. When planning, factor in dynamic loads, equipment vibrations, and seismic considerations. Always validate final load paths with a structural engineer and ensure anchorage points align with the 96 inch length and B22 channel geometry for accurate distribution.
Yes, the B22I-96HDG is compatible with seismic bracing strategies within Eaton’s B-Line ecosystem. Leverage the cataloged seismic bracing guidance to position anchors and bracing members. Ensure the combined system meets project-specific seismic and safety requirements, and consult the relevant Eaton catalogs for recommended installation patterns and load combinations.
The B22I-96HDG carries a cUL Listed certification, indicating compliance with applicable safety standards for electrical installations and related equipment. For project teams, this certification supports regulatory approvals and helps streamline procurement, warranty, and maintenance planning within commercial and industrial facilities.
The insert is manufactured from steel using a 12 gauge thickness and finished with hot-dipped galvanization. This combination provides robust mechanical strength and enhanced corrosion resistance, suitable for concrete pours and damp environments. The durable finish helps extend service life in demanding industrial settings and reduces maintenance frequency.
