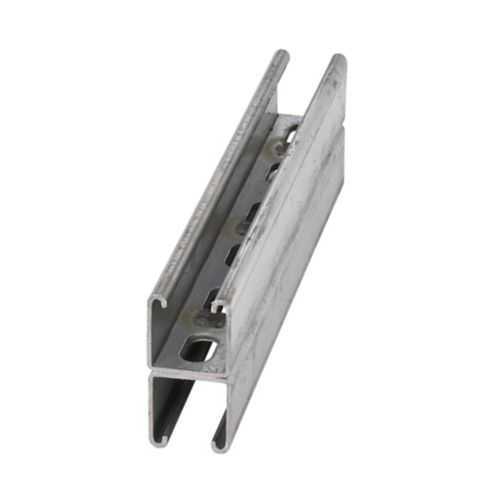

Eaton B22SHA-120SS4 Strut Channel - Stainless 304, 12 Gauge
Part Number: B22SHA-120SS4
Quick Summary
Eaton B22SHA-120SS4 Strut Channel provides robust back-to-back support for electrical and mechanical mounting in industrial facilities. Many projects suffer from misalignment and weak joints over long spans, especially during retrofits. Note that the provided data lists Certifications as Not Applicable; for projects requiring CE, UL, or ISO quality standards, consult Eaton’s official spec sheet. The B-Line strut channel delivers corrosion resistance and compatibility with standard fittings, enabling faster installs, fewer rework cycles, and lower life-cycle costs in data centers, manufacturing floors, and utility rooms.
Product Information
Extended Description
B22SHA-120SS4 Eaton: Eaton B-Line series strut back-to-back welded channel, 1.62" H x 120" L x 1.62" W, Steel, Stainless steel type 304, SHA, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B22SHA-120SS4
UPC
781011841539
Product Length/Depth
120 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
36.4 lb
Certifications
Not Applicable
Channel type
B22
Hole pattern
SHA
Finish
Stainless steel type 304
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B22SHA-120SS4
Dura-Green finish overview
Feature: Stainless steel type 304 and 12 Gauge provides inherent corrosion resistance and high load capacity. Benefit: Extends service life in harsh environments while reducing maintenance intervals. Application: Ideal for damp or cleanroom areas where reliability is critical and downtime is costly. Feature: 1.62 in height and 1.62 in width with a 120 in length enables long, continuous runs with precise alignment. Benefit: Improves installation speed and reduces field cutting or splicing. Application: Overhead and wall-mounted runs for electrical and mechanical systems. Feature: SHA hole pattern supports versatile fastening with common hardware. Benefit: Simplifies part compatibility and stock management. Application: Quick-mitigation of non-standard mounting requires. Feature: Back-to-back welded channel enhances rigidity. Benefit: Minimizes flex and vibration, improving system performance. Application: Data centers, process plants, and panel mounting. Feature: Catalog number B22SHA-120SS4 ensures straightforward procurement. Benefit: Streamlines ordering and compatibility with Eaton’s B-Line ecosystem. Application: System-wide upgrades and new builds.
Get a Quick Quote for a Eaton B22SHA-120SS4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B22SHA-120SS4?
Enquire Now
FAQs
Yes. This model uses the SHA hole pattern and is designed to integrate with standard Eaton B-Line strut fittings, brackets, and accessories. For best results, pair with the corresponding B-Line components to maintain alignment and loading performance across long spans.
Key specs include catalog number B22SHA-120SS4, 120 in length, 1.62 in height, 1.62 in width, 12 gauge steel, stainless steel type 304, and SHA hole pattern. The channel is back-to-back welded and weighs 36.4 lb, with a stainless finish suitable for corrosion resistance.
The channel uses stainless steel type 304, which offers good corrosion resistance for many indoor and moderate outdoor environments. For extreme exposure, verify regional standards and consider protective coatings or alternative finishes; consult Eaton datasheets for environmental ratings and installation guidance.
The provided data lists Certifications as Not Applicable. For projects requiring CE, UL, or region-specific certifications, review Eaton’s official specification sheet or contact Eaton support to confirm current compliance status for your application.
Expect lower maintenance and faster installation due to stainless 304’s durability and the SHA-compatible fit. The back-to-back welded design improves rigidity for long spans, reducing rework and downtime, which translates to lower life-cycle costs in large-scale installations.
