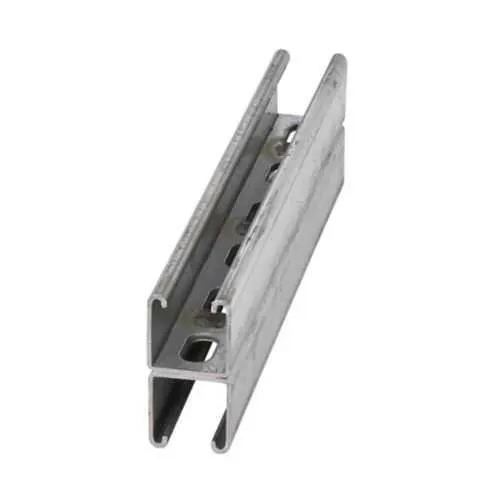

Eaton B22SHA-120SS6 Strut Channel - Stainless 316
Part Number: B22SHA-120SS6
Quick Summary
The Eaton B22SHA-120SS6 Strut Channel provides rugged back-to-back support for industrial enclosures and electrical/mechanical installations. Installers often struggle with misalignment and corrosion in long runs; the back-to-back welded design paired with 316 stainless steel mitigates both issues and simplifies field adjustments. Certifications are Not Applicable for this item, but the stainless steel 316 finish delivers proven corrosion resistance for demanding environments while the SHA hole pattern supports versatile mounting with standard channel nuts. This product integrates with the Eaton B-Line strut ecosystem to deliver reliable, long-term performance in data centers, industrial plants, and equipment rooms. Additional benefits come from its compatibility with common accessories and modular layout for scalable installations.
Product Information
Extended Description
B22SHA-120SS6 Eaton: Eaton B-Line series strut back-to-back welded channel, 1.62" H x 120" L x 1.62" W, Steel, Stainless steel type 316, SHA, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B22SHA-120SS6
UPC
782051217285
Product Length/Depth
120 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
36.4 lb
Certifications
Not Applicable
Channel type
B22
Hole pattern
SHA
Finish
Stainless steel type 316
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B22SHA-120SS6
Dura-Green finish overview
Back-to-back welded channel with SHA holes enables flexible mounting and precise alignment, improving install accuracy and reducing field welding. In practice, this translates to fewer rework instances and faster rack-outfitting for electrical rooms and data centers. The 316 stainless finish over steel substrate provides exceptional corrosion resistance, lowering maintenance costs in humid, coastal, or washdown environments and extending service life in data centers, industrial plants, and harsh facilities. With a 120 in length, 1.62 in height and width, and 12 gauge steel, the channel delivers rigid, predictable load distribution for long-span supports and equipment mounting, reducing sag and misalignment risks. Compatibility with Eaton B-Line strut accessories simplifies procurement and ensures a modular, scalable installation path. The pre-welded back-to-back design minimizes on-site welding, speeding up installation and reducing labor costs for large-scale projects.
Get a Quick Quote for a Eaton B22SHA-120SS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B22SHA-120SS6?
Enquire Now
FAQs
B22SHA-120SS6 uses the SHA hole pattern and is designed for use with standard Eaton B-Line strut nuts and fittings. For best results, verify lane alignment for long runs, plan joint locations to minimize cutting, and select compatible accessories that suit your enclosure or rack footprint. The 120 inch length reduces the number of field joints, speeding up deployment in data centers and mechanical rooms.
Key specs include length: 120 in, height and width: 1.62 in each, material: steel with stainless steel type 316 finish, gauge: 12, weight: 36.4 lb, and hole pattern: SHA. Channel type is B22. These attributes deliver high rigidity, consistent load distribution, and excellent corrosion resistance in demanding environments.
Yes. The 316 stainless finish provides superior corrosion resistance suitable for data centers, coastal or humid facilities, and washdown environments. Its back-to-back welded design supports heavy equipment routes with reliable alignment, while the SHA pattern facilitates flexible mounting with common channel nuts and accessories used in data center infrastructure.
Certifications are listed as Not Applicable for this product. Despite the lack of formal certifications in the data, the component uses durable stainless steel 316 and proven B-Line design principles, which align with industry best practices for corrosion resistance and mechanical stability in commercial and industrial installations.
The stainless 316 finish minimizes corrosion-related maintenance and replacement costs in challenging environments, extending service life. The robust 12 gauge back-to-back channel reduces the need for frequent joint maintenance, while compatibility with Eaton accessories enables modular upgrades without replacing existing supports, delivering longer operational life and lower total cost of ownership.
