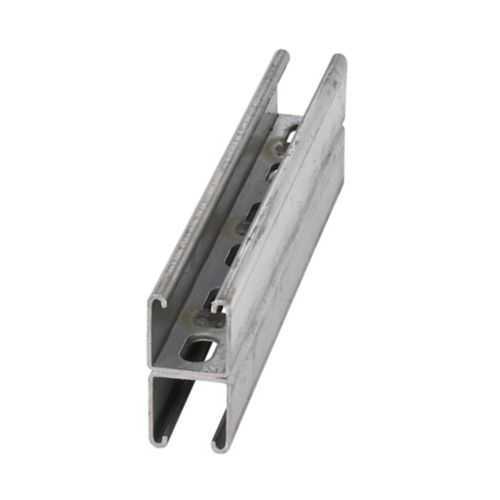

Eaton B22SHA-240GLV Strut Channel - 12 Gauge Back-to-Back
Part Number: B22SHA-240GLV
Quick Summary
The Eaton B22SHA-240GLV strut channel provides back-to-back welded support for electrical and equipment mounting across industrial facilities. It helps reduce installation time and simplify framing accuracy, addressing common field challenges in crowded plant spaces. Note that certifications such as CE, UL, or IP ratings are not listed for this part. The 12 gauge steel with a pre-galvanized finish delivers robust corrosion resistance, while SHA hole pattern and back-to-back welds support quick, compliant installations. The combination of compatibility with standard B-Line fittings and the long 240 inch length offers procurement and installation efficiency for professional electrical and industrial framing projects.
Product Information
Extended Description
B22SHA-240GLV Eaton: Eaton B-Line series strut back-to-back welded channel, 1.62" H x 240" L x 1.62" W, Steel, Pre-galvanized, SHA, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B22SHA-240GLV
UPC
781011034467
Product Length/Depth
240 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
3.2 lb
Certifications
Not Applicable
Channel type
B22
Hole pattern
SHA
Finish
Pre-galvanized
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B22SHA-240GLV
Dura-Green finish overview
Feature: Back-to-back welded channel design. Business impact: Improves overall frame integrity and load transfer, reducing rework and field errors. Application: Ideal for long-span supports in electrical rooms and equipment mounting areas. The welded back-to-back configuration enables cleaner, continuous support runs with fewer joints. Feature: Precise 1.62 in H x 1.62 in W cross-section. Business impact: Maintains a stable, uniform profile that simplifies alignment and installation. Application: Used in data centers and manufacturing floors where tight tolerances matter. Feature: 12 gauge steel with pre-galvanized finish. Business impact: Delivers durable corrosion resistance and long service life with lower maintenance costs. Application: Suitable for harsh environments in industrial facilities, utility spaces, and outdoor-rated installations. Feature: SHA hole pattern. Business impact: Aligns with standard mounting hardware, reducing drill time and ensuring consistent attachment. Application: Fastens accessories and supports with predictable geometry. Feature: 240 inch length. Business impact: Minimizes joints and assemblies, accelerating large-scale framing projects. Application: Ideal for uninterrupted spans in racks, enclosures, and support structures. Feature: Overall compatibility with B-Line fittings and accessories. Business impact: Simplifies procurement and stock management while enabling modular upgrades. Application: Supports scalable framing systems across electrical and mechanical installations. Throughout, this product delivers measurable efficiency gains, improved consistency, and reduced total cost of ownership for industrial framing projects.
Get a Quick Quote for a Eaton B22SHA-240GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B22SHA-240GLV?
Enquire Now
FAQs
The B22SHA-240GLV uses the SHA hole pattern compatible with Eaton B-Line fittings and accessories. Its back-to-back welded construction provides a continuous mounting surface, allowing straightforward alignment and fastener placement. For best results, pair with compatible nuts, bolts, and sleeves designed for 12 gauge steel to minimize installation time and ensure secure, resilient framing in electrical and mechanical installations.
Key specs include a 240 inch length, 1.62 inch height, 1.62 inch width, 12 gauge steel, and a pre-galvanized finish. The channel type is B22 with SHA hole pattern, and the product weight is approximately 3.2 pounds per piece. Catalog number is B22SHA-240GLV, and UPC is 781011034467. These details support precise planning and compatibility checks during procurement.
Yes. The B22SHA-240GLV is designed for electrical and equipment mounting, offering a robust 12 gauge steel framework with a pre-galvanized finish for corrosion resistance. Its SHA pattern and long 240 inch length support continuous runs, which are common in data centers, electrical rooms, and control areas, while maintaining compatibility with standard B-Line accessories.
According to the data available, certifications such as CE, UL, or IP ratings are not listed for this part. The value comes from its material quality (12 gauge steel) and finish (pre-galvanized), along with Eaton's established B-Line system compatibility, which supports reliable performance in typical industrial environments.
The pre-galvanized 12 gauge steel construction provides durable corrosion resistance, reducing maintenance needs in many environments. Its 240 inch length minimizes joints and fittings, cutting installation time and labor costs. Compatibility with a wide range of Eaton fittings enables modular upgrades, supporting scalable framing and longer service life with predictable performance.
