Eaton B22SHA-240HDG Strut Back-to-Back Welded Channel - 12 Gauge
Part Number: B22SHA-240HDG
Quick Summary
Eaton B22SHA-240HDG Strut back-to-back welded channel provides a robust support framework for electrical and mechanical installations in industrial facilities. Project teams often contend with corrosion, misalignment, and limited mounting flexibility that slow commissioning and raise maintenance costs. Certifications for this SKU are listed as Not Applicable, but the product relies on hot-dipped galvanized steel and 12 gauge construction to resist corrosion and manage loads. Aligned with Eaton’s B-Line strut system and the SHA hole pattern, it enables modular, scalable installations that reduce field adjustments and downtime, while matching industry practices. The design supports rapid integration with cable trays, brackets, and anchors, delivering predictable performance across manufacturing floors.
Product Information
Extended Description

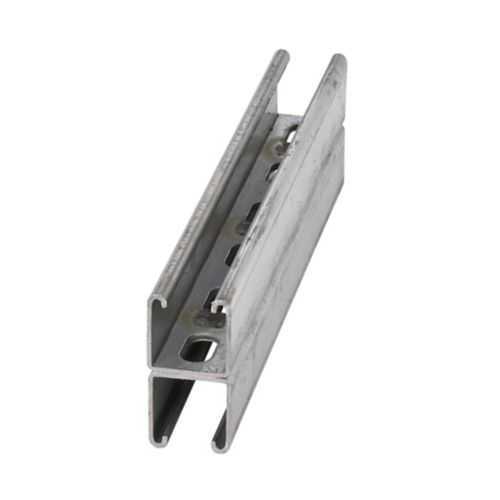

B22SHA-240HDG Eaton: Eaton B-Line series strut back-to-back welded channel, 1.62" H x 240" L x 1.62" W, Steel, Hot-dipped galvanized, SHA, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B22SHA-240HDG
UPC
781011841676
Product Length/Depth
12 in
Product Height
3.25 in
Product Width
1.625 in
Product Weight
3.42 lb
Certifications
Not Applicable
Channel type
B22
Hole pattern
SHA
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B22SHA-240HDG
Dura-Green finish overview
Hot-dipped galvanized steel provides superior corrosion resistance, delivering extended service life and lower maintenance costs in outdoor and damp environments. This translates to fewer field repairs and more reliable electrical and mechanical support in harsh industrial settings. The 12 gauge steel construction offers higher stiffness and load-bearing capacity, reducing deflection and enabling longer spans between supports, which cuts the number of required brackets and simplifies installation for conduit runs and equipment mounts. The back-to-back welded channel configuration increases overall rigidity and alignment accuracy, minimizing framing deviations during assembly and ensuring consistent line and level positioning in data centers, manufacturing floors, and utility rooms. The SHA hole pattern delivers adjustable attachment points along the channel, enabling flexible layouts and straightforward reconfigurations as systems evolve. Compatibility with the broader B-Line series ecosystem means a wide range of fittings and accessories are readily available, accelerating project timelines and preserving inventory efficiency. With a standard 12 in length and a compact footprint, this channel integrates smoothly with existing Eaton components, streamlining installation planning, material takeoffs, and on-site handling for faster commissioning.
Get a Quick Quote for a Eaton B22SHA-240HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B22SHA-240HDG?
Enquire Now
FAQs
Plan for compatible fasteners and brackets that fit the SHA hole pattern, use Eaton fittings from the Channel and Combinations catalog, and align joints with standard B-Line components to ensure stable, level framing across runs.
Yes. The hot-dipped galvanized finish provides corrosion resistance suitable for outdoor or damp environments, though consult site-specific conditions and ensure compatible weatherproof enclosures where required.
12 gauge steel offers enhanced stiffness and load-bearing performance compared to lighter gauges, reducing deflection. Exact loads depend on span, bracket spacing, and mounting hardware; consult Eaton’s specification sheet for precise values.
Compatible accessories include fittings and brackets from Eaton’s Channel and Combinations catalog that use the SHA hole pattern, enabling flexible attachments for conduits, cables, and equipment.
The SHA hole pattern provides multiple attachment points along the channel, enabling precise positioning and easy reconfiguration of supports without cutting or drilling вруч. This supports scalable layouts and future changes with minimal downtime.
