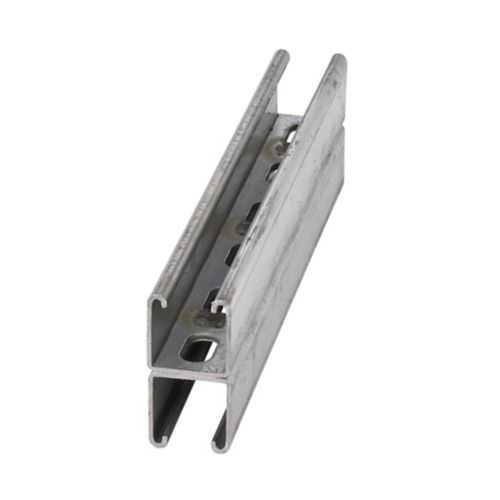

Eaton B22SHA-240PLN B-Line strut channel - 12 Gauge
Part Number: B22SHA-240PLN
Quick Summary
Eaton B22SHA-240PLN B-Line strut channel enables back-to-back mounting for electrical and mechanical assemblies. The challenge engineers face is delivering rigid support while preserving quick install times and component compatibility. Certifications: Not Applicable—CE, IP, and SIL ratings are not listed for this model; verify your project requirements. This plain‑finish, 12-gauge steel channel integrates with the broader B-Line system for durable, scalable support, reducing field fabrication. In practice, you gain faster installations, fewer part mismatches, and a predictable supply chain when sourcing compatible fittings and accessories for industrial racking and enclosure installations. Its back-to-back weld construction supports clean, space-efficient layouts in racking and enclosure applications.
Product Information
Extended Description
B22SHA-240PLN Eaton: Eaton B-Line series strut back-to-back welded channel, 1.62" H x 240" L x 1.62" W, Steel, Plain, SHA, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B22SHA-240PLN
UPC
781011034429
Product Length/Depth
12 in
Product Height
3.25 in
Product Width
1.625 in
Product Weight
3.42 lb
Certifications
Not Applicable
Channel type
B22
Hole pattern
SHA
Finish
Plain
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B22SHA-240PLN
Dura-Green finish overview
Feature: Back-to-back welded channel design enables simultaneous support for two mounting planes. Business Impact: Increases rigidity and reduces the need for additional brackets, cutting installation time and total hardware costs. Application: Ideal for compact electrical enclosures and dual-side mounting in control panels. Feature: 12 gauge plain steel construction provides structural strength. Business Impact: Supports heavy cables, components, and equipment with minimal deflection, lowering maintenance visits. Application: Suitable for industrial automation cabinets and heavy-duty wiring racks. Feature: 12 in length with 3.25 in height and 1.625 in width offers a compact, predictable footprint. Business Impact: Facilitates standardized runs and easy planning across large installations, improving material forecasting. Application: Used in modular installations with consistent spacing. Feature: SHA hole pattern enables alignment with standard fittings. Business Impact: Ensures fast assembler compatibility and plug‑and‑play upgrades. Application: Compatible with Eaton Channel and Combinations Catalog fittings for rapid system expansion. Feature: Plain finish simplifies integration with other B-Line components. Business Impact: Reduces coating/remediation steps and keeps costs down while preserving clean aesthetics. Application: Works with a wide range of accessories and mounting hardware in industrial environments. Feature: Channel type B22 and catalog pairing (B22SHA-240PLN) supports standard Eaton systems. Business Impact: Streamlines procurement, reduces part mismatch risk, and ensures supply chain consistency. Application: Practical for consistent stock management in maintenance-heavy facilities.
Get a Quick Quote for a Eaton B22SHA-240PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B22SHA-240PLN?
Enquire Now
FAQs
This model uses the SHA hole pattern which aligns with standard Eaton B-Line fittings. Start by confirming the two mounting planes and then attach compatible brackets, clamps, or connectors on each side. Use the back-to-back welded channel to create a rigid, space-efficient framework, ensuring alignment with the grid and enclosure faces before tightening hardware.
The B22SHA-240PLN is 12 in long, 3.25 in high, and 1.625 in wide, with a weight of 3.42 lb and a 12 gauge steel body. It features a plain finish and SHA hole pattern for standard fittings. While exact load ratings depend on assembly geometry, the 12 gauge steel provides robust rigidity for typical electrical mounting and support tasks.
The B22SHA-240PLN supports both vertical and horizontal applications when paired with compatible fittings from the B-Line catalog. Its back-to-back welded design offers versatile mounting options, allowing flexible configurations for racks, enclosures, and panel supports. Always verify load paths and connection points to optimize stability for the chosen orientation.
Per the datasheet, certifications for this model are Not Applicable. CE, IP, and SIL ratings are not listed. For projects requiring specific regulatory compliance, cross-check with your internal standards or contact Eaton to confirm any project-specific certifications or alternative finishes that may meet your requirements.
Using the 12-gauge plain steel B-Line strut channel delivers long-term durability with minimal maintenance due to its rigid construction and standardization. ROI improves through faster installation, reduced part variety, and easier future upgrades with compatible Eaton fittings. The back-to-back welded design also lowers field fabrication costs by enabling modular, scalable layouts.
