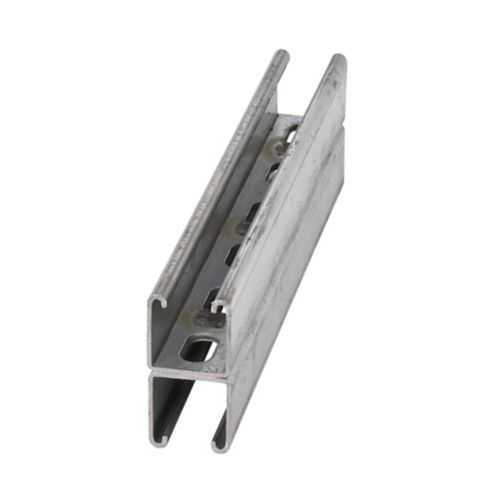

Eaton B22SHA-240SS4 Strut Channel - Stainless 304, 12 Gauge
Part Number: B22SHA-240SS4
Quick Summary
The Eaton B22SHA-240SS4 strut channel provides back-to-back welded support for electrical and mechanical installations in commercial and industrial facilities. This design helps address installation challenges like misalignment and joint fatigue over long spans. While certifications are listed as Not Applicable for this part, the stainless steel 304 finish and 12-gauge construction deliver proven corrosion resistance and load resilience in demanding environments. Its 240 in length and 1.62 in by 1.62 in cross-section support extensive run capabilities, reducing connection points and simplifies downstream accessory attachment. For teams seeking durable, code-conscious infrastructure with Eaton’s B-Line ecosystem, this channel offers a reliable backbone for rack, ducting, and support systems projects.
Product Information
Extended Description
B22SHA-240SS4 Eaton: Eaton B-Line series strut back-to-back welded channel, 1.62" H x 240" L x 1.62" W, Steel, Stainless steel type 304, SHA, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B22SHA-240SS4
UPC
781011841522
Product Length/Depth
240 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
72.8 lb
Certifications
Not Applicable
Channel type
B22
Hole pattern
SHA
Finish
Stainless steel type 304
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B22SHA-240SS4
Dura-Green finish overview
Feature: Back-to-back welded channel design provides continuous support with improved rigidity. Business Impact: Reduces joint failures and simplifies long-span installations, cutting maintenance costs and downtime. Application: Ideal for electrical trunking and mechanical support in data centers and manufacturing floors. Feature: Stainless steel type 304 finish offers superior corrosion resistance. Business Impact: Extends service life in damp or washdown environments, lowering replacement frequency and lifecycle costs. Application: Outdoor enclosures, wet process areas, or coastal facilities. Feature: 240 inch length with 72.8 lb weight and 1.62 inch by 1.62 inch cross-section. Business Impact: Fewer field splices, easier routing of cables and conduits, and predictable handling during installation. Application: Large-scale electrical and structural supports in industrial plants. Feature: 12 gauge material gauge ensures higher load tolerance. Business Impact: Supports heavier equipment and more demanding mounting requirements, reducing reinforcement needs. Application: Heavy-duty racks, supports, and bridging in mechanical systems. Feature: SHA hole pattern compatibility for standard fasteners. Business Impact: Streamlines attachment with common hardware, accelerating assembly. Application: General purpose mounting across Eaton B-Line strut channel families. Feature: Comprehensive documentation and compatibility with the Channel and Combinations Catalog Section and specification sheets. Business Impact: Improves procurement accuracy and regulatory compliance, accelerating project approvals. Application: Design-bid-build and turnkey installations where traceability matters.
Get a Quick Quote for a Eaton B22SHA-240SS4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B22SHA-240SS4?
Enquire Now
FAQs
Plan for a 240 inch run with SHA hole pattern compatibility and use Eaton B-Line accessories for a seamless fit. The back-to-back welded design reduces joint points, while the 1.62 by 1.62 inch profile keeps routing clean. Ensure hardware matches stainless 304 finish to maintain corrosion resistance.
Its stainless steel type 304 finish provides excellent corrosion resistance, helping extend service life in damp or washdown areas. For outdoor exposure, pair with compatible fasteners and enclosure components designed for stainless steel systems.
Yes, the combination of 12 gauge stainless steel and a 240 inch length supports significant mounting requirements with fewer field joints. For exact load ratings, consult Eaton’s specification sheet and engineering datasheets to verify design loads for your application.
You can access the Eaton specification sheet and the Channel and Combinations Catalog Section from the provided downloads, which detail installation guidance, compatibility, and performance data.
The key differentiators are stainless steel type 304 finish and 12 gauge construction, offering superior corrosion resistance and durability for longer lifecycles in demanding environments, along with the SHA hole pattern for versatile mounting options.
